Wire Industry Machines
Wire Straightening and Cut off Machine
A six-model PWS range for automatically straightening and cutting 1.5–20 mm wire into controlled lengths for fabrication and component production.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

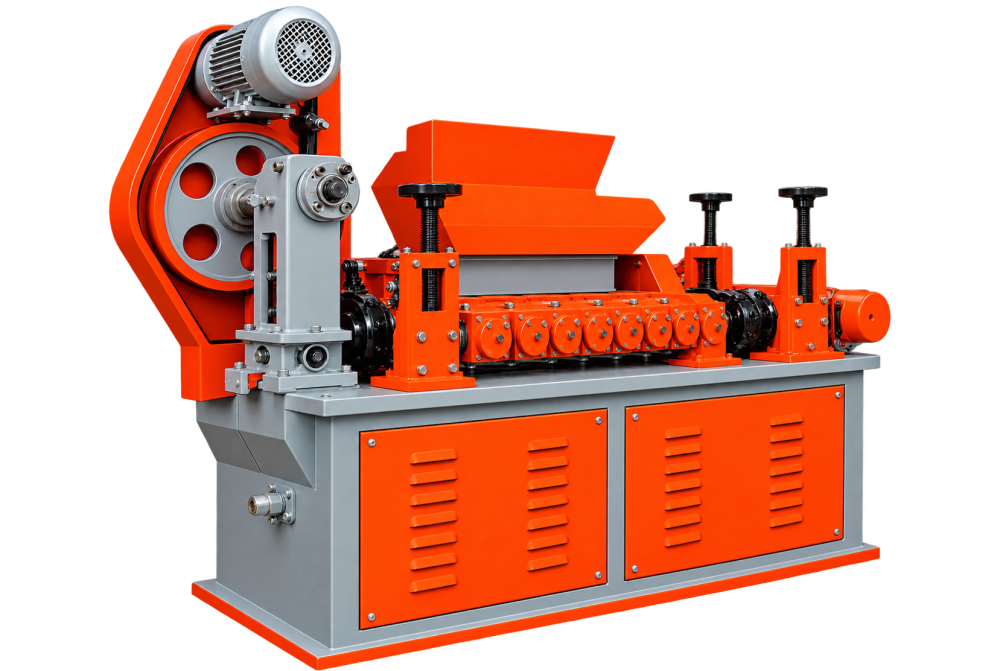

Wire Straightening and Cut off Machine
The Wire Straightening and Cut Off Machine takes wire from coil or feed stock, removes curvature through an adjustable straightening system, measures the required length, and cuts repeat blanks automatically.
Working Principle
Feed rollers draw wire through straightening elements. A length-control arrangement triggers the cutter at the set position, after which the next piece advances. Roller pressure and straightener adjustment must suit the wire.
Key Production Capability
PWS-04 through PWS-16 cover listed wire ranges from 1.5–4 mm up to 14–20 mm. Standard automatic lengths range from 28–1000 mm on smaller models to 100–1500 mm on PWS-16, with longer lengths available by configuration.
Industrial Applications
Cut straight wire blanks serve fasteners, welding products, grills, racks, reinforcement work, fabricated components, household goods, and further bending or forming processes.
Why Choose This Machine?
Combining straightening, measured feeding, and cutting can reduce manual handling and support repeat length and straightness across batches.
Selection and Operating Considerations
Confirm wire material, diameter range, coil condition, tensile strength, straightness tolerance, cut length, end quality, rate, collection, and floor-space needs.
Pathak Industries supplies this machine with application-based guidance. Confirm the selected model, wire specification, tooling, utilities, guarding, and required output against actual production samples before ordering.
Specifications
Technical Specifications
| MODEL | PWS -04 | PWS - 06 | PWS -08 | PWS - 10 | PWS - 12 | PWS -16 |
| In Thickness of Wire mm | 1.5 to 4mm | 2 to 6mm | 2.5 to 8mm | 3 to 10mm | 4 to 12mm | 14 to 20mm |
| In Length of Wire to be Cut automatically mm | 28 to 1000 mm Length can be increased as per requirement. |
28 to 1000 mm Length can be increased as per requirement. |
40 to 1000 mm Length can be increased as per requirement. |
45 to 1000 mm Length can be increased as per requirement. |
50 to 1000 mm Length can be increased as per requirement. |
100 to 1500 mm Length can be increased as per requirement. |
| Feeding Capacity Per min. | 90' Feet | 90' Feet | 90' Feet | 90' Feet | 90' Feet | 40' Feet |
| Power of Motor H.P | 2 HP | 3 HP | 5 HP | 5 HP | 10 HP | 3 + 25 HP |
| Required R.P.M | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Approx Weight in kg . Net/ Cross | 300 / 425 | 380 / 550 | 480 / 650 | 550 / 700 | 600 / 750 | 2200 /2750 |
| Floor Space required | 3' X 8' Feet | 3' x 12' Feet | 4' x 12' Feet | 4' x 12' Feet | 5' x 12' Feet | 8' X 28' Feet |
FAQs
Frequently Asked Questions
What is the Wire Straightening and Cut off Machine used for?
It converts coiled or curved wire into straight, measured blanks for fabrication, fasteners, racks, reinforcement, and further forming.
How does the Wire Straightening and Cut off Machine work?
Driven rollers feed wire through straightening elements, a length system measures the piece, and a cutter separates it automatically.
What is the available working range of the Wire Straightening and Cut off Machine?
The six-model range covers 1.5–20 mm wire, with standard cut ranges beginning at 28 mm and extending to 1500 mm by model.
Which industries use the Wire Straightening and Cut off Machine?
Wire-product manufacturers, fabricators, reinforcement processors, welding-product units, and component plants use it.
What should be checked before selecting the Wire Straightening and Cut off Machine?
Confirm wire material, coil and diameter, tensile strength, cut range, tolerance, straightness, speed, collection, power, and layout.
How should the Wire Straightening and Cut off Machine be maintained?
Clean and inspect feed rollers, straightening elements, cutter, length mechanism, bearings, drive, lubrication, guards, and alignment.
