Scrap Bailing Machines

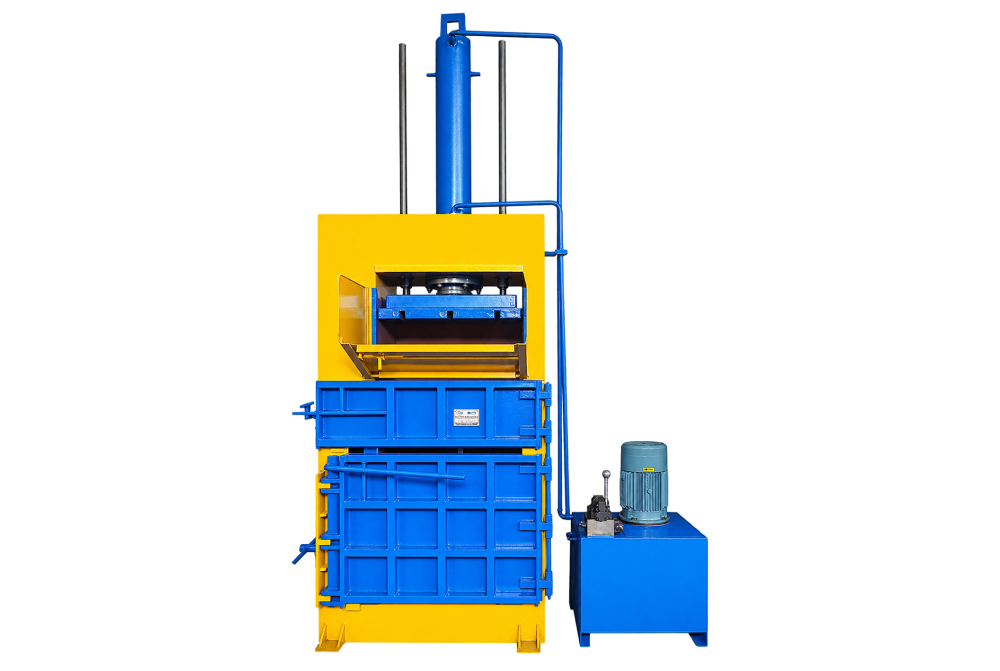

Vertical Scrap Baling Press
The Vertical Scrap Baling Press handles metal, cardboard, textile, plastic, or title-specific recyclable feed through a layout intended for compressing loose recyclable material into manageable bales. Typical users include recycling yards, recovery facilities, mills, and waste processors, where contained compaction for storage and transport is valuable. The vertical arrangement affects loading, support, and access to the work.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Vertical Scrap Baling Press
Machine Purpose
The Vertical Scrap Baling Press provides a dedicated method of compressing loose recyclable material into manageable bales. Rather than acting as unrelated general equipment, it brings the working elements together around metal, cardboard, textile, plastic, or title-specific recyclable feed.
How It Works
In operation, it loads material into a chamber and applies ram pressure. The practical focus is contained compaction for storage and transport. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. The vertical arrangement affects loading, support, and access to the work.
Industrial Applications
Natural settings include recycling yards, recovery facilities, mills, and waste processors. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
When comparing versions of the Vertical Scrap Baling Press, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PVB 25 | PVB 40 | PVB 50 | PVB 15T |
| Capacity | 25 Ton Pressure Capacity.Single Chamber Single Cylinder Baler Machine | 40 Ton Pressure Capacity.Single Chamber Single Cylinder Baler Machine | 50 Ton Pressure Capacity.Single Chamber Single Cylinder Baler Machine | - |
| Bale Size | 30(L)x26(W) in inch | 34(L)x26(W) in inch | 34(L)x26(W) in inch | 12"x12" |
| Bale Weight | Plastic Bottle 50 to 60 kg,Cartoon Box 100 kg | Plastic Bottle 100 to 130 kg/Cartoon,Paper 100 to 150 kg | Plastic Bottle 150 to 160 kg,Cartoon,Paper 150 to 200 kg | 35 kg to 50 kg |
| Chamber Size | 30(L)x26(W)x45(H) in inch | 34(L)x26(W)x52(H) in inch | 34(L)x26(W)x62(H) in inch | 12"x12"x45" |
| No of Cylinder | 1 Nos. | 1 Nos. | 1 Nos. | - |
| No. of Tie | 3 Nos. | 3 Nos. | 3 Nos. | - |
| No. of Door | 2 Nos. | 2 Nos. | 2 Nos. | - |
| Cylinder Size | 140 (Bore)x160 (OD)x90 (Ram)x1000 (Stroke) mm | 160 (Bore)x195 (OD)x105 (Ram)x1200 (Stroke) mm | 170 (Bore)x205 (OD)x110 (Ram)x1300 (Stroke) mm | - |
| Bale Eject | Swing Plate | Swing Plate with Screw Systems | Swing Plate with Screw Systems | - |
| Oil Tank Capacity | 80 lit. | 200 lit. | 200 lit. | - |
| Production Rates | 10 to 15 minutes | 20 to 25 minutes | 20 to 25 minutes | - |
| Hydraulic System | Gear Pump Systems | Vane Pump Systems | Double Pump Systems | - |
| Day Light Gap | 45 inch | 52 inch | 62 inch | - |
| Operation | Hand Levers Operate Systems | Hand Levers Operate Systems | Hand Levers Operate Systems | Manual/Semi-Auto |
| Electric Motor Make ISI | 5 HP Motor,3 Phase,1440 RPM,50 HZ | 10 HP Motor,3 Phase,1440 RPM,50 HZ | 10 HP Motor,3 Phase,1440 RPM,50 HZ | 2 HP Motor |
| Overall Dimension | 70(L)x50(W)x120(H) in inch | 90(L)x36(W)x130(H) in inch | 90(L)x36(W)x150(H) in inch | - |
| Body Plate | 8 mm,10 mm,25 mm | 8 mm,12 mm,30 mm | 8 mm,12 mm,30 mm | - |
FAQs
Frequently Asked Questions
Which operation is the Vertical Scrap Baling Press designed to perform?
The Vertical Scrap Baling Press is intended for compressing loose recyclable material into manageable bales. It is arranged around metal, cardboard, textile, plastic, or title-specific recyclable feed, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Vertical Scrap Baling Press work?
The machine loads material into a chamber and applies ram pressure. Its contained compaction for storage and transport supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Vertical Scrap Baling Press?
It is primarily associated with metal, cardboard, textile, plastic, or title-specific recyclable feed. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Vertical Scrap Baling Press?
Typical users include recycling yards, recovery facilities, mills, and waste processors. In these settings, the Vertical Scrap Baling Press may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Vertical Scrap Baling Press models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Vertical Scrap Baling Press require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Vertical Scrap Baling Press vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Vertical Scrap Baling Press.
When is vertical arrangement useful on a Vertical Scrap Baling Press?
The vertical arrangement affects loading, support, and access to the work. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
