Milling Machines

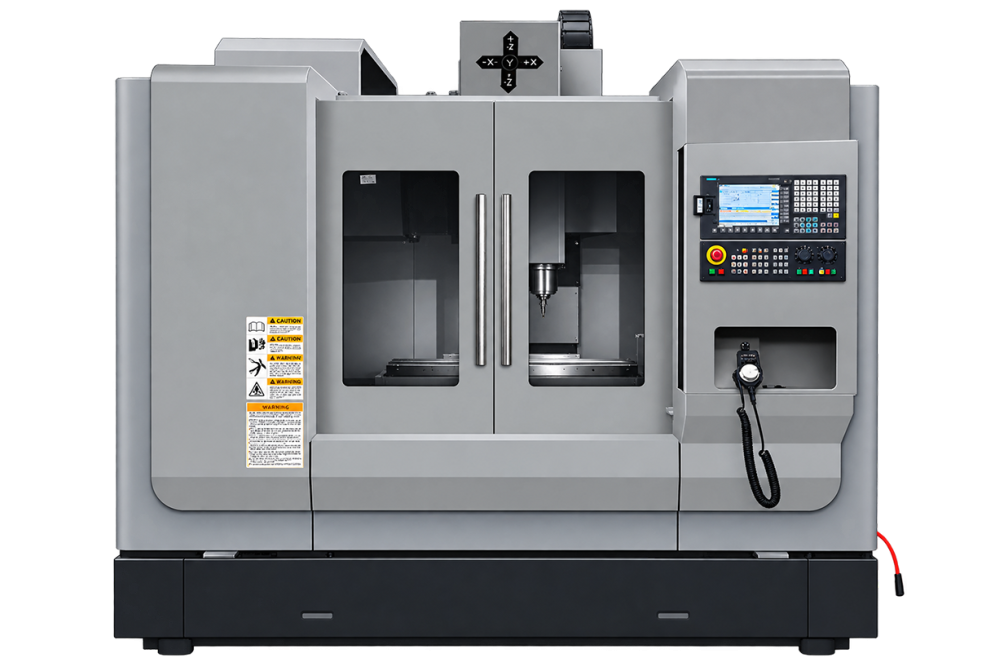

Vertical Machining Center
For work involving components and materials suitable for the named process, the Vertical Machining Center offers a process-specific solution. It controls the working tool and supports the job through its cycle, with a task-focused layout built around its primary operation. The vertical arrangement affects loading, support, and access to the work.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Vertical Machining Center
Machine Purpose
For facilities needing performing the specialised operation identified by its title, the Vertical Machining Center offers a process-specific workstation. Its arrangement supports components and materials suitable for the named process while keeping the important operating area accessible.
Industrial Applications
Likely users are found in production workshops, maintenance departments, and engineering facilities. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
A typical cycle begins with locating the job correctly, after which the machine controls the working tool and supports the job through its cycle. Its a task-focused layout built around its primary operation supports repeat work without replacing the need for trained operation. The vertical arrangement affects loading, support, and access to the work.
Selection Considerations
When comparing versions of the Vertical Machining Center, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model Name | TLPVMC 600L | TLPVMC 650L | TLPVMC 850L | TLPVMC 855L | TLPVMC 1050L | TLPVMC 1160L | TLPVMC 1370L | TLPVMC 1580L |
| Worktable Size | 800x400 mm | 900x400 mm | 1000x500 mm | 1000x550 mm | 1000x500 mm | 1200x600 mm | 1400x700 mm | 1600x800 mm |
| T-Slots Size | 3-14x100 mm | 5-16x75 mm | 5-18x90 mm | 5-18x90 mm | 5-18x90 mm | 5-18x100 mm | 5-18x110 mm | 5-22x135 mm |
| X/Y/Z Axis Travel | 600/400/450 mm | 650/450/500 mm | 800/500/500 mm | 800/550/500 mm | 1000/500/500 mm | 1100/600/600 mm | 1300/700/700 mm | 1500/800/700 mm |
| Distance From Spindle Center to Column | 550 mm | 500 mm | 550 mm | 595 mm | 550 mm | 650 mm | 750 mm | 855 mm |
| Distance From Spindle Nose to Worktable Surface | 100-550 mm | 120-620 mm | 150-650 mm | 120-670 mm | 120-620 mm | 120-720 mm | 110-810 mm | 190-890 mm |
| Spindle Taper | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT40/BT50 |
| Spindle Power | 5.5 K.W. | 5.5 K.W./7.5 K.W. | 7.5 K.W. | 7.5 K.W. | 7.5 K.W. | 11 K.W. | 11 K.W. | 11 K.W./15 K.W. |
| Max. Spindle Speed | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM |
| Max. Feed Speed | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min | 10 m/min |
| Rapid Feed Speed (X/Y/Z) | 30/30/25 m/min | 20/20/12 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min | 24/24/20 m/min |
| Tool Magazine Capacity | 12T/16T (optional) | 16T | 24T | 24T | 24T | 24T | 24T | 24T |
| Max. Length of Tool | 300 mm | 250 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Tool Change Time | 7 S./2.5 S. | 7 S. | 1.5 S. | 1.5 S. | 1.5 S. | 1.5 S. | 1.5 S. | 1.5 S. |
| +- Positioning Accuracy | +- 0.005 mm | +- 0.007 mm | +- 0.005 mm | +- 0.005 mm | +- 0.005 mm | +- 0.005 mm | +- 0.008 mm | +- 0.001 mm |
| +- Re-Positioning Accracy | +- 0.003 mm | +- 0.005 mm | +- 0.003 mm | +- 0.003 mm | +- 0.003 mm | +- 0.003 mm | +- 0.003 mm | +- 0.008 mm |
| Machine Dimension (LxWxH) | 1900x1700x2240 mm | 2300x2200x2400 mm | 2750x2300x2300 mm | 2800x2300x2300 mm | 2850x2300x2300 mm | 3350x2300x2550 mm | 3200x2540x2600 mm | 3800x2720x3610 mm |
| Max. Loading of Worktable | 300 kg | 400 kg | 500 kg | 600 kg | 500 kg | 800 kg | 1000 kg | 1500 kg |
| Machine Weight | 3500 kg | 3800 kg | 5300 kg | 5500 kg | 5400 kg | 6200 kg | 8200 kg | 13000 kg |
Applications
Applications
Automotive
Aerospace
Tool and Die Making
FAQs
Frequently Asked Questions
What is a Vertical Machining Center used for?
The Vertical Machining Center is intended for performing the specialised operation identified by its title. It is arranged around components and materials suitable for the named process, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Vertical Machining Center?
The machine controls the working tool and supports the job through its cycle. Its a task-focused layout built around its primary operation supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Vertical Machining Center?
It is primarily associated with components and materials suitable for the named process. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Vertical Machining Center?
Typical users include production workshops, maintenance departments, and engineering facilities. In these settings, the Vertical Machining Center may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Vertical Machining Center?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Vertical Machining Center be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Vertical Machining Center price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Vertical Machining Center.
When is vertical arrangement useful on a Vertical Machining Center?
The vertical arrangement affects loading, support, and access to the work. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
