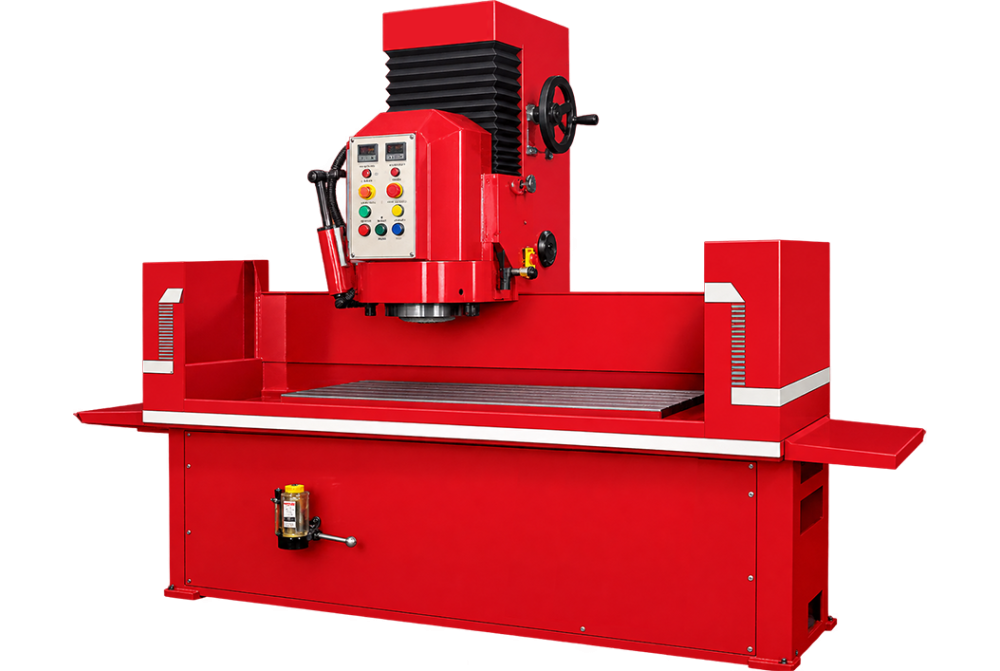

Vertical Head Surface Grinder
The Vertical Head Surface Grinder is designed for producing flat, smooth component surfaces. Its stable table movement and controlled wheel engagement suits tool rooms, die shops, repair facilities, and precision plants. The vertical arrangement affects loading, support, and access to the work.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Vertical Head Surface Grinder
Machine Purpose
Used for producing flat, smooth component surfaces, the Vertical Head Surface Grinder addresses a distinct stage of industrial work. It accommodates plates, dies, tooling, and machine parts and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Natural settings include tool rooms, die shops, repair facilities, and precision plants. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
Its cycle is based on the way it passes supported work beneath a rotating abrasive wheel. The design therefore prioritises stable table movement and controlled wheel engagement; actual output still depends on the chosen model, tool, workpiece, and operating method. The vertical arrangement affects loading, support, and access to the work.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Vertical Head Surface Grinder.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| TECHNICAL SPECIFICATION | PVSG-1300 | PVSG-1500 |
| Max.Automatic Table Traverse | 1300 mm (51'') | 1500 mm (59'') |
| Head Vertical Traverse | 600 mm (24'') | 700 mm (28'') |
| Max.Grinding Width | 350 mm (14'') | 350 mm (14'') |
| Max.Grinding Length | 1000 mm (40'') | 1200 mm (47'') |
| Distance Between Table/ Grinding Wheel Min./max. | 0-600 mm (0-24'') | 0-700 mm (0-28'') |
| Distance From Column To Table Center | 350 mm (14'') | 350 mm (14'') |
| Segment Wheel Dia | 350 mm (14'') | 350 mm (14'') |
| Grinding Spindle Rotating Speed | 1500 rpm | 1500 rpm |
| Min./max.Table Feed Speed (Steplessly Variable) P/m | 0.2000 mm/ min | 0.2000 mm/min |
| Grinding Spindle Shaft Motor | 5.0 HP | 5.0 HP |
| Head Quick Feed Motor | 0.75 HP | 0.5 HP |
| Hydraulic System Motor | 1.0 HP | 1.0 HP |
| Electric Coolant Pump Motor | 0.12 HP | 0.12 HP |
| Length of Machine | 2400 mm (95'') | 2600 mm (103'') |
| Width of The Machine | 1200 mm (47.25'') | 1200 mm (47.25'') |
| Height of The Machine | 1900 mm (75'') | 2050 mm (81'') |
| Work Space Required (LXW) | 2800 x 1500 mm (110''x 59'') | 3100 x 1500 mm (122''x 59'') |
| Work Height Required | 2050 mm (81'') | 2150 mm (85'') |
| Net Weight | 1500 kgs. (approx) | 1850 kgs. (approx) |
| Gross Weight | 2500 kgs. (approx) | 2850 kgs. (approx) |
| Shipping Volume | 7M | 8M |
FAQs
Frequently Asked Questions
What is a Vertical Head Surface Grinder used for?
The Vertical Head Surface Grinder is intended for producing flat, smooth component surfaces. It is arranged around plates, dies, tooling, and machine parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Vertical Head Surface Grinder?
The machine passes supported work beneath a rotating abrasive wheel. Its stable table movement and controlled wheel engagement supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Vertical Head Surface Grinder?
It is primarily associated with plates, dies, tooling, and machine parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Vertical Head Surface Grinder?
Typical users include tool rooms, die shops, repair facilities, and precision plants. In these settings, the Vertical Head Surface Grinder may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Vertical Head Surface Grinder?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Vertical Head Surface Grinder be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Vertical Head Surface Grinder price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Vertical Head Surface Grinder.
When is vertical arrangement useful on a Vertical Head Surface Grinder?
The vertical arrangement affects loading, support, and access to the work. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
