Automobile Garage Machines

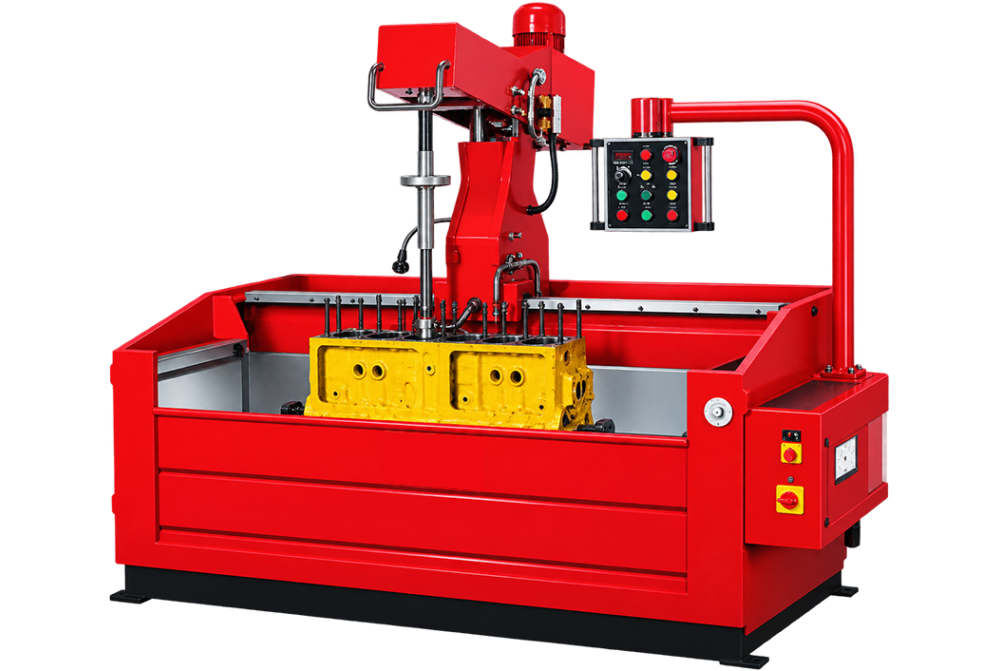

Vertical Cylinder Honing Machine
The Vertical Cylinder Honing Machine handles engine cylinders, hydraulic bores, and tubular surfaces through a layout intended for refining bore geometry and internal surface finish. It moves expanding abrasive stones through the lubricated bore, with controlled abrasive contact throughout the bore. The vertical arrangement affects loading, support, and access to the work.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Vertical Cylinder Honing Machine
Machine Purpose
The Vertical Cylinder Honing Machine is a purpose-built unit for refining bore geometry and internal surface finish. Its layout is organised around engine cylinders, hydraulic bores, and tubular surfaces, making it relevant when this operation must be completed in a controlled sequence.
How It Works
A typical cycle begins with locating the job correctly, after which the machine moves expanding abrasive stones through the lubricated bore. Its controlled abrasive contact throughout the bore supports repeat work without replacing the need for trained operation. The vertical arrangement affects loading, support, and access to the work.
Industrial Applications
Likely users are found in engine rebuilding, hydraulic repair, and component finishing. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Machines within automobile garage machines can differ in arrangement and capability. The required Vertical Cylinder Honing Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | ACH 500 |
| Max Honing Capacity in Diameter (Standard Heads) | 200mm |
| Max Honing Capacity in Diameter (With Extra Heads) | 300mm |
| Min Honing Capacity in Diameter | 30mm |
| Honing Stroke | Maximum - 500mm, Minimum - 50 mm |
| Max Block Length | 1400 mm |
| Max.Block Width | 550 mm |
| Max Block Height | 600 mm |
| Spindle Speed (Variable) | 10 - 300 rpm |
| Reciprocal Speed | 1 - 20 m/min |
| Honing Table Traverse | 1300 mm |
| Honing Head Traverse, Crosswise | 50 mm |
| Max Distance of Spindle Nose To Table Top | 1050 mm |
| Distance From Spindle Center To Column Front | 450 mm max |
| Table Size | 1500 x 500 mm |
| Motor For Rotation | 2 hp AC drive |
| Motor For Hydydraulic Stroke | 1.5 hp |
| Motor For Coolant System | 0.25 hp |
| Net Weight (Approx) | 1200 kg |
| Shipping Weight (Approx) | 1500 kg |
| Shipping Dimensions (LxWxH) | 2450x1550x2225 mm |
| - | 96.5''x61''x88.75''inches |
| Shipping Volume | 8.5 m3 |
FAQs
Frequently Asked Questions
What does a Vertical Cylinder Honing Machine do?
The Vertical Cylinder Honing Machine is intended for refining bore geometry and internal surface finish. It is arranged around engine cylinders, hydraulic bores, and tubular surfaces, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Vertical Cylinder Honing Machine complete its working cycle?
The machine moves expanding abrasive stones through the lubricated bore. Its controlled abrasive contact throughout the bore supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Vertical Cylinder Honing Machine?
It is primarily associated with engine cylinders, hydraulic bores, and tubular surfaces. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Vertical Cylinder Honing Machine?
Typical users include engine rebuilding, hydraulic repair, and component finishing. In these settings, the Vertical Cylinder Honing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Vertical Cylinder Honing Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Vertical Cylinder Honing Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Vertical Cylinder Honing Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Vertical Cylinder Honing Machine.
When is vertical arrangement useful on a Vertical Cylinder Honing Machine?
The vertical arrangement affects loading, support, and access to the work. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
