Automobile Garage Machines

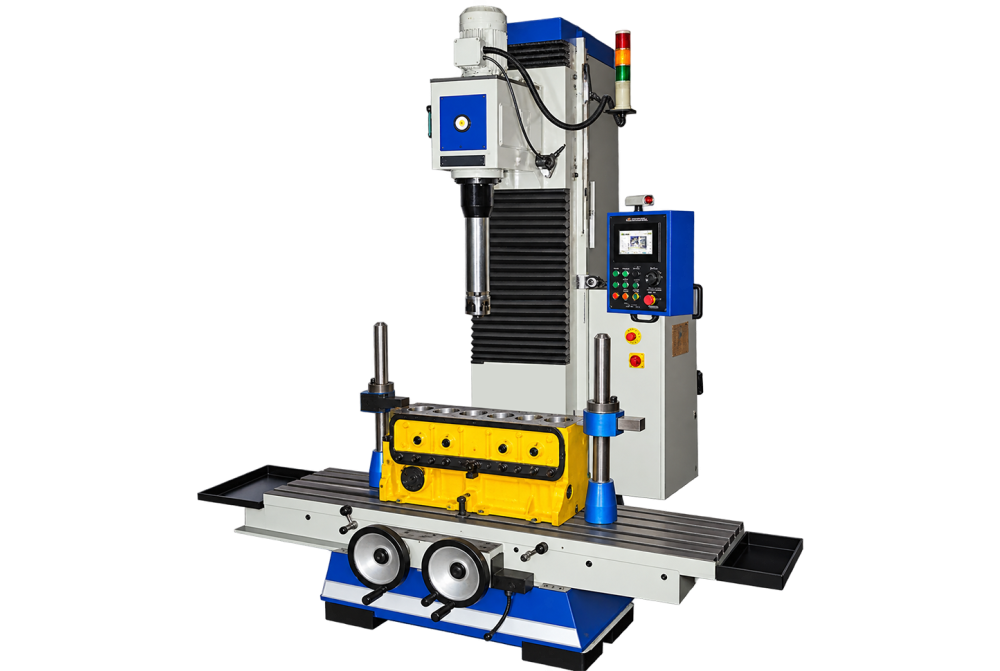

Vertical Cylinder Fine Boring Machine
The Vertical Cylinder Fine Boring Machine handles castings, housings, cylinders, and machine parts through a layout intended for enlarging and correcting existing holes. It positions a boring tool accurately within the supported component, with rigid spindle guidance for internal machining. The vertical arrangement affects loading, support, and access to the work.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Vertical Cylinder Fine Boring Machine
Machine Purpose
The Vertical Cylinder Fine Boring Machine is a purpose-built unit for enlarging and correcting existing holes. Its layout is organised around castings, housings, cylinders, and machine parts, making it relevant when this operation must be completed in a controlled sequence.
How It Works
A typical cycle begins with locating the job correctly, after which the machine positions a boring tool accurately within the supported component. Its rigid spindle guidance for internal machining supports repeat work without replacing the need for trained operation. The vertical arrangement affects loading, support, and access to the work.
Industrial Applications
Natural settings include machine shops, engine repair, and heavy maintenance. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Machines within automobile garage machines can differ in arrangement and capability. The required Vertical Cylinder Fine Boring Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | PCFBM 2500 | PCFBM 2200 | PCFBM 1500V | PCFBM 1500V | PCFBM 1200V | PCFBM 1200V |
| Boring Capacity | 62-265 MM | 62-265 MM | 48-220 MM | 48-220 MM | 62-135 MM | 62-135 MM |
| Boring Capacity With Extra Spindle |
-
|
38-350 MM | 38-310 MM | 38-310 MM | 38-190 MM | 38-190 MM |
| Milling Length | 2300 MM | 1800 MM | 1350 MM |
-
|
1250 MM |
-
|
| Milling Width | 400 MM | 400 MM | 350 MM |
-
|
350 MM |
-
|
| Maximum Boring Head Travel | 850 MM | 850 MM | 700 MM | 700 MM | 600 MM | 600 MM |
| Maximum Distance Head To Table | 1500 MM | 1500 MM | 1340 MM | 1340 MM | 1300 MM | 1300 MM |
| Maximum Distance Between Outer Cylinder Center | 2500 MM | 1800 MM | 1200 MM | 1200 MM | 900 MM | 900 MM |
| Max Work Piece on Table |
-
|
2500 KG | 1000 KG | 1000 KG | 750 KG | 750 KG |
| Spindle Speed Motor | 2.2 KW / 3 HP | 2.2 KW / 3 HP -1440 RPM | 1.5 KW / 2 HP | 1.5 KW / 2 HP | 1.5 KW / 2 HP | 1.5 KW / 2 HP |
| Motor Rapid & Feed |
-
|
0.4 KW Servo Control Motor | 0.37 kw / 0.5HP | 0.37 kw / 0.5HP | 0.37 kw / 0.5HP | 0.37 kw / 0.5HP |
| Motor Table Traverse Longitudinal | 2700 MM | 0.37 kw / 0.5HP | 0.37 kw / 0.5HP |
-
|
0.37 kw / 0.5HP |
-
|
| Spindle Speeds | 50-750 RPM | 50 TO 750 (Infinitely Variable) |
50 TO 750 (Infinitely Variable) |
(Infinitly Variable) 50 TO 750 RPM |
(Infinitly Variable) 50 TO 750 RPM |
(Infinitly Variable) 50 TO 750 RPM |
| Spindle Feeds |
-
|
10 TO 100 MM / MIN | 12 - 100 MM / MIN | 12 - 100 MM / MIN | 12 - 100 MM / MIN | 12 - 100 MM / MIN |
| Maximum Distance From Spindle Center To Column | 500 MM | 500 MM | 410 MM | 410 MM | 360 MM (14.17'') | 360 MM |
| Working Table Size (L X W) | 2500 X 600 MM | 2200 MM X 600 MM | 1500 X 450 MM | 1500 X 450 MM | 1200 X 360 MM | 1200 X 360 MM |
| Table Traverse - Longitudinal | 2700 MM | 2050 MM | 1850 MM | 1350 MM | 1300 MM | 850 MM |
| Table Traverse - Cross Wise | 150 MM | 150 MM | 120 MM | 120 MM | 75 MM | 75 MM |
| Length of The Machine | 3300 MM | 3300 MM | 2800 MM | 2500 MM | 2200 MM | 1900 MM |
| Width of The Machine | 1800 MM | 1800 MM | 1440 MM | 1420 MM | 1300 MM | 1300 MM |
| Height of The Machine | 3050 MM | 3050 MM | 2525 MM | 2525 MM | 2440 MM | 2440 MM |
| Work Space Required (L X W) | 4500 X 1850 MM | 4500 X 1850 MM | 4050 X 1520 MM | 4050 X 1520 MM | 2880 X 1400 MM | 2880 X 1400 MM |
| Net Weight | 5000KGS | 4800 KGS | 3500 KGS | 3000 KGS | 2650 KGS | 2500 KGS |
| Cross Weight | 6000KGS | 5800 KGS | 4000 KGS | 3500 KGS | 3300 KGS | 3200 KGS |
| Shipping Volume | 15m3 | 15m3 | 9.5M3 | 9 M3 | 9 M3 | 7M3 |
FAQs
Frequently Asked Questions
Which operation is the Vertical Cylinder Fine Boring Machine designed to perform?
The Vertical Cylinder Fine Boring Machine is intended for enlarging and correcting existing holes. It is arranged around castings, housings, cylinders, and machine parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Vertical Cylinder Fine Boring Machine work?
The machine positions a boring tool accurately within the supported component. Its rigid spindle guidance for internal machining supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Vertical Cylinder Fine Boring Machine?
It is primarily associated with castings, housings, cylinders, and machine parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Vertical Cylinder Fine Boring Machine?
Typical users include machine shops, engine repair, and heavy maintenance. In these settings, the Vertical Cylinder Fine Boring Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Vertical Cylinder Fine Boring Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Vertical Cylinder Fine Boring Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Vertical Cylinder Fine Boring Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Vertical Cylinder Fine Boring Machine.
What is the benefit of vertical arrangement on this Vertical Cylinder Fine Boring Machine?
The vertical arrangement affects loading, support, and access to the work. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
