Utensil Riveting Machine
For work involving plates, linings, utensils, and title-specific assemblies, the Utensil Riveting Machine offers a process-specific solution. Its guided pressure for consistent joint formation suits automotive parts, cookware, sheet-metal products, and repair shops.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

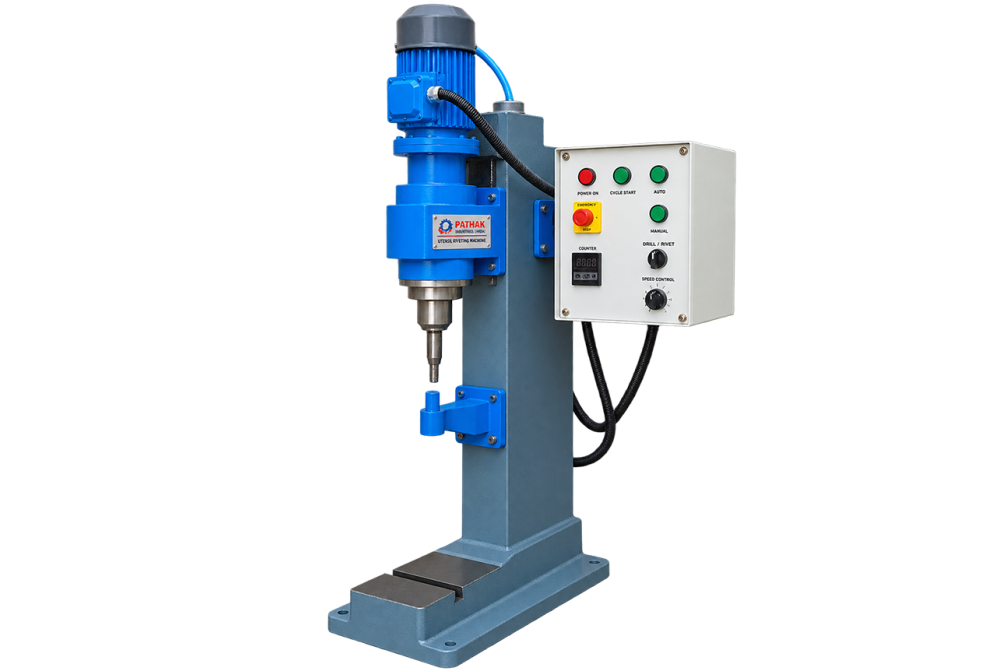

Utensil Riveting Machine
Machine Purpose
The Utensil Riveting Machine is a purpose-built unit for forming permanent riveted joints. Its layout is organised around plates, linings, utensils, and title-specific assemblies, making it relevant when this operation must be completed in a controlled sequence.
How It Works
In operation, it supports the assembly and deforms the rivet with controlled pressure. The practical focus is guided pressure for consistent joint formation. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Industrial Applications
The machine is applicable to automotive parts, cookware, sheet-metal products, and repair shops. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
When comparing versions of the Utensil Riveting Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODELS | Riveting capacity (M.S.38kg/mm U.T.S) (mm) | Throat depth (mm) |
Shut height (Max) (mm) |
Stroke Adjustable (mm) | Cycle time Adjustable(mm) | Over all dim.(mm) | Motor3 415V | Air Pressure |
| Model-003 | 3 | 110 | 200 | 0-30 | 0-9.9 sec. | 470x400x860 | 0.25 HP (0.18 kw) | 3-7 kg/cm |
| Model-005 | 6 | 110 | 180 | 0-30 | 0-9.9 sec. | 470x400x860 | 0.5 HP (0.37 kw) | 3-7 kg/cm |
| Model-008 | 8 | 140 | 225 | 0-45 | 0-9.9 sec. | 570x525x1100 | 1 HP (0.75 kw) | 3-7 kg/cm |
| Model-012 | 12 | 200 | 280 | 0-45 | 0-9.9 sec. | 625x585x1325 | 1.5 HP (1.2 kw) | 3-7 kg/cm |
| Model-016-H | 16 | 225 | 220 | 0-45 | 0-9.9 sec | 540x615x1375 | 6.0 HP (4.5 kw) Including Power Pack | 0-80 kg/cm (Hydraulic Pressure) |
Applications
Applications
Rollers
Bakelite Metal Assembly
Bicycle Parts
Chain Assembly
Fans
Clutch Brake Liners
Toys
Electronics
Electrical Parts
Castors
Hand Tools
Auto Electricals
Surgical Instruments
Baggage
Locks
Typewriters
FAQs
Frequently Asked Questions
Why is a Utensil Riveting Machine used in industrial work?
The Utensil Riveting Machine is intended for forming permanent riveted joints. It is arranged around plates, linings, utensils, and title-specific assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Utensil Riveting Machine?
The machine supports the assembly and deforms the rivet with controlled pressure. Its guided pressure for consistent joint formation supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Utensil Riveting Machine handle?
It is primarily associated with plates, linings, utensils, and title-specific assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Utensil Riveting Machine typically installed?
Typical users include automotive parts, cookware, sheet-metal products, and repair shops. In these settings, the Utensil Riveting Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Utensil Riveting Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Utensil Riveting Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Utensil Riveting Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Utensil Riveting Machine.
