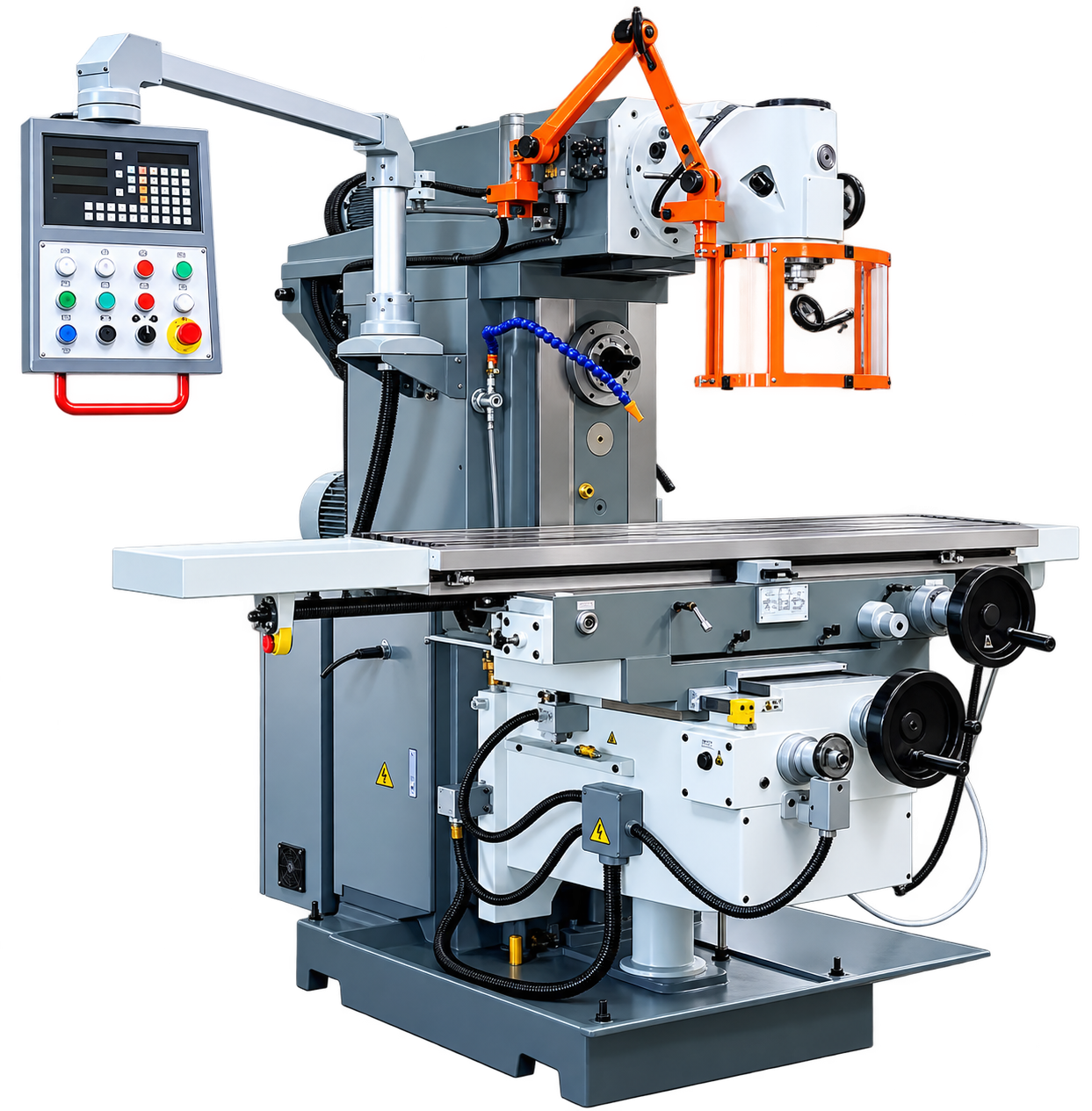

Universal Milling Machine
The Universal Milling Machine combines horizontal and vertical spindle capability in one workshop platform. This arrangement allows a broad range of operations to be completed without moving every job between separate machines, making it useful for toolrooms, maintenance departments, training facilities and general production workshops.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
The Universal Milling Machine combines horizontal and vertical spindle capability in one workshop platform. This arrangement allows a broad range of operations to be completed without moving every job between separate machines, making it useful for toolrooms, maintenance departments, training facilities and general production workshops.
The PUM6436 range comprises PUM6436, PUM6436C and PUM6436CL models. All three use 7:24 ISO50 horizontal and vertical spindle tapers, carry a listed maximum table load of 350 kg and provide a 600 mm ram travel. An optional table swivel of +/-45 degrees supports suitable angular milling work.
Depending on the selected model, table lengths range from 1325 to 1600 mm and X-axis travel from 750 to 1300 mm. The listed vertical spindle range is 60-1750 rpm, while the horizontal spindle range is 60-1800 rpm, each arranged across 12 steps. Separate 4 kW vertical and 5.5 kW horizontal spindle motors support the two machining orientations.
Typical work can include face milling, slotting, keyway cutting, angular milling, drilling, boring, gear-related operations with suitable accessories, and machining of fixtures, maintenance components and small production batches. Final model selection should consider component dimensions, fixture height, cutter diameter, table load, required travel, spindle orientation, tolerance, finish, tooling and available floor space.
Specifications
Technical Specifications
| Parameter | PUM6436 | PUM6436C | PUM6436CL |
|---|---|---|---|
| Table Size (L x W) | 1325 x 360 mm | 1325 x 360 mm | 1600 x 360 mm |
| Table Travel (X/Y/Z) | 750 x 320 x 450 mm | 1100 x 320 x 450 mm | 1300 x 320 x 450 mm |
| Table Feed (X/Y/Z) | 30-750 / 20-500 / 15-375 rpm | 30-750 / 20-500 / 15-375 rpm | 30-750 / 20-500 / 15-375 rpm |
| Swivel Table | +/-45 degrees (optional) | +/-45 degrees (optional) | +/-45 degrees (optional) |
| Spindle Taper | 7:24 ISO50 (H/V) | 7:24 ISO50 (H/V) | 7:24 ISO50 (H/V) |
| Max. Loading Capacity | 350 kg | 350 kg | 350 kg |
| T-Slot (N x W x D) | 3-18/80 mm | 3-18/80 mm | 3-18/80 mm |
| Ram Travel | 600 mm | 600 mm | 600 mm |
| Distance Between Spindle Nose and Table Surface | 196-646 mm | 190-590 mm | 190-590 mm |
| Distance Between Horizontal Nose and Table Surface | 20-470 mm | 175-625 mm | 175-625 mm |
| Distance Between Horizontal Nose and Arm Surface | 200 mm | 200 mm | 200 mm |
| Vertical Spindle Speed (12 Steps) | 60-1750 rpm | 60-1750 rpm | 60-1750 rpm |
| Horizontal Spindle Speed (12 Steps) | 60-1800 rpm | 60-1800 rpm | 60-1800 rpm |
| Main Motor Power | 4 kW (V), 5.5 kW (H) | 4 kW (V), 5.5 kW (H) | 4 kW (V), 5.5 kW (H) |
| 3-Phase AC Feeding Servo Motor Torque | 10 N.m | 10 N.m | 10 N.m |
| Overall Size | 1800 x 2100 x 2000 mm | 2520 x 2100 x 2000 mm | 2520 x 2100 x 2000 mm |
| Net Weight | 2650 kg | 2800 kg | 2800 kg |
Accessories
Standard Accessories / Machine Parts
Universal Milling Machine Spare Part Image 1
Universal Milling Machine Spare Part Image 2
Universal Milling Machine Spare Part Image 3
Universal Milling Machine Spare Part Image 4
Universal Milling Machine Spare Part Image 5
Universal Milling Machine Spare Part Image 6
FAQs
Frequently Asked Questions
What is a Universal Milling Machine used for?
It is used for suitable horizontal and vertical milling operations such as facing, slotting, keyway cutting, angular milling, drilling and boring on general workshop and production components.
Which models are included in the PUM6436 range?
The supplied range includes PUM6436, PUM6436C and the longer-table PUM6436CL, with different table lengths, longitudinal travels, working clearances, overall sizes and weights.
Does the machine have both horizontal and vertical spindles?
Yes. The specification lists horizontal and vertical spindle arrangements with 7:24 ISO50 tapers. The vertical motor is rated at 4 kW and the horizontal motor at 5.5 kW.
What spindle-speed ranges are available?
The listed vertical range is 60-1750 rpm and the horizontal range is 60-1800 rpm, each provided in 12 steps across all three models.
Can the table swivel for angular milling?
A table swivel of +/-45 degrees is listed as optional for PUM6436, PUM6436C and PUM6436CL. Confirm its inclusion and the intended angular operation when requesting a quotation.
What is the maximum listed table load?
All three models list a maximum loading capacity of 350 kg. The combined workpiece, fixture and accessory load must remain within the approved capacity and be distributed correctly.
How do the three models differ in longitudinal travel?
The listed X-axis travels are 750 mm for PUM6436, 1100 mm for PUM6436C and 1300 mm for PUM6436CL. All list 320 mm Y travel and 450 mm Z travel.
What information should be supplied with an enquiry?
Provide component drawings, material, maximum dimensions and weight, required operations, cutter sizes, fixture details, tolerances, finish, batch size, electrical supply, optional accessories and installation-space information.
