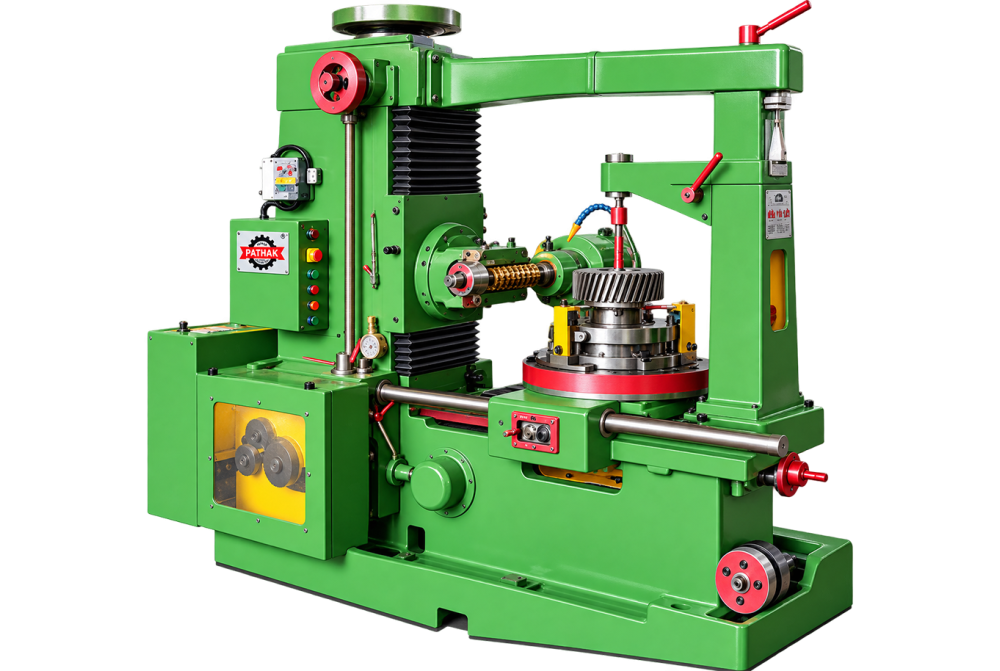

Universal Gear Hobbing Machine
The Universal Gear Hobbing Machine handles gears, sprockets, and toothed components through a layout intended for generating gear teeth through continuous indexing. The operating method supports gear shops, transmission plants, and machine building and centres on synchronised cutter and blank movement.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Universal Gear Hobbing Machine
Machine Purpose
For facilities needing generating gear teeth through continuous indexing, the Universal Gear Hobbing Machine offers a process-specific workstation. Its arrangement supports gears, sprockets, and toothed components while keeping the important operating area accessible.
Industrial Applications
Likely users are found in gear shops, transmission plants, and machine building. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
In operation, it coordinates rotation of a gear blank with a helical hob. The practical focus is synchronised cutter and blank movement. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
Machines within workshop equipment can differ in arrangement and capability. The required Universal Gear Hobbing Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | GH 450 | GH 750 | GH 800 |
| Maximum Dia. of Spur Gear | 18" | 30" | 24" |
| Minimum Dia. of Spur Gear | 1/2" | 1" | 1" |
| Maximum Module | 5 Module | 8 Module | 6 Module |
| Maxmum Travels of Hob Slide | 10" | 12" | 11" |
| Maximum Helical Gear Cutting - LH/RH | 45" LH/RH | 45" | 45 |
| Diameter of Work Table | 16" | 22" | 18 |
| Work Table Bore | 2" | 3" | 2.5" |
| Maximum Distance b/w Hob & Work Table | 11" | 18" | 1/4" |
| Maximum Dia. of Hob | 4" | 5" | 4" |
| Mounting Taper of Hob Spindle | Mt3 | Mt 4 | Mt 4 |
| Hob Spindle Speed | 6 | 8 | 6 |
| Electricals | |||
| Main Motor Power | 3 H.P | 3 H.P | 3 H.P |
| Rapid Motor Power | 1.5 H.P | 2 H.P | 2 H.P |
Videos
Product Videos
FAQs
Frequently Asked Questions
Why is a Universal Gear Hobbing Machine used in industrial work?
The Universal Gear Hobbing Machine is intended for generating gear teeth through continuous indexing. It is arranged around gears, sprockets, and toothed components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Universal Gear Hobbing Machine?
The machine coordinates rotation of a gear blank with a helical hob. Its synchronised cutter and blank movement supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Universal Gear Hobbing Machine handle?
It is primarily associated with gears, sprockets, and toothed components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Universal Gear Hobbing Machine typically installed?
Typical users include gear shops, transmission plants, and machine building. In these settings, the Universal Gear Hobbing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Universal Gear Hobbing Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Universal Gear Hobbing Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Universal Gear Hobbing Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Universal Gear Hobbing Machine.
