Sheet Metal Machines
Under Crank Shearing Machine
The primary role of the Under Crank Shearing Machine is cutting sheet, plate, sections, or scrap without conventional sawing. Typical users include fabrication shops, recycling yards, and metal processors, where guided blade movement and stable material support is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

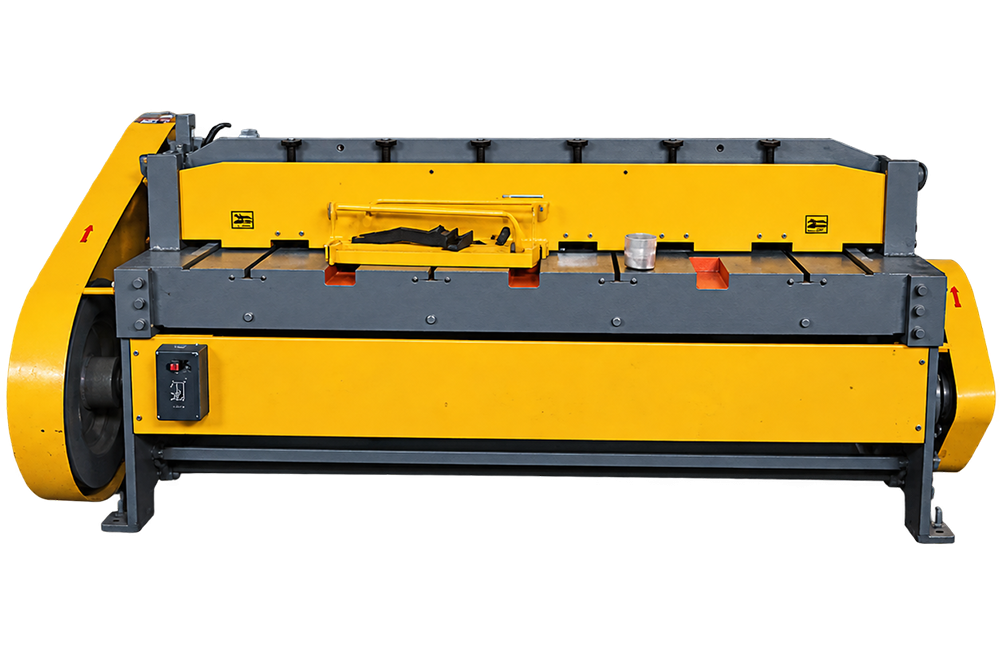

Under Crank Shearing Machine
Machine Purpose
The Under Crank Shearing Machine is a purpose-built unit for cutting sheet, plate, sections, or scrap without conventional sawing. Its layout is organised around sheet blanks, plate, bars, or title-specific scrap, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it passes a moving blade through material supported at the cutting zone. The design therefore prioritises guided blade movement and stable material support; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Likely users are found in fabrication shops, recycling yards, and metal processors. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Machines within sheet metal machines can differ in arrangement and capability. The required Under Crank Shearing Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | Cutting Cap. in MS Length x Thick | Stroke per minute | Table Height | Table Width | Front Gauge | Rear Gauge | Motor HP/KW | Blade Length x Width x Thick | Length | Breadth | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|
| POS-156 | 610 X 2 | 55 | 700 | 300 | 600 | 600 | 2/1.5 | 610X63X12 | 1250 | 1000 | 1100 |
| PUS-122 | 1270 X 2 | 55 | 750 | 350 | 600 | 600 | 2/1.5 | 1270X63X12 | 2000 | 1500 | 1200 |
| PUS-152 | 1525 X 2 | 55 | 750 | 350 | 600 | 600 | 3/1.5 | 1525X63X12 | 2300 | 1500 | 1200 |
| PUS-202 | 2030 X 2 | 55 | 750 | 400 | 600 | 600 | 3/2.2 | 2030X63X14 | 2700 | 1600 | 1200 |
| PUS-254 | 2540 X 2 | 55 | 800 | 400 | 600 | 600 | 5/3.7 | 2540X63X14 | 3200 | 1600 | 1200 |
| PUS-604 | 610 X 4 | 50 | 750 | 350 | 600 | 600 | 3/2.2 | 610X63X14 | 1300 | 1400 | 1200 |
| PUS-1204 | 1270 X 4 | 50 | 800 | 400 | 600 | 600 | 5/3.7 | 127X63X14 | 2050 | 1500 | 1200 |
| PUS-1504 | 1525 X 4 | 50 | 900 | 450 | 600 | 600 | 5/3.7 | 1525X75X18 | 2350 | 1700 | 1300 |
| PUS-2004 | 2030 X 4 | 50 | 900 | 450 | 600 | 600 | 7.5/5.6 | 2030X75X18 | 2750 | 1700 | 1300 |
| PUS-2504 | 2540 X 4 | 50 | 900 | 450 | 600 | 600 | 10/7.7 | 2540X75X18 | 3300 | 1800 | 1350 |
| PUS-3104 | 3125 X 4 | 40 | 900 | 450 | 600 | 600 | 15/11.2 | 3125X75X18 | 3900 | 1800 | 1350 |
Short Videos
YouTube Short Videos
FAQs
Frequently Asked Questions
Which operation is the Under Crank Shearing Machine designed to perform?
The Under Crank Shearing Machine is intended for cutting sheet, plate, sections, or scrap without conventional sawing. It is arranged around sheet blanks, plate, bars, or title-specific scrap, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Under Crank Shearing Machine work?
The machine passes a moving blade through material supported at the cutting zone. Its guided blade movement and stable material support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Under Crank Shearing Machine?
It is primarily associated with sheet blanks, plate, bars, or title-specific scrap. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Under Crank Shearing Machine?
Typical users include fabrication shops, recycling yards, and metal processors. In these settings, the Under Crank Shearing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Under Crank Shearing Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Under Crank Shearing Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Under Crank Shearing Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Under Crank Shearing Machine.
