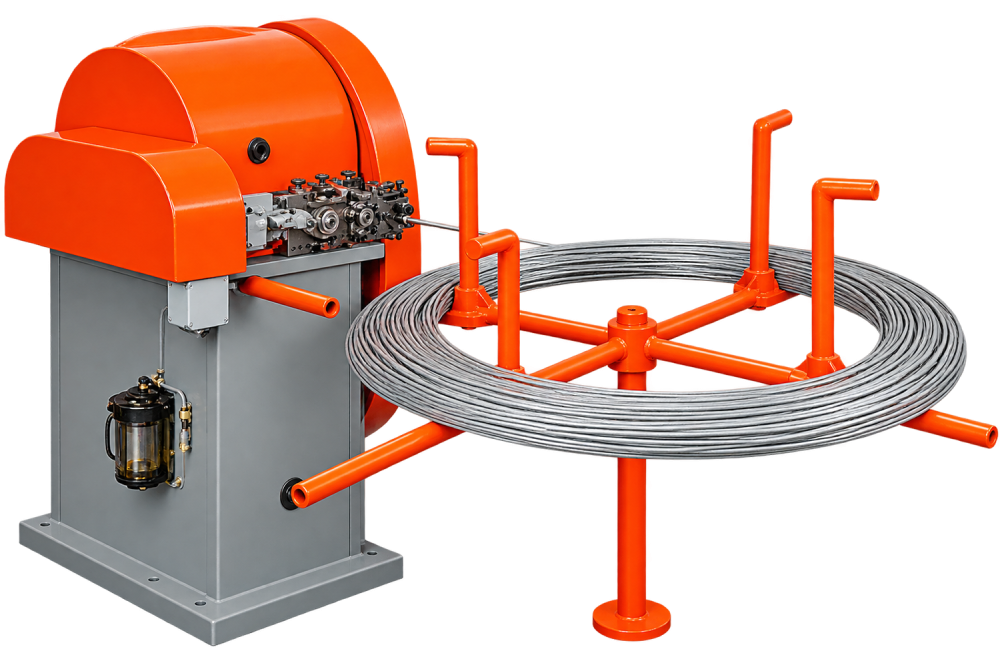

U nail Fence Staple Making Machine
A double-stroke P UNM-1 machine producing 200–250 U-shaped fence staples per minute from 1.2–4.8 mm wire.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
U nail Fence Staple Making Machine
The U Nail Fence Staple Making Machine converts wire into repeatable U-shaped staples by feeding, cutting, bending, and forming both legs in a coordinated double-stroke cycle.
Working Principle
Wire advances to the set length, is cut, and is formed around dedicated tooling to establish the crown and two legs. Correct straightening, feed length, tooling, and cut condition determine staple symmetry.
Key Production Capability
P UNM-1 accepts 18–6 SWG or 1.2–4.8 mm wire, produces 1/2–1 1/2 inch staples, provides 6–12 mm spacing between ends, and is listed for 200–250 pieces per minute with a 3 HP motor.
Industrial Applications
Finished staples are used for fencing, wire fixing, timber attachment, agricultural work, packaging, and other fastening tasks compatible with the selected staple.
Why Choose This Machine?
A dedicated automatic cycle supports high output, uniform leg length, controlled crown width, and reduced manual forming for repeat staple production.
Selection and Operating Considerations
Specify wire grade, coating, diameter, staple length, crown spacing, point shape, output, collection method, electrical supply, and packaging workflow.
Pathak Industries supplies this machine with application-based guidance. Confirm the selected model, wire specification, tooling, utilities, guarding, and required output against actual production samples before ordering.
Specifications
Technical Specifications
| Model | P UNM-1 |
| Type | Double Stroke |
| Wire Diameter (SWG) | 18 to 6 Gauge |
| Wire Diameter | 1.2 to 4.8 mm |
| Length of U" Nail | 1/2" to 1-1/2" (1.5 to 40mm) |
| Distance Between ends | 6 to 12 mm |
| Production Capacity | 200 to 250 'U' Nails per minute |
| Motor | 3.0 HP |
| Net / Gross Weight | 325/500 kilos |
| Approx Dimensions | 200 x 0.90 x 1.10m |
| Shipping Volume | 2.00 m3 |
Applications
Applications

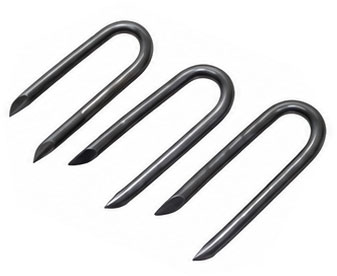

U nail Fence Staple Making Machine Application / Uses
FAQs
Frequently Asked Questions
What is the U nail Fence Staple Making Machine used for?
It produces U-shaped staples for fencing, timber fastening, agricultural assembly, and other compatible fixing applications.
How does the U nail Fence Staple Making Machine work?
The double-stroke machine feeds and cuts wire, then forms the crown and two staple legs with matched tooling.
What is the available working range of the U nail Fence Staple Making Machine?
It is listed for 1.2–4.8 mm wire, 1/2–1 1/2 inch staple length, 6–12 mm end spacing, and 200–250 pieces per minute.
Which industries use the U nail Fence Staple Making Machine?
Fence-hardware plants, fastener manufacturers, agricultural suppliers, and wire-product workshops use this equipment.
What should be checked before selecting the U nail Fence Staple Making Machine?
Confirm wire diameter and coating, staple dimensions, point style, output, tooling, power, collection, and packaging needs.
How should the U nail Fence Staple Making Machine be maintained?
Check cutters, forming dies, feed rollers, guides, drive parts, lubrication, fasteners, and safety guards at scheduled intervals.
