Scrap Bailing Machines
Tyre Baling Press Machine
Built around compressing loose recyclable material into manageable bales, the Tyre Baling Press Machine provides a dedicated working arrangement. Its contained compaction for storage and transport suits recycling yards, recovery facilities, mills, and waste processors.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

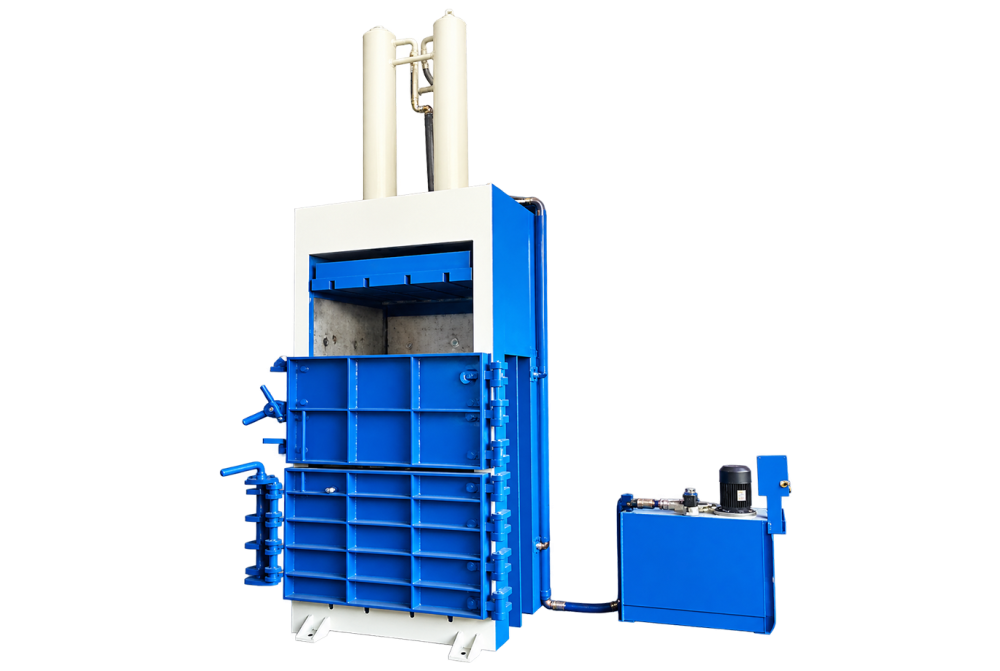

Tyre Baling Press Machine
Machine Purpose
The Tyre Baling Press Machine provides a dedicated method of compressing loose recyclable material into manageable bales. Rather than acting as unrelated general equipment, it brings the working elements together around metal, cardboard, textile, plastic, or title-specific recyclable feed.
How It Works
In operation, it loads material into a chamber and applies ram pressure. The practical focus is contained compaction for storage and transport. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Industrial Applications
Likely users are found in recycling yards, recovery facilities, mills, and waste processors. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Machines within scrap bailing machines can differ in arrangement and capability. The required Tyre Baling Press Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PTBP |
|---|---|
| Capacity | 150 Ton Pressure Single Chamber Single Cylinder Baler Machine |
| Bale size | 60(L) x 40(W) inches |
| Bale weight | 800 to 1000 kg |
| Chamber size | 60(L) x 40(W) x 84(H) inches |
| No. of cylinder | 2 Nos. |
| No. of tie | 6 Nos. |
| No. of door | 2 Nos. |
| Cylinder size | 200(Bore) x 245(OD) x 135(Ram) x 1700(Stroke) mm |
| Bale eject | By Wire Rope |
| Oil tank capacity | 400 Liters |
| Production rates | 15 to 20 minutes |
| Hydraulic system | Double Vane Pump Systems |
| Day light gap | 84 inches |
| Operation | Hand Lever Operate Systems |
| Electric motor | 25 HP Motor, 3 Phase, 1440 RPM, 50Hz |
| Overall dimension | 110(L) x 60(W) x 190(H) inches |
| Body plate | 12 mm, 16 mm, 35 mm |
Applications
Applications
Tyre Baling Press Machine Application Image 1
Tyre Baling Press Machine Application Image 2
FAQs
Frequently Asked Questions
Why is a Tyre Baling Press Machine used in industrial work?
The Tyre Baling Press Machine is intended for compressing loose recyclable material into manageable bales. It is arranged around metal, cardboard, textile, plastic, or title-specific recyclable feed, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Tyre Baling Press Machine?
The machine loads material into a chamber and applies ram pressure. Its contained compaction for storage and transport supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Tyre Baling Press Machine handle?
It is primarily associated with metal, cardboard, textile, plastic, or title-specific recyclable feed. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Tyre Baling Press Machine typically installed?
Typical users include recycling yards, recovery facilities, mills, and waste processors. In these settings, the Tyre Baling Press Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Tyre Baling Press Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Tyre Baling Press Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Tyre Baling Press Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Tyre Baling Press Machine.
