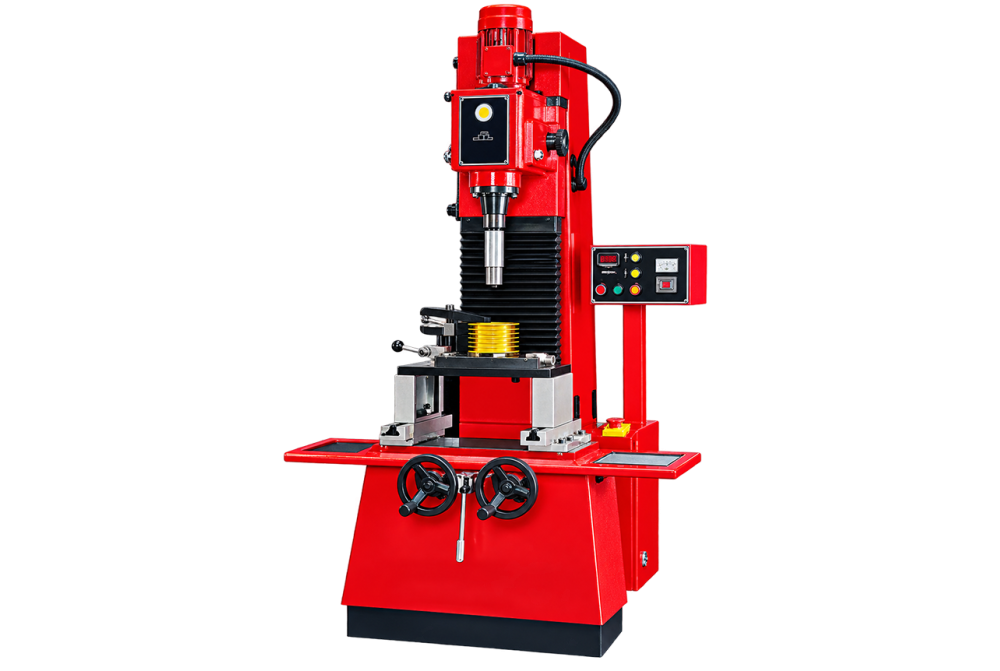

Two Wheeler Single Cylinder Boring Machine
The Two Wheeler Single Cylinder Boring Machine handles castings, housings, cylinders, and machine parts through a layout intended for enlarging and correcting existing holes. Typical users include machine shops, engine repair, and heavy maintenance, where rigid spindle guidance for internal machining is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Two Wheeler Single Cylinder Boring Machine
Machine Purpose
The Two Wheeler Single Cylinder Boring Machine provides a dedicated method of enlarging and correcting existing holes. Rather than acting as unrelated general equipment, it brings the working elements together around castings, housings, cylinders, and machine parts.
How It Works
A typical cycle begins with locating the job correctly, after which the machine positions a boring tool accurately within the supported component. Its rigid spindle guidance for internal machining supports repeat work without replacing the need for trained operation.
Industrial Applications
The machine is applicable to machine shops, engine repair, and heavy maintenance. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within automobile garage machines can differ in arrangement and capability. The required Two Wheeler Single Cylinder Boring Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | PVCB 700 | PVCB 600 |
| Boring Capcity | 48 - 110 MM (1.9'' - 3'') | 38 - 78 MM (1.5'' - 3'') |
| Max.Boring Head Travels | 300 MM (11.9'') | 300 MM (11.9'') |
| Spindle Speed (Infinitely Variable) | 50 - 550 RPM | 50 - 550 RPM |
| Spindle Feed | 0.05 MM / Revolution | 0.05 MM/ Revolution |
| Max distance from spindle center to column | 250 MM (9.9'') | 250 MM (9.9'') |
| Working table size (L x W) | 700 x 300 MM (27.55'' X 11.9'') | 600 x 300 MM (23.6'' X 11.9'') |
| Table Traverse - Longitudinal | 350 MM (17.7'') | 250 MM (9.9'') |
| Table Traverse - Cross wise | 30 MM(1,2'') | 30 MM (1.2'') |
| Motors Spindle Speed | 0.75 WW/1 HP | 0.75 KW / 1 HP |
| Motor Rapid Speed | 0.19 KW / 0.25 HP | 0.19 KW / 0.25 HP |
| Length of Machine | 1300 MM (51'') | 1150 MM (45'') |
| Width of Machine | 1000 MM (40'') | 1000 MM (40'') |
| Height of Machine | 1905 MM (75'') | 1750 MM (68'') |
| Packing Case Outer Size (LxWxH) | 1450 X 1200 X 2155 MM (57'' X 47.3'' X 85'') | 1350 X 1200 X 2000 MM (45.3''X 39.4'' X 69'') |
| Cross Weight (Approx) | 1400 KGS | 1000 KGS |
| Net Weight (Approx) | 1000 KGS | 750 KGS |
| Shipping Volume | 4 M 3 | 3M 3 |
FAQs
Frequently Asked Questions
What is a Two Wheeler Single Cylinder Boring Machine used for?
The Two Wheeler Single Cylinder Boring Machine is intended for enlarging and correcting existing holes. It is arranged around castings, housings, cylinders, and machine parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Two Wheeler Single Cylinder Boring Machine?
The machine positions a boring tool accurately within the supported component. Its rigid spindle guidance for internal machining supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Two Wheeler Single Cylinder Boring Machine?
It is primarily associated with castings, housings, cylinders, and machine parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Two Wheeler Single Cylinder Boring Machine?
Typical users include machine shops, engine repair, and heavy maintenance. In these settings, the Two Wheeler Single Cylinder Boring Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Two Wheeler Single Cylinder Boring Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Two Wheeler Single Cylinder Boring Machine be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Two Wheeler Single Cylinder Boring Machine price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Two Wheeler Single Cylinder Boring Machine.
