Scrap Bailing Machines

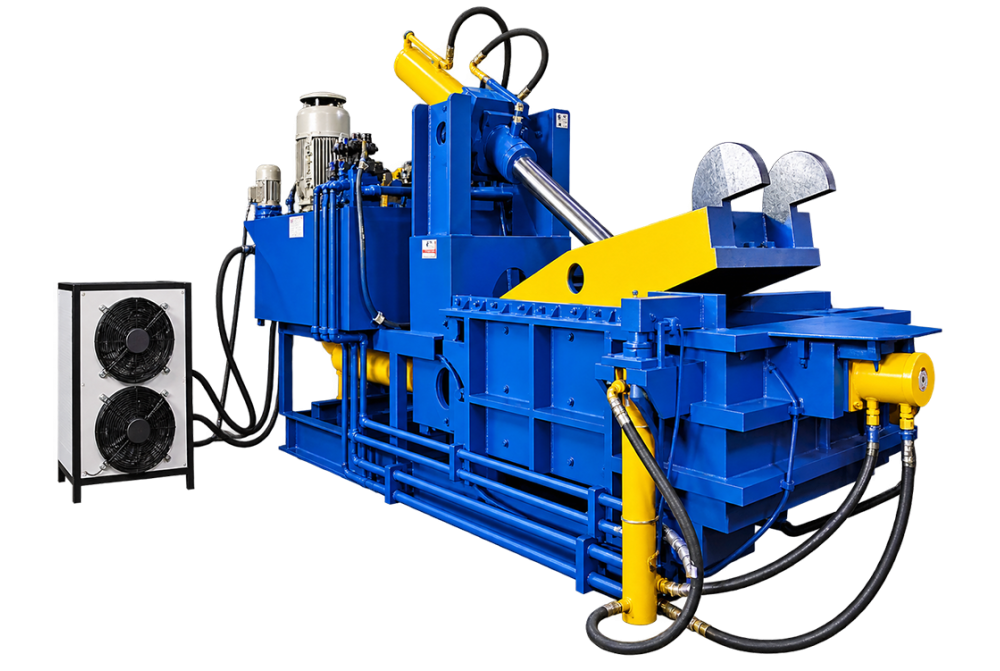

Triple Action Scrap Baling Press
For work involving metal, cardboard, textile, plastic, or title-specific recyclable feed, the Triple Action Scrap Baling Press offers a process-specific solution. Its contained compaction for storage and transport suits recycling yards, recovery facilities, mills, and waste processors.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Triple Action Scrap Baling Press
Machine Purpose
The Triple Action Scrap Baling Press is a purpose-built unit for compressing loose recyclable material into manageable bales. Its layout is organised around metal, cardboard, textile, plastic, or title-specific recyclable feed, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it loads material into a chamber and applies ram pressure. The design therefore prioritises contained compaction for storage and transport; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Natural settings include recycling yards, recovery facilities, mills, and waste processors. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Triple Action Scrap Baling Press.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PTHB 8"x8" | PTHB 10"x10" | PTHB 12"x12" | PDHB 14"x14" | PDHB Triple Action Scrap Baling Press Machine with Hydraulic Hopper (Model-PTHB 20"x20" |
| Baling Chamber | 20"x22"x50" (HxWxL) | 20"x24"x52" (HxWxL) | 24"x26"x55" (HxWxL) | 24"x28"x52" (HxWxL) | 30"x48"x80" (HxWxL) |
| Bale Size | 8"x8" (HxW) | 10"x10" (HxW) | 12"x12" (HxW) | 14"x14" (HxW) | 20"x20" (HxW) |
| Electric Motor | 20+2 H.P.,3 Phase,1440 RPM | 20+2 H.P.,3 Phase,1440 RPM | 25 H.P.,3 Phase,1440 RPM | 25+2 H.P.,3 Phase,1440 RPM | 50 H.P.,3 Phase,1440 RPM |
| Body | Fabricated 40+12 mm | Fabricated 40+12 mm | Fabricated 40+12 mm | Fabricated 40+12 mm | Fabricated 50+12 mm |
| Hard Liner Plates | Provided (C 45) 12 mm | Provided (C 45) 12 mm | Provided (C 45) | Provided (C 45) 12 mm | Provided (C 45) |
| Oil Drive | Double Vane Pump Systems | Double Vane Pump Systems | Double Vane Pump Systems | Double Vane Pump Systems | Double Vane Pump Systems |
| Working Liquid | HYDRO/ENCLO-68 (Not in Our Scope) | HYDRO/ENCLO-68 (Not in Our Scope) | HYDRO/ENCLO-68 (Not in Our Scope) | HYDRO/ENCLO-68 (Not in Our Scope) | HYDRO/ENCLO-68 (Not in Our Scope) |
| Force On Lid Cylinder | 40 Tons (150 Borex170 ODx100 RAM) | 40 Tons (150 Borex170 ODx100 RAM) | 40 Tons (150 Borex180 ODx100 RAM) | 40 Tons (150 Borex180 ODx100 RAM) | 60 Tons (180 Borex220 ODx120 RAM) |
| Force On Main Cylinder | 80 Tons (200 Borex245 ODx135 RAM) | 80 Tons (200 Borex245 ODx135 RAM) | 100 Tons (220 Borex270 ODx150 RAM) | 100 Tons (220 Borex270 ODx150 RAM) | 150 Tons (250 Borex300 ODx180 RAM) |
| Force On Side Cylinder | 120 Tons (250 Borex300 ODx150 RAM) | 120 Tons (250 Borex300 ODx150 RAM) | 120 Tons (270 Borex320 ODx160 RAM) | 120 Tons (270 Borex320 ODx160 RAM) | 120 Tons (350 Borex400 ODx200 RAM) |
| Maximum Working Pressure | 3000 PSI | 3000 PSI | 3000 PSI | 3000 PSI | 3000 PSI |
| Oil Cooling Systems | Provided | Provided | Provided (2 TR AC) | Provided (2 TR AC) | Provided (3 TR) |
| PLC/Starter | Provided | Provided With All Safety | Optional | Optional | Provided |
| Idle Cycle Time | 60-70 Sec.(Approx) | 60-70 Sec.(Approx) | 60-70 Sec.(Approx) | 60-70 Sec.(Approx) | 90-100 Sec.(Approx) |
| Weight of The Bale | 30 to 40 kg | CRC 20 to 40 kg | 40 to 60 kg | 25 to 30 kg,Cartoon 30 to 40 kg | 180 to 200 kgs,Depend on Material and its density |
| Oil Tank Capacity | 800 Ltr | 800 Ltr | 800 Ltr | 800 Ltr | 1500 Ltr |
| Operation Of The Machine | Hand Lever Operate/Fully Automatic | Hand Lever Operate | Manual Through 3 Levers | Manual Through 3 Levers | PLC Operate |
| No. of Cylinder | - | - | 5 Nos. | 5 Nos. | - |
| Lock Cylinder | - | - | 12 TON (100 Borex115 ODx65 RAM) | 12 TON (100 Borex115 ODx65 RAM) | 20 TON (125 Borex150 ODx80 RAM) |
| Bale Eject Cylinder | - | - | 12 TON (100 Borex115 ODx65 RAM) | 12 TON (100 Borex115 ODx65 RAM) | 20 TON (125 Borex150 ODx80 RAM) |
| Material Feeding | - | - | - | - | Hopper Provided |
Short Videos
YouTube Short Videos
FAQs
Frequently Asked Questions
Why is a Triple Action Scrap Baling Press used in industrial work?
The Triple Action Scrap Baling Press is intended for compressing loose recyclable material into manageable bales. It is arranged around metal, cardboard, textile, plastic, or title-specific recyclable feed, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Triple Action Scrap Baling Press?
The machine loads material into a chamber and applies ram pressure. Its contained compaction for storage and transport supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Triple Action Scrap Baling Press handle?
It is primarily associated with metal, cardboard, textile, plastic, or title-specific recyclable feed. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Triple Action Scrap Baling Press typically installed?
Typical users include recycling yards, recovery facilities, mills, and waste processors. In these settings, the Triple Action Scrap Baling Press may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Triple Action Scrap Baling Press?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Triple Action Scrap Baling Press?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Triple Action Scrap Baling Press?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Triple Action Scrap Baling Press.
