Scrap Bailing Machines

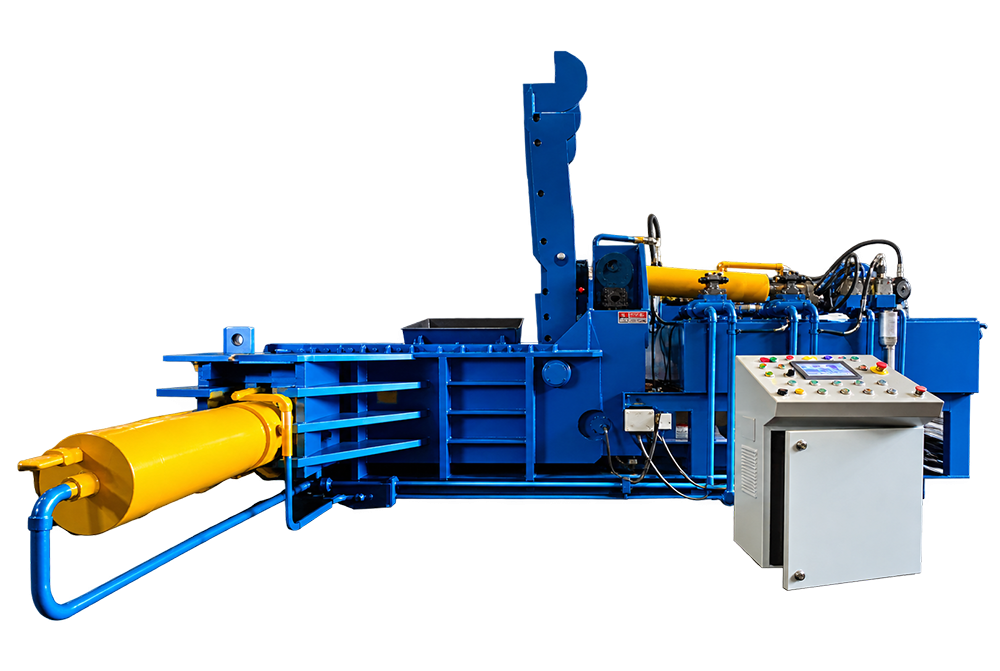

Triple Action Jumbo Baling Press Machine With Hydraulic Hopper
The primary role of the Triple Action Jumbo Baling Press Machine With Hydraulic Hopper is compressing loose recyclable material into manageable bales. It loads material into a chamber and applies ram pressure, with contained compaction for storage and transport. Hydraulic actuation provides progressive force and controlled movement.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Triple Action Jumbo Baling Press Machine With Hydraulic Hopper
Machine Purpose
The Triple Action Jumbo Baling Press Machine With Hydraulic Hopper provides a dedicated method of compressing loose recyclable material into manageable bales. Rather than acting as unrelated general equipment, it brings the working elements together around metal, cardboard, textile, plastic, or title-specific recyclable feed.
How It Works
In operation, it loads material into a chamber and applies ram pressure. The practical focus is contained compaction for storage and transport. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Hydraulic actuation provides progressive force and controlled movement.
Industrial Applications
Natural settings include recycling yards, recovery facilities, mills, and waste processors. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Triple Action Jumbo Baling Press Machine With Hydraulic Hopper.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PTHB 20"x20" |
|---|---|
| Bale size | 20" x 20" (H x W) |
| Electric motor | 50 H.P., 3 Phase, 1440 RPM |
| Body | Fabricated |
| Hard liner plates | 50+12 mm provided (C45) |
| Oil drive | Double Vane Pump Systems |
| Force on lid cylinder | 60 tons (180 bore x 220 OD x 120 ram) |
| Force on main cylinder | 150 tons (250 bore x 300 OD x 180 ram) |
| Force on side cylinder | 1200 tons (350 bore x 400 OD x 200 ram) |
| Maximum working pressure | 3000 PSI |
| Oil cooling system | Provided (3 TR) |
| Idle cycle time | 90-100 seconds approx. |
| Weight of bale | 180 to 200 kgs, depends on material and density |
| Oil tank capacity | 1500 Lts. |
| Operation | PLC Operate |
| Material feeding | Hopper provided |
FAQs
Frequently Asked Questions
What is a Triple Action Jumbo Baling Press Machine With Hydraulic Hopper used for?
The Triple Action Jumbo Baling Press Machine With Hydraulic Hopper is intended for compressing loose recyclable material into manageable bales. It is arranged around metal, cardboard, textile, plastic, or title-specific recyclable feed, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Triple Action Jumbo Baling Press Machine With Hydraulic Hopper?
The machine loads material into a chamber and applies ram pressure. Its contained compaction for storage and transport supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Triple Action Jumbo Baling Press Machine With Hydraulic Hopper?
It is primarily associated with metal, cardboard, textile, plastic, or title-specific recyclable feed. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Triple Action Jumbo Baling Press Machine With Hydraulic Hopper?
Typical users include recycling yards, recovery facilities, mills, and waste processors. In these settings, the Triple Action Jumbo Baling Press Machine With Hydraulic Hopper may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Triple Action Jumbo Baling Press Machine With Hydraulic Hopper?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Triple Action Jumbo Baling Press Machine With Hydraulic Hopper be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Triple Action Jumbo Baling Press Machine With Hydraulic Hopper price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Triple Action Jumbo Baling Press Machine With Hydraulic Hopper.
How does hydraulic actuation affect the Triple Action Jumbo Baling Press Machine With Hydraulic Hopper?
Hydraulic actuation provides progressive force and controlled movement. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
