Sheet Metal Machines

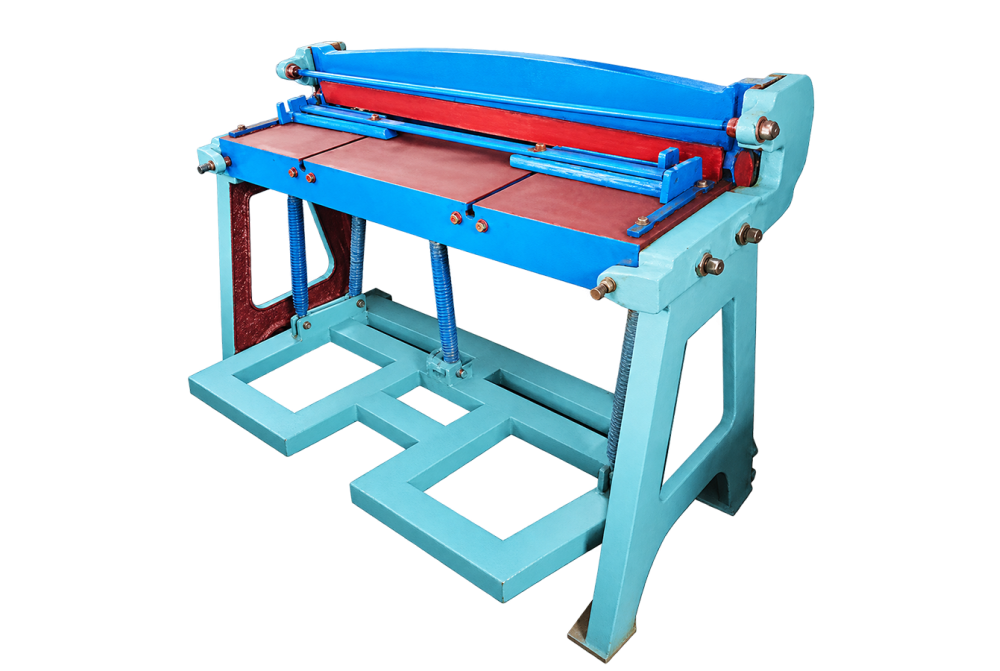

Treadle Shearing Machine
Built around cutting sheet, plate, sections, or scrap without conventional sawing, the Treadle Shearing Machine provides a dedicated working arrangement. Its guided blade movement and stable material support suits fabrication shops, recycling yards, and metal processors.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Treadle Shearing Machine
Machine Purpose
The Treadle Shearing Machine provides a dedicated method of cutting sheet, plate, sections, or scrap without conventional sawing. Rather than acting as unrelated general equipment, it brings the working elements together around sheet blanks, plate, bars, or title-specific scrap.
How It Works
A typical cycle begins with locating the job correctly, after which the machine passes a moving blade through material supported at the cutting zone. Its guided blade movement and stable material support supports repeat work without replacing the need for trained operation.
Industrial Applications
Natural settings include fabrication shops, recycling yards, and metal processors. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Machines within sheet metal machines can differ in arrangement and capability. The required Treadle Shearing Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Shear Size | 12" | 18" | 24" | 30" | 36" | 40" | 50" & 60" |
|---|---|---|---|---|---|---|---|
| Length of Bed | 14 1/2" | 20 1/2" | 28 1/4" | 33 3/4" | 40 3/4" | 43 3/4" | 58 1/4" |
| Width of Bed | 10" | 10" | 11" | 11 1/4" | 11 3/4" | 13" | 14" |
| Shear M.Sheets upto | 24swg. | 24swg. | 24swg. | 22swg. | 22swg. | 20swg. | 20swg. |
| Length of Cut one Stroke | 12" | 18" | 24" | 30" | 36" | 40" | 50" |
| Size of Blades | 305x62x14 | 460x62x14 | 635x62x14 | 788x62x14 | 940x62x14 | 1041x62x14 | 1295x62x14 |
| Height of Machines | 40" | 40" | 41" | 41" | 44" | 44" | 45" |
| No. of Tensile Springs | 1 | 1 | 2 | 2 | 2 | 2 | 3 |
FAQs
Frequently Asked Questions
Why is a Treadle Shearing Machine used in industrial work?
The Treadle Shearing Machine is intended for cutting sheet, plate, sections, or scrap without conventional sawing. It is arranged around sheet blanks, plate, bars, or title-specific scrap, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Treadle Shearing Machine?
The machine passes a moving blade through material supported at the cutting zone. Its guided blade movement and stable material support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Treadle Shearing Machine handle?
It is primarily associated with sheet blanks, plate, bars, or title-specific scrap. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Treadle Shearing Machine typically installed?
Typical users include fabrication shops, recycling yards, and metal processors. In these settings, the Treadle Shearing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Treadle Shearing Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Treadle Shearing Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Treadle Shearing Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Treadle Shearing Machine.
