Scrap Bailing Machines

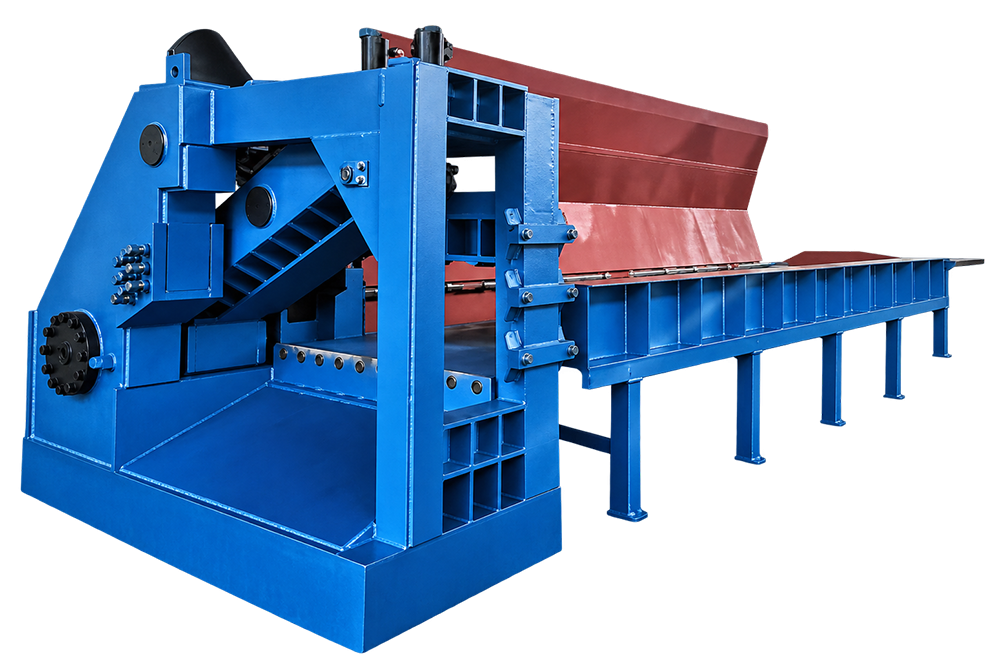

Tiger Head Shearing Machine
The primary role of the Tiger Head Shearing Machine is cutting sheet, plate, sections, or scrap without conventional sawing. It passes a moving blade through material supported at the cutting zone, with guided blade movement and stable material support.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Tiger Head Shearing Machine
Machine Purpose
The Tiger Head Shearing Machine provides a dedicated method of cutting sheet, plate, sections, or scrap without conventional sawing. Rather than acting as unrelated general equipment, it brings the working elements together around sheet blanks, plate, bars, or title-specific scrap.
How It Works
Its cycle is based on the way it passes a moving blade through material supported at the cutting zone. The design therefore prioritises guided blade movement and stable material support; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Natural settings include fabrication shops, recycling yards, and metal processors. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
When comparing versions of the Tiger Head Shearing Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Specification | PTHSM-500 | PTHSM-600 |
|---|---|---|
| Motor | - | 2x30 KW |
| Motor speed | 1475 rpm | 1440 rpm |
| Oil pump | HY250 | HY160 |
| Displacement | 250 ml/r | 160 ml/r |
| Pressure | 25 MPa | 25 MPa |
| Maximum shear force | 5000 kN | 6300 kN |
| Shear length | 200-500 mm | 200-500 mm |
| Cuts per minute | 4-6 times | 6-10 times |
Applications
Applications
Tiger Head Shearing Machine Application Image 1
Tiger Head Shearing Machine Application Image 2
Tiger Head Shearing Machine Application Image 3
Tiger Head Shearing Machine Application Image 4
FAQs
Frequently Asked Questions
Which operation is the Tiger Head Shearing Machine designed to perform?
The Tiger Head Shearing Machine is intended for cutting sheet, plate, sections, or scrap without conventional sawing. It is arranged around sheet blanks, plate, bars, or title-specific scrap, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Tiger Head Shearing Machine work?
The machine passes a moving blade through material supported at the cutting zone. Its guided blade movement and stable material support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Tiger Head Shearing Machine?
It is primarily associated with sheet blanks, plate, bars, or title-specific scrap. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Tiger Head Shearing Machine?
Typical users include fabrication shops, recycling yards, and metal processors. In these settings, the Tiger Head Shearing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Tiger Head Shearing Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Tiger Head Shearing Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Tiger Head Shearing Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Tiger Head Shearing Machine.
