Threading Machines

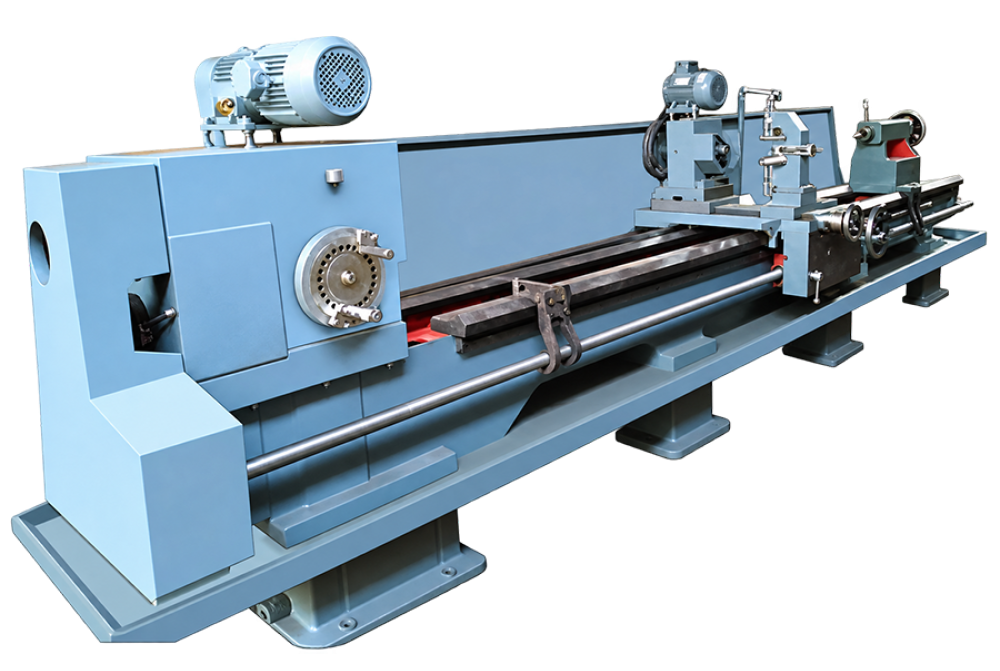

Thread Milling Machine
The primary role of the Thread Milling Machine is machining faces, slots, keyways, and contoured features. Its controlled table travel and rigid cutter support suits tool rooms, maintenance departments, and component factories.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Thread Milling Machine
Machine Purpose
For facilities needing machining faces, slots, keyways, and contoured features, the Thread Milling Machine offers a process-specific workstation. Its arrangement supports machine parts, dies, fixtures, and repair components while keeping the important operating area accessible.
Industrial Applications
The machine is applicable to tool rooms, maintenance departments, and component factories. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
A typical cycle begins with locating the job correctly, after which the machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports repeat work without replacing the need for trained operation.
Selection Considerations
Machines within threading machines can differ in arrangement and capability. The required Thread Milling Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Technical Specification |
| Head stock oil bath with electronic drive of spindle |
| Milling head also oil bath |
| Bed length 1000 to 10,000mm |
| Bed width 375/450mm min/max |
| Admit between center 300 to 9000mm |
| Job diameter 20 to 300mm |
| Spindle bore 100mm |
| Main spindle rpm 3hp |
| Main spindle rpm 0.1 to 1rpm |
| Longitudinal feeds 0.1 to 200mm |
| Milling head capacity 25mm to 40mm |
| Milling head iso 40 |
| Milling head motor 2hp |
| Threading lead pitch 25 to 200mm |
| Taper turning attachment 300 to 9000mm |
| Spindle sleve (tape bore) mt-4/mt-5 |
| Lead screw diameter & pitch 50mm/2tpi |
| Number of multistarts 1440 |
| Multistarats accuracy 0.15 degree |
| Tail stock spindle diameter 50/75mm |
Videos
Product Videos
FAQs
Frequently Asked Questions
What does a Thread Milling Machine do?
The Thread Milling Machine is intended for machining faces, slots, keyways, and contoured features. It is arranged around machine parts, dies, fixtures, and repair components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Thread Milling Machine complete its working cycle?
The machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Thread Milling Machine?
It is primarily associated with machine parts, dies, fixtures, and repair components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Thread Milling Machine?
Typical users include tool rooms, maintenance departments, and component factories. In these settings, the Thread Milling Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Thread Milling Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Thread Milling Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Thread Milling Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Thread Milling Machine.
