Wood Working Machines

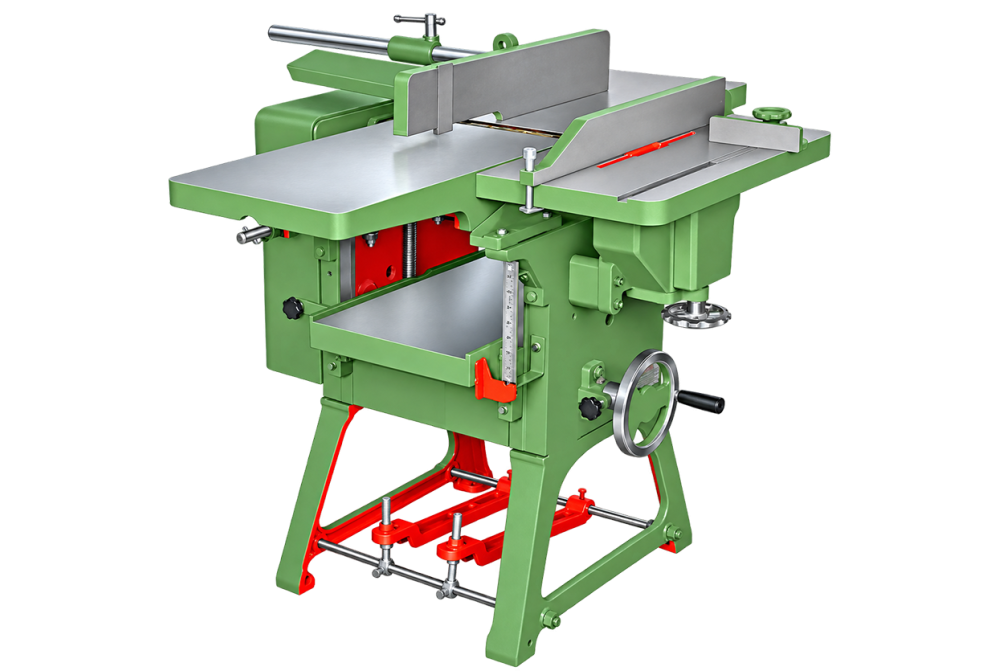

Thickness With Surface Planner Combined Circular Saw There in One
The primary role of the Thickness With Surface Planner Combined Circular Saw There in One is making fast straight cuts through stock. The operating method supports stock preparation, fabrication, and production sawing and centres on rigid clamping close to the cutting zone.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Thickness With Surface Planner Combined Circular Saw There in One
Machine Purpose
Used for making fast straight cuts through stock, the Thickness With Surface Planner Combined Circular Saw There in One addresses a distinct stage of industrial work. It accommodates bars, tubes, profiles, or timber named in the title and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Natural settings include stock preparation, fabrication, and production sawing. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
In operation, it feeds a rotating circular blade through clamped material. The practical focus is rigid clamping close to the cutting zone. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Thickness With Surface Planner Combined Circular Saw There in One.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL NO. | PTSC318 | PTSC315 | PTSC312 | PTSC309 | PTSC306 |
| Dimension | INCH / MM | INCH / MM | INCH / MM | INCH / MM | INCH / MM |
| Planner Table Width | 19'' / 482 | 16'' / 406 | 13'' / 330 | 10'' / 254 | 7'' / 177 |
| Planner Table Length | 54'' / 1371 | 48'' / 1219 | 48'' / 1219 | 46'' / 1168 | 42'' / 1066 |
| Min.Thicknessing Capacity | 1/4'' / 6 | 1/4'' / 6 | 1/4'' / 6 | 1/4'' / 6 | 1/4'' / 6 |
| Max.Thicknessing Capacity | 9'' / 228 | 9'' / 228 | 8'' / 203 | 7'' / 177 | 7'' / 177 |
| Thicknessing Table Width | 18'' / 455 | 15'' / 381 | 12'' / 305 | 9'' / 228 | 6'' / 152 |
| Thickness Table Length | 24'' / 610 | 24'' / 610 | 24'' / 610 | 24'' / 610 | 23'' / 584 |
| Cutter Diameter | 12'' / 305 | 12'' / 305 | 12'' / 305 | 10'' / 254 | 10'' / 254 |
| Max. Cutting Capacity | 3'' / 75 | 3'' / 75 | 3'' / 75 | 2 1 / 2'' | 2 1 / 2'' |
| Circular Table Length | 24'' / 610 | 24'' / 610 | 24'' / 610 | 24'' | 20'' 1/2'' |
| No. of knife | 2 NOS. | 2 NOS. | 2 NOS. | 2 NOS. | 2 NOS. |
| Main Router RPM | 3700 | 3700 | 3700 | 3700 | 3700 |
| V-Belt Size | A-66,66,45 | A-66,66,45 | B-63, A-41 | B-62, A-40 | B-62,A-40 |
| Power Requi. / Motor RPM | 5 H.P. / 1440 | 5 H.P. / 1440 | 3 H.P. / 1440 | 2 H.P. / 1440 | 2 H.P. / 1440 |
| Standard Accessories | Box spanner for blade, motor pulley, top handle,knives spanner,mitred gauge,cutter support, surface support. | ||||
| Optional Accessories | V-Belt,Motor,Toolkit,Gear Free System,3 Blade Roller, Drill Attachment,Side Moulding Attachment | ||||
Applications
Applications
Drilling
Grooving
Rebating
Sawing
Surfacing
Thicknssing
FAQs
Frequently Asked Questions
What is a Thickness With Surface Planner Combined Circular Saw There in One used for?
The Thickness With Surface Planner Combined Circular Saw There in One is intended for making fast straight cuts through stock. It is arranged around bars, tubes, profiles, or timber named in the title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Thickness With Surface Planner Combined Circular Saw There in One?
The machine feeds a rotating circular blade through clamped material. Its rigid clamping close to the cutting zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Thickness With Surface Planner Combined Circular Saw There in One?
It is primarily associated with bars, tubes, profiles, or timber named in the title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Thickness With Surface Planner Combined Circular Saw There in One?
Typical users include stock preparation, fabrication, and production sawing. In these settings, the Thickness With Surface Planner Combined Circular Saw There in One may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Thickness With Surface Planner Combined Circular Saw There in One?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Thickness With Surface Planner Combined Circular Saw There in One be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Thickness With Surface Planner Combined Circular Saw There in One price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Thickness With Surface Planner Combined Circular Saw There in One.
