Drilling Machines
Tapping Machine
The primary role of the Tapping Machine is forming internal threads in prepared holes. The operating method supports assembly shops, fabrication units, and batch production and centres on controlled tool alignment and reversal.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

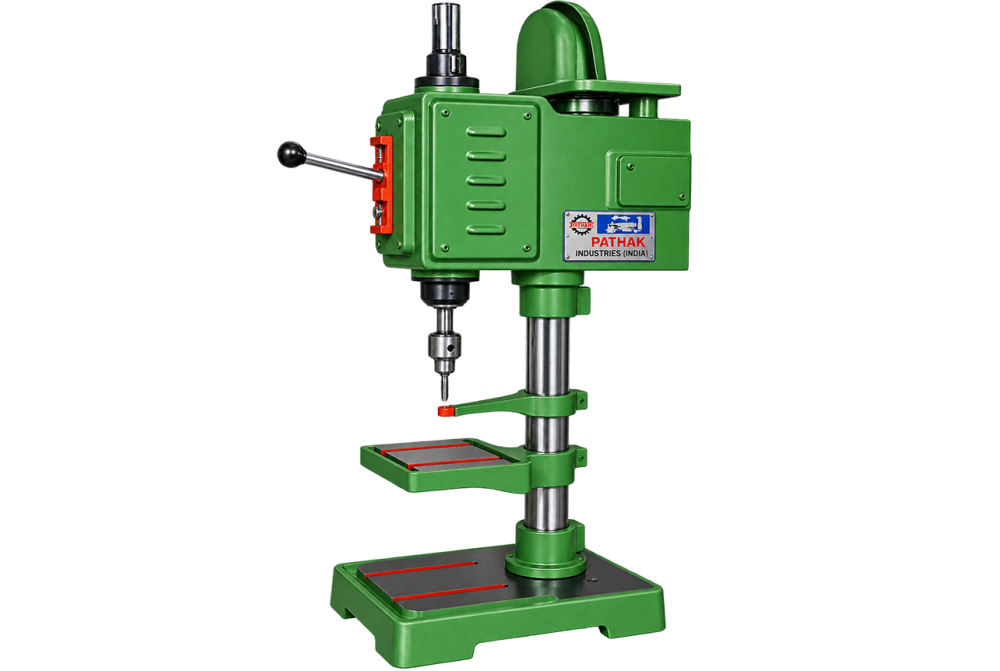

Tapping Machine
Machine Purpose
Used for forming internal threads in prepared holes, the Tapping Machine addresses a distinct stage of industrial work. It accommodates plates, castings, fittings, and fabricated parts and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Likely users are found in assembly shops, fabrication units, and batch production. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
Its cycle is based on the way it drives and reverses a tap in alignment with the hole. The design therefore prioritises controlled tool alignment and reversal; actual output still depends on the chosen model, tool, workpiece, and operating method.
Selection Considerations
Machines within drilling machines can differ in arrangement and capability. The required Tapping Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Specification | TP12 | TP6 |
| Tapping Machine Capacity | 12 mm | 6 mm |
| Drilling Capacity | 8 mm | 3 mm |
| Spindle Travel / Table travel (6mm) | 75 mm | 60 mm |
| Distance Soindle to Colum | 14 0mm | 80 mm |
| Distance between chuck to base | 45 0mm | 190 mm |
| Distance between chuck to work table | 380 mm | Moveable |
| Size of base Plate - LxB | 480x350 mn | 370 x 250 mm |
| Sixe of Work Table LXB | 190x220 mm | 150 x 150 mm |
| Diamter of Column | 74mm | 47 nnm |
| V- Belt (Inside) | inside A-71 | - |
| V- Belt for Motor (Outside) | A-25 | A 36 |
| No. of Spindle Speeds | 3 | 3 |
| Forwards Speed Range | 350/620/1100 | 480 / 750 / 1400 |
| Reverse Speed Range | 420/745/1315 | 480 / 750 / 1401 |
| Motor Single phase or three phase | 0.75/ 1H.P 1400 R.P.M | 025 H,P 1440 R.P.M |
| Overall Height | 1245 mm | 650 mm |
| Overall Width | 370 mm. | 270 mm |
| Overall front to back | 600 mm | 540 mm |
| Weight Approx | 120 Kg. | 50 Kg. |
Videos
Product Videos
Short Videos
YouTube Short Videos
Applications
Applications
Tool Rooms
Workshops
Educational Institutes
Fasteners Industries
Fabrication Workshops
Automotive
Aerospace
Industrial vehicles
Manufacturing of nuts
Manufacturing of bolts
Threading in machine parts
Threading Flanges and fittings
Machine tools
Tapping Machine Application
FAQs
Frequently Asked Questions
Which operation is the Tapping Machine designed to perform?
The Tapping Machine is intended for forming internal threads in prepared holes. It is arranged around plates, castings, fittings, and fabricated parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Tapping Machine work?
The machine drives and reverses a tap in alignment with the hole. Its controlled tool alignment and reversal supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Tapping Machine?
It is primarily associated with plates, castings, fittings, and fabricated parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Tapping Machine?
Typical users include assembly shops, fabrication units, and batch production. In these settings, the Tapping Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Tapping Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Tapping Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Tapping Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Tapping Machine.
