Drilling Machines

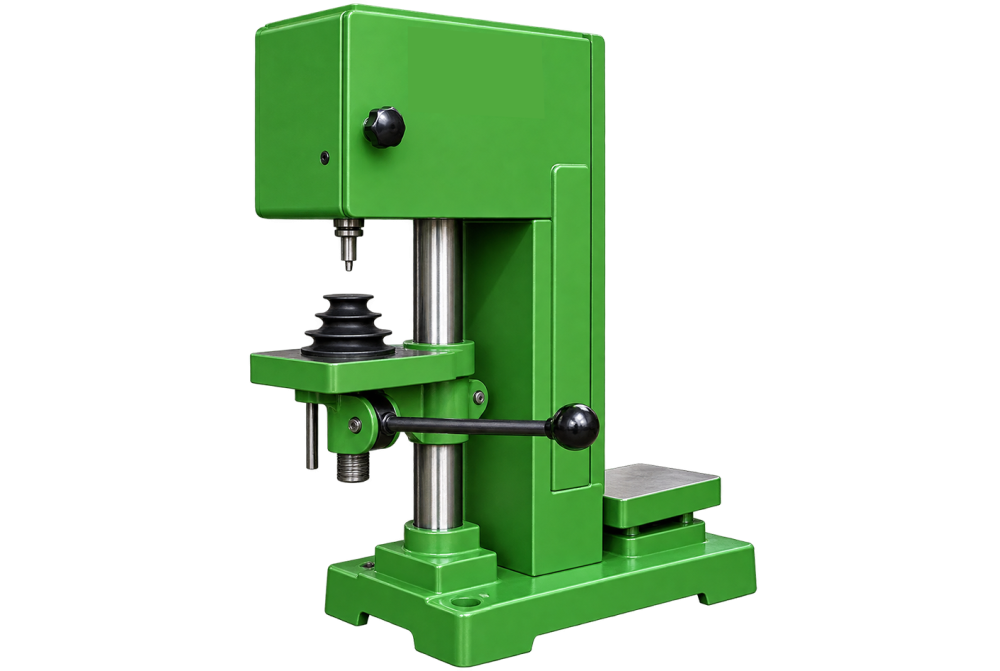

Tapping Machine 6mm
The Tapping Machine 6mm is designed for forming internal threads in prepared holes. It drives and reverses a tap in alignment with the hole, with controlled tool alignment and reversal.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Tapping Machine 6mm
Machine Purpose
The Tapping Machine 6mm is a purpose-built unit for forming internal threads in prepared holes. Its layout is organised around plates, castings, fittings, and fabricated parts, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it drives and reverses a tap in alignment with the hole. The design therefore prioritises controlled tool alignment and reversal; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Natural settings include assembly shops, fabrication units, and batch production. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Tapping Machine 6mm.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Specification | TP6 |
| Tapping Machine Capacity | 6 mm |
| Drilling Capacity | 3 mm |
| Spindle Travel / Table travel (6mm) | 60 mm |
| Distance Soindle to Colum | 80 mm |
| Distance between chuck to base | 190 mm |
| Distance between chuck to work table | Moveable |
| Size of base Plate - LxB | 370 x 250 mm |
| Sixe of Work Table LXB | 150 x 150 mm |
| Diamter of Column | 47 nnm |
| V- Belt (Inside) | - |
| V- Belt for Motor (Outside) | A 36 |
| No. of Spindle Speeds | 3 |
| Forwards Speed Range | 480 / 750 / 1400 |
| Reverse Speed Range | 480 / 750 / 1401 |
| Motor Single phase or three phase | 025 H,P 1440 R.P.M |
| Overall Height | 650 mm |
| Overall Width | 270 mm |
| Overall front to back | 540 mm |
| Weight Approx | 50 Kg. |
Videos
Product Videos
Short Videos
YouTube Short Videos
Applications
Applications
Tool Rooms
Workshops
Educational Institutes
Fasteners Industries
Fabrication Workshops
Automotive
Aerospace
Industrial vehicles
Manufacturing of nuts
Manufacturing of bolts
Threading in machine parts
Threading Flanges and fittings
FAQs
Frequently Asked Questions
What is a Tapping Machine 6mm used for?
The Tapping Machine 6mm is intended for forming internal threads in prepared holes. It is arranged around plates, castings, fittings, and fabricated parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Tapping Machine 6mm?
The machine drives and reverses a tap in alignment with the hole. Its controlled tool alignment and reversal supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Tapping Machine 6mm?
It is primarily associated with plates, castings, fittings, and fabricated parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Tapping Machine 6mm?
Typical users include assembly shops, fabrication units, and batch production. In these settings, the Tapping Machine 6mm may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Tapping Machine 6mm?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Tapping Machine 6mm be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Tapping Machine 6mm price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Tapping Machine 6mm.
