Drilling Machines

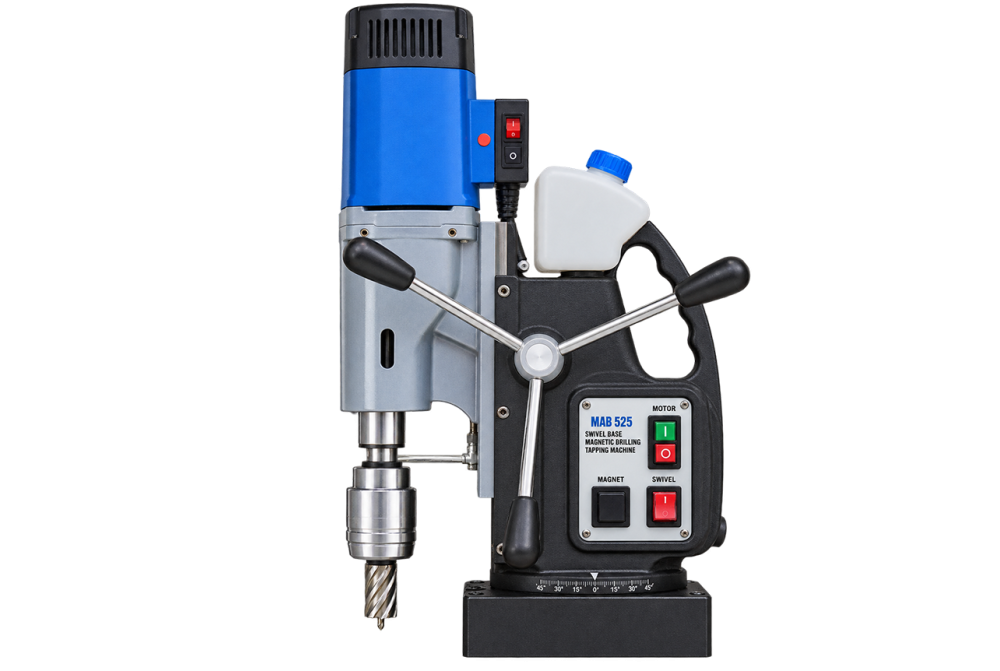

Swivel Base Magnetic Drilling Tapping Machine MAB 525
The primary role of the Swivel Base Magnetic Drilling Tapping Machine MAB 525 is drilling or tapping installed steel structures. Its portable mounting where work cannot be moved to a fixed drill suits site fabrication, bridge work, maintenance, and shipyards.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Swivel Base Magnetic Drilling Tapping Machine MAB 525
Machine Purpose
For facilities needing drilling or tapping installed steel structures, the Swivel Base Magnetic Drilling Tapping Machine MAB 525 offers a process-specific workstation. Its arrangement supports plates, beams, structures, and large fabricated assemblies while keeping the important operating area accessible.
Industrial Applications
The machine is applicable to site fabrication, bridge work, maintenance, and shipyards. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
A typical cycle begins with locating the job correctly, after which the machine anchors magnetically to ferrous work while its spindle feeds the cutter. Its portable mounting where work cannot be moved to a fixed drill supports repeat work without replacing the need for trained operation.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Swivel Base Magnetic Drilling Tapping Machine MAB 525.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| EAN | TLP-525 |
|---|---|
| Cutting Depth | 75 mm |
| Twist Drilling | 20 mm |
| Tapping | M20 |
| Reaming | 20 mm |
| Motor Output | 1600 Watts |
| Stroke | 160 mm |
| Magnet Size | 90 x 180 x 48 mm |
| Magnet Power | 13650 N |
| Weight | 16 Kg. |
| Morse Taper | MT3 |
| Speed Gears | 2 |
| Speed 1 | 70 – 280 min-1 |
| Speed 2 | 180 – 580 min-1 |
| Speed 3 | x |
| Speed 4 | x |
| Advantages | Carbon brush indicator, Internal cabling, KEYLESS drill chuck, Magnet indicator, Oil bath gearbox, Reversible motor, Steady watt control, Variable speed & torque |
| Includes | 1 Attached cooling tank, 1 drill drift & 1 taper drift, 1 Gear rim drill chuck, 1 KEYLESS drill chuck, 1 Safety chain, 1 Transport case, 2 ejector pin, 3 Tapping adapters |
| Core Drilling | 50 mm |
| Countersink | 50 mm |
Applications
Applications
Steel fabrication and erection
Shipbuilding and offshore industries
Heavy machinery maintenance
Bridge construction
Railway track construction
Boiler manufacturing
Pipeline manufacturing
Tank manufacturing
FAQs
Frequently Asked Questions
What is a Swivel Base Magnetic Drilling Tapping Machine MAB 525 used for?
The Swivel Base Magnetic Drilling Tapping Machine MAB 525 is intended for drilling or tapping installed steel structures. It is arranged around plates, beams, structures, and large fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Swivel Base Magnetic Drilling Tapping Machine MAB 525?
The machine anchors magnetically to ferrous work while its spindle feeds the cutter. Its portable mounting where work cannot be moved to a fixed drill supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Swivel Base Magnetic Drilling Tapping Machine MAB 525?
It is primarily associated with plates, beams, structures, and large fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Swivel Base Magnetic Drilling Tapping Machine MAB 525?
Typical users include site fabrication, bridge work, maintenance, and shipyards. In these settings, the Swivel Base Magnetic Drilling Tapping Machine MAB 525 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Swivel Base Magnetic Drilling Tapping Machine MAB 525?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Swivel Base Magnetic Drilling Tapping Machine MAB 525 be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Swivel Base Magnetic Drilling Tapping Machine MAB 525 price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Swivel Base Magnetic Drilling Tapping Machine MAB 525.
