Grinding Machines

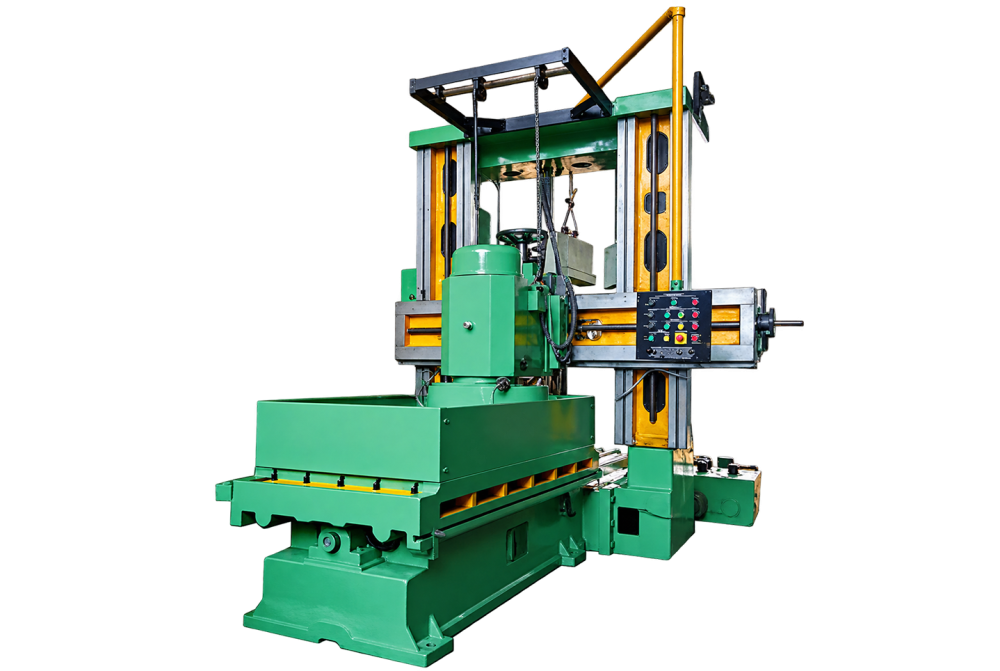

Surface Grinder For Refractories
For work involving plates, dies, tooling, and machine parts, the Surface Grinder For Refractories offers a process-specific solution. It passes supported work beneath a rotating abrasive wheel, with stable table movement and controlled wheel engagement.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Surface Grinder For Refractories
Machine Purpose
For facilities needing producing flat, smooth component surfaces, the Surface Grinder For Refractories offers a process-specific workstation. Its arrangement supports plates, dies, tooling, and machine parts while keeping the important operating area accessible.
Industrial Applications
The machine is applicable to tool rooms, die shops, repair facilities, and precision plants. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
A typical cycle begins with locating the job correctly, after which the machine passes supported work beneath a rotating abrasive wheel. Its stable table movement and controlled wheel engagement supports repeat work without replacing the need for trained operation.
Selection Considerations
Machines within grinding machines can differ in arrangement and capability. The required Surface Grinder For Refractories should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Models | PPSC-20 | PPSC-24 | PPSC-30 |
| Working Surface of Table | 525X205 MM | 625X200 MM | 625x300 MM |
| Grinding Capacity | 500X200 MM | 600X200 MM | 600X300 MM |
| Longitudinal Traverse | 525 MM | 610 MM | 630 MM |
| Cross Traverse | 215 MM | 215 MM | 320 MM |
| Vertical Traverse | 250 MM | 250 MM | 330 MM |
| Grinding Wheel Dia and Width | 200X12 MM | 200X12 MM | 200X12 MM |
| Spindle Speed | 2800 RPM | 2800 RPM | 2800 RPM |
| Cross Feed Graduation | .05 MM | .05 MM | .05 MM |
| Vertical Feed Graduation | .02 MM | .02 MM | .02 MM |
| Floor Space Requires | 1150X900 MM | 1250X1200 MM | 1850X1350 MM |
| Weight Gross | 1250X kgs. Approx | 1350 kgs. Approx | 1750 kgs. Approx |
|
ELECTRICALS
|
-
|
-
|
-
|
| Electrical Motors For Grinding Wheel | 1.0 H.P 2800 | 1.0 H.P 2800 |
-
|
| Elecrtrical Motor For Auto Feed Models Only |
-
|
1.0 H.P 1440 |
-
|
FAQs
Frequently Asked Questions
What is a Surface Grinder For Refractories used for?
The Surface Grinder For Refractories is intended for producing flat, smooth component surfaces. It is arranged around plates, dies, tooling, and machine parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Surface Grinder For Refractories?
The machine passes supported work beneath a rotating abrasive wheel. Its stable table movement and controlled wheel engagement supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Surface Grinder For Refractories?
It is primarily associated with plates, dies, tooling, and machine parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Surface Grinder For Refractories?
Typical users include tool rooms, die shops, repair facilities, and precision plants. In these settings, the Surface Grinder For Refractories may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Surface Grinder For Refractories?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Surface Grinder For Refractories be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Surface Grinder For Refractories price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Surface Grinder For Refractories.
