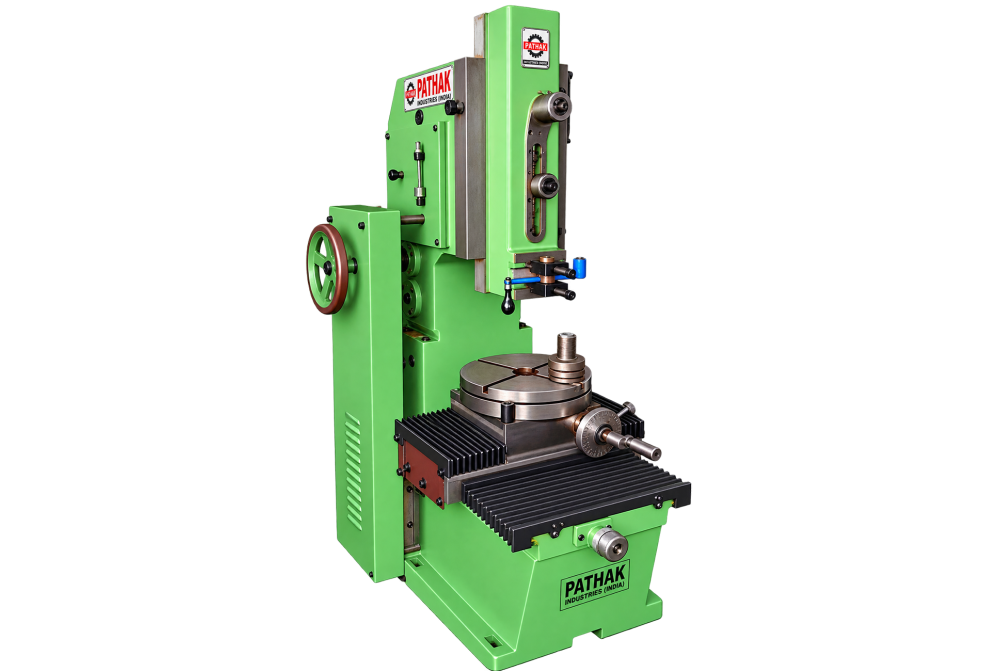

Slotting Machine
The Slotting Machine is designed for cutting internal slots, keyways, and vertical profiles. Typical users include repair shops, tool rooms, and gear workshops, where vertical tool access to internal surfaces is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Slotting Machine
Machine Purpose
The Slotting Machine provides a dedicated method of cutting internal slots, keyways, and vertical profiles. Rather than acting as unrelated general equipment, it brings the working elements together around gears, pulleys, bushes, and internal features.
How It Works
A typical cycle begins with locating the job correctly, after which the machine reciprocates a single-point tool vertically through the component. Its vertical tool access to internal surfaces supports repeat work without replacing the need for trained operation.
Industrial Applications
The machine is applicable to repair shops, tool rooms, and gear workshops. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within workshop equipment can differ in arrangement and capability. The required Slotting Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Slotting Machine Technical Specifications | SLP-1 | SLP-2 | SLP-3 | SLP-4 |
| Stroke | 150 | 250 | 300 | 450 |
| Rotary table | 275 | 375 | 500 | 900 |
| Longitudinal Movement | 200 | 280 | 300 | 600 |
| Cutting speed of ram stroke | 29,60,90 | 30,55,90 | 18,46,82 | 12,17,24/36,50,70 |
| Ram ajustment | 150 | 200 | 250 | 325 |
| Throat depth | 200 | 350 | 400 | 675 |
| H.P. adjustment | 1.5 | 2 | 3 | 7-5 H.P |
| Distance from the tool rest to the main coloum | 350 | 400 | 450 | 625 |
| Height between table & head | 300 | 375 | 450 | 7000 |
| Gross weight (kgs.) | 975 | 1450 | 1900 | 4500 kg. |
| Width depth height of machine | 800*1100*1550 | 950*1325*1825 | 1125*1550*1925 | 2000*1800*1300 |
| Size of packing case W D H | 925*1225*1725 | 1000*1400*1975 | 1250*1600*2125 | 2150*2100*1500 |
Videos
Product Videos
FAQs
Frequently Asked Questions
Why is a Slotting Machine used in industrial work?
The Slotting Machine is intended for cutting internal slots, keyways, and vertical profiles. It is arranged around gears, pulleys, bushes, and internal features, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Slotting Machine?
The machine reciprocates a single-point tool vertically through the component. Its vertical tool access to internal surfaces supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Slotting Machine handle?
It is primarily associated with gears, pulleys, bushes, and internal features. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Slotting Machine typically installed?
Typical users include repair shops, tool rooms, and gear workshops. In these settings, the Slotting Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Slotting Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Slotting Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Slotting Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Slotting Machine.
