Sheet Metal Machines
Slip Roll Bending Machine
Built around forming sheet, plate, pipe, bar, or sections into required shapes, the Slip Roll Bending Machine provides a dedicated working arrangement. The operating method supports structural fabrication, sheet-metal shops, and component production and centres on dedicated tooling that supports material during forming.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

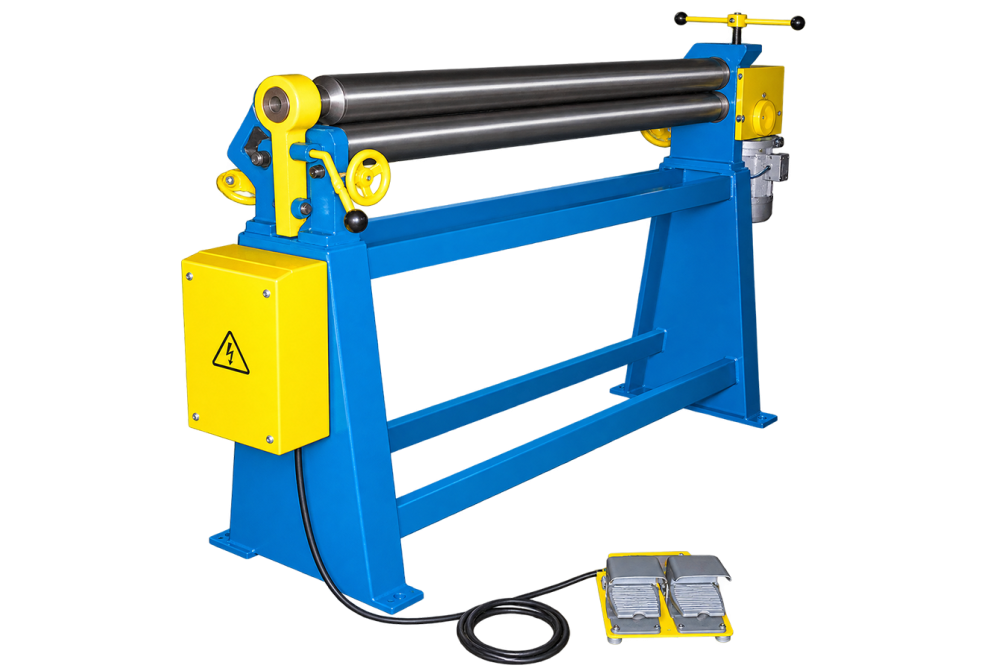

Slip Roll Bending Machine
Machine Purpose
The Slip Roll Bending Machine is a purpose-built unit for forming sheet, plate, pipe, bar, or sections into required shapes. Its layout is organised around the metal stock identified by the machine title, making it relevant when this operation must be completed in a controlled sequence.
How It Works
In operation, it draws, presses, or rolls supported material around suitable tooling. The practical focus is dedicated tooling that supports material during forming. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Industrial Applications
The machine is applicable to structural fabrication, sheet-metal shops, and component production. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Slip Roll Bending Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | SRBM16-1250 | SRBM16-1550 | SRBM16-2050 |
|---|---|---|---|
| Rolling Length | 1250 | 1550 | 2050 |
| Max. Sheet Thickness | 1.5 | 1.5 | 1.5 |
| Roller Dia. | 75 | 90 | 90 |
| Min Rolling Dia. | 120 | 140 | 140 |
| Speed | 6m/min | 6m/min | 6m/min |
| Motor Rating | 0.75kw/1.0hp | 1.12kw/1.5hp | 1.12kw/1.5hp |
| Length (mm) | 1650 | 1950 | 2450 |
| Width (mm) | 600 | 600 | 600 |
| Height (mm) | 1200 | 1200 | 1200 |
| Weight (kgs) | 350 | 500 | 575 |
FAQs
Frequently Asked Questions
Which operation is the Slip Roll Bending Machine designed to perform?
The Slip Roll Bending Machine is intended for forming sheet, plate, pipe, bar, or sections into required shapes. It is arranged around the metal stock identified by the machine title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Slip Roll Bending Machine work?
The machine draws, presses, or rolls supported material around suitable tooling. Its dedicated tooling that supports material during forming supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Slip Roll Bending Machine?
It is primarily associated with the metal stock identified by the machine title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Slip Roll Bending Machine?
Typical users include structural fabrication, sheet-metal shops, and component production. In these settings, the Slip Roll Bending Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Slip Roll Bending Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Slip Roll Bending Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Slip Roll Bending Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Slip Roll Bending Machine.
