Single Sided Fly Press
For work involving components and materials named by the product title, the Single Sided Fly Press offers a process-specific solution. It advances a guided working member against supported material, with rigid reaction support around the working zone.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

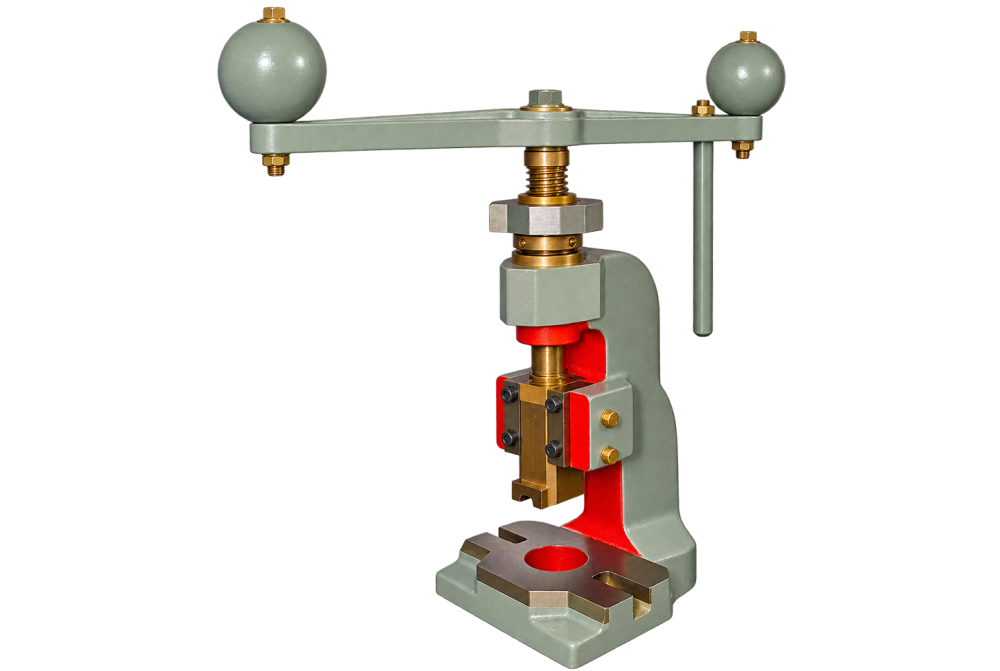

Single Sided Fly Press
Machine Purpose
For facilities needing applying controlled force for forming, fitting, punching, or compaction, the Single Sided Fly Press offers a process-specific workstation. Its arrangement supports components and materials named by the product title while keeping the important operating area accessible.
Industrial Applications
Natural settings include fabrication, assembly, maintenance, and production workshops. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
A typical cycle begins with locating the job correctly, after which the machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports repeat work without replacing the need for trained operation.
Selection Considerations
When comparing versions of the Single Sided Fly Press, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Single Sided Fly Press | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||||||||
| No. Size | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm |
| Base of Guide | 9 | 114 | 5 | 127 | 5 3/4 | 146 | 146 | 171 | 7 1/4 | 184 | 8 | 204 | 9 | 229 | 11 | 279 |
| Centre to Back | 3 | 76 | 3 | 76 | 3 3/4 | 95 | 4 1/2 | 114 | 4 1/4 | 110 | 5 1/4 | 133 | 6 | 152 | 8 | 203 |
| Diameter of Screw | 3 1/6 | 37 | 1 11/13 | 43 | 1 1/16 | 43 | 1 13/16 | 46 | 1 3/8 | 48 | 1 7/8 | 48 | 2 3/8 | 60 | 3 | 76 |
| Hole through base (without ring) | 1 3/4 | 32 | 1 3/4 | 44 | 1 3/4 | 44 | 3 | 76 | 3 1/2 | 89 | 4 | 102 | 4 1/2 | 114 | 6 | 152 |
| Hole through base (wiithout ring) | 1 1/2 | 38 | 1 3/4 | 44 | 2 | 51 | 2 1/4 | 57 | 3 | 76 | ||||||
| Stroke | 3 | 76 | 4 | 102 | 4 1/2 | 114 | 4 1/2 | 114 | 5 1/2 | 139 | 5 3/4 | 148 | 6 | 152 | 8 | 203 |
| Hole In Ram (Dia) | 3/4 | 19 | 1 | 25 | 1 | 25 | 1 | 25 | 1 | 25 | 1 | 25 | 1 | 25 | 1 1/4 | 32 |
| Hole in Ram (Depth) | 1 1/2 | 38 | 1 1/2 | 38 | 1 1/2 | 38 | 1 1/2 | 38 | 1 1/2 | 38 | 1 1/2 | 38 | 2 | 51 | 2 1/2 | 64 |
| Diameter of Fly Wheel | 18 | 229 | 18 | 229 | 19 3/4 | 260 | 21 | 536 | 23 | 587 | 23 | 587 | 29 | 739 | 32 | 813 |
| Height of the body | 19 1/4 | 484 | 19 1/2 | 484 | 21 1/2 | 546 | 24 3/4 | 631 | 26 1/4 | 682 | 28 1/4 | 733 | 33 1/4 | 847 | 40 | 1016 |
| Total weight of Machine | 35 KG | 78 KG | 100 KG | 140 KG | 170 KG | 200 KG | 300 KG | 550 KG | ||||||||
Videos

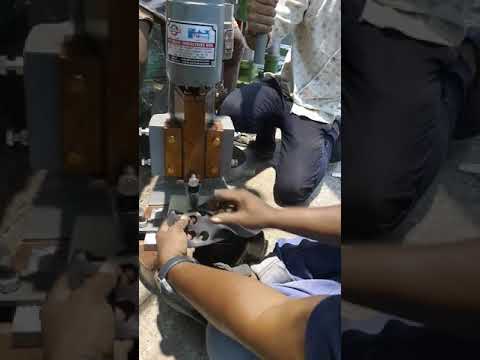

Product Videos
FAQs
Frequently Asked Questions
What is a Single Sided Fly Press used for?
The Single Sided Fly Press is intended for applying controlled force for forming, fitting, punching, or compaction. It is arranged around components and materials named by the product title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Single Sided Fly Press?
The machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Single Sided Fly Press?
It is primarily associated with components and materials named by the product title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Single Sided Fly Press?
Typical users include fabrication, assembly, maintenance, and production workshops. In these settings, the Single Sided Fly Press may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Single Sided Fly Press?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Single Sided Fly Press be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Single Sided Fly Press price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Single Sided Fly Press.
