Scrap Bailing Machines
Single Chamber Single Cylinder Baler
The Single Chamber Single Cylinder Baler handles the recyclable material identified by the title through a layout intended for reducing loose recyclable material into compact bales. It compresses loaded feed inside a reinforced chamber, with organised chamber-based compaction.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

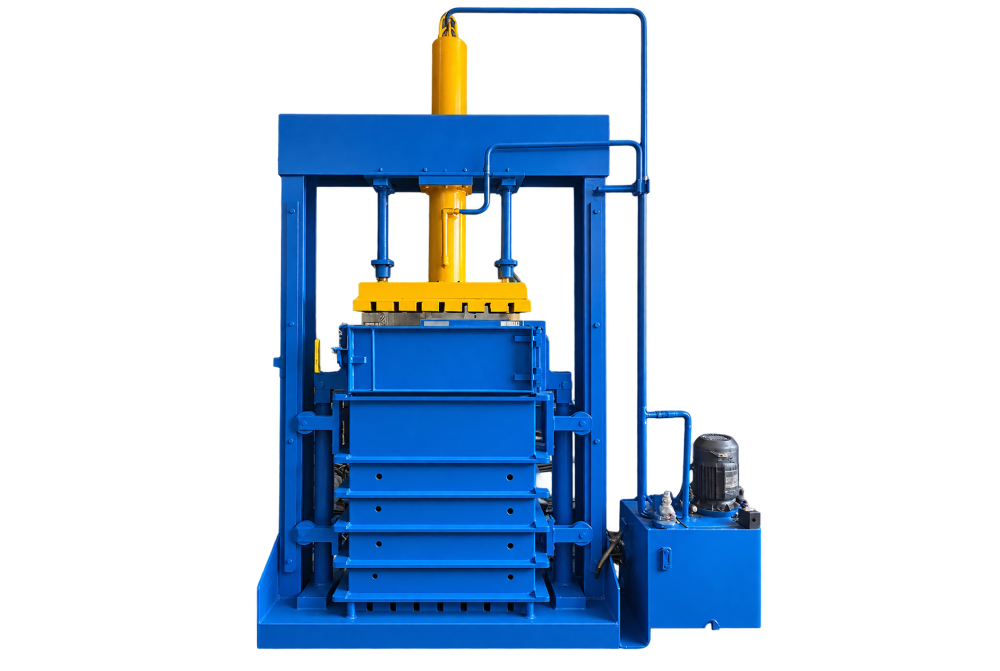

Single Chamber Single Cylinder Baler
Machine Purpose
The Single Chamber Single Cylinder Baler is a purpose-built unit for reducing loose recyclable material into compact bales. Its layout is organised around the recyclable material identified by the title, making it relevant when this operation must be completed in a controlled sequence.
How It Works
In operation, it compresses loaded feed inside a reinforced chamber. The practical focus is organised chamber-based compaction. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Industrial Applications
The machine is applicable to scrap yards, recycling plants, and recovery operations. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Single Chamber Single Cylinder Baler.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Capacity | 60 Ton Pressure Single Chamber Single Cylinder Baler Machine (lifting chamber) |
| Bale Size | 40(L)x20(W) in inch |
| Bale Weight | 80 to 120 kg |
| Chamber Size | 40(L)x20(W)x60(H) in inch |
| No. of Cylinder | 1+2 (3 nos.) |
| No. of Tie | 6 nos. |
| No. of Door | 1 nos. |
| Cylinder Size | 180 (Bore)x220 (OD)x110 (RAM)x1100 (Stroke) mm |
| Bale Eject | By Cylinder |
| Oil Tank Capacity | 250 lit. |
| Production Rates | 10 to 15 minutes |
| Hydraulic System | Double Vane Pump System |
| Day Light Gap | 60 inch |
| Operation | Hand levers operate systems |
| Electric Motor | 10 H.P. Motor,3 Phase,1440 RPM,50 Hz |
| Overall Dimension | 150(L)x50(W)x140(H) in inch |
| Body Plate | 8 mm,10 mm,12 mm,30 mm |
FAQs
Frequently Asked Questions
What is a Single Chamber Single Cylinder Baler used for?
The Single Chamber Single Cylinder Baler is intended for reducing loose recyclable material into compact bales. It is arranged around the recyclable material identified by the title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Single Chamber Single Cylinder Baler?
The machine compresses loaded feed inside a reinforced chamber. Its organised chamber-based compaction supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Single Chamber Single Cylinder Baler?
It is primarily associated with the recyclable material identified by the title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Single Chamber Single Cylinder Baler?
Typical users include scrap yards, recycling plants, and recovery operations. In these settings, the Single Chamber Single Cylinder Baler may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Single Chamber Single Cylinder Baler?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Single Chamber Single Cylinder Baler be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Single Chamber Single Cylinder Baler price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Single Chamber Single Cylinder Baler.
