Air Compressor

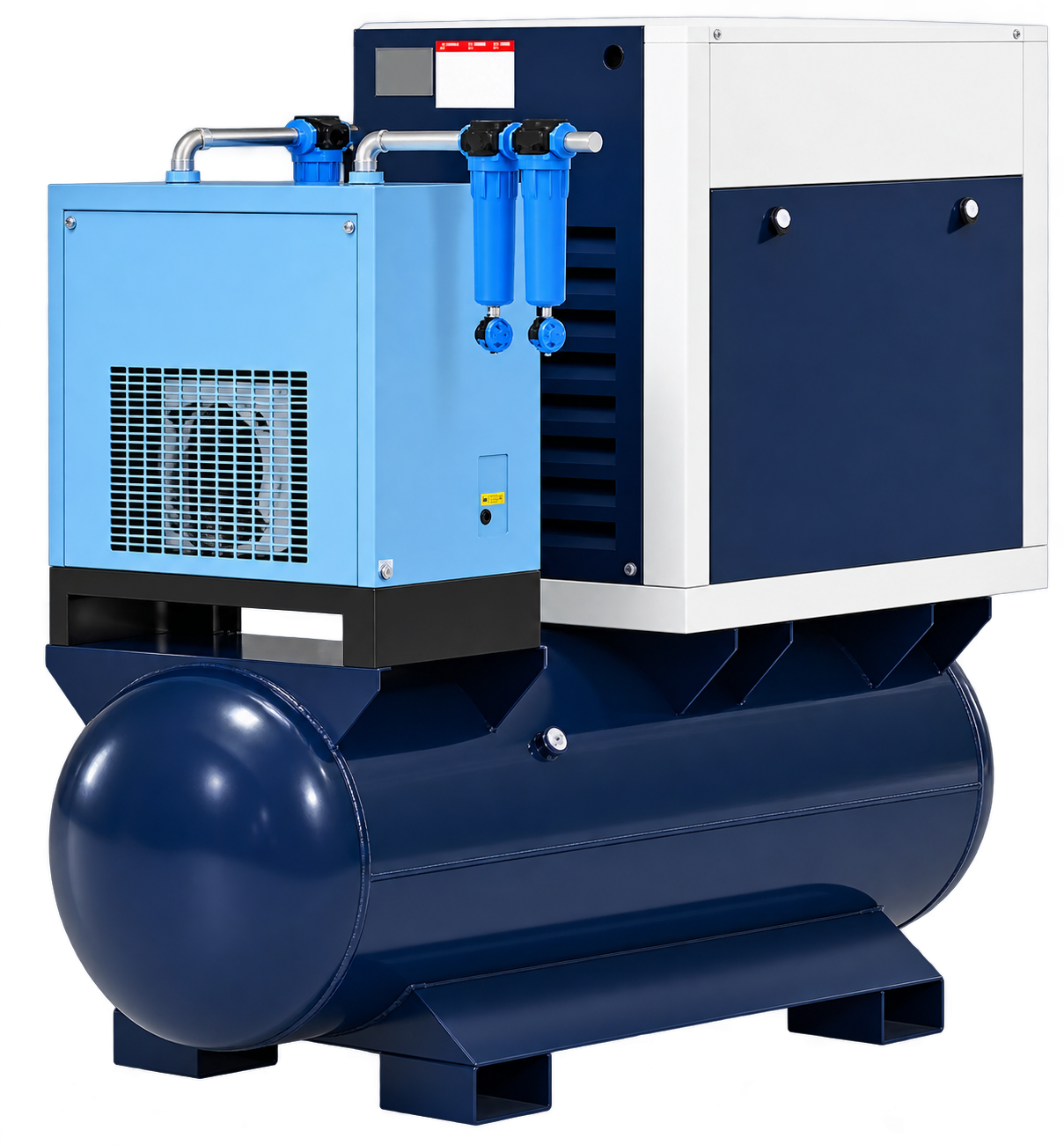

Screw Compressor Machine
A compact air-cooled screw compressor package for dependable workshop and industrial compressed-air supply. Six MN configurations cover 4-22 kW power and a listed 0.6-3.6 treatment-capacity range at 0.8 MPa.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
The Screw Compressor Machine is an enclosed, air-cooled compressed-air package designed for dependable workshop and industrial service. Rotary screw compression supports smooth continuous air delivery, while the packaged arrangement helps simplify installation and routine operation.
The supplied range includes six MN configurations with rated power from 4 to 22 kW and a common listed pressure of 0.8 MPa. Source-listed treatment-capacity values range from 0.6 to 3.6, with G3/4-inch or G1-inch outlets according to model.
Noise values range from 58 +/-2 to 62 +/-2 dB(A), while listed machine weights range from 230 to 470 kg. Available configurations allow selection according to required air capacity, site space, outlet connection and operating conditions.
Correct selection should be based on confirmed free air delivery at operating pressure, demand profile, duty cycle, air quality, receiver and dryer requirements, electrical supply, ventilation and ambient conditions. Installation should include suitable isolation, condensate management, filtration and maintenance access.
Specifications
Technical Specifications
| Model & Power | Treatment Capacity | Pressure (MPa) | Air-Cooled Dimensions (L x W x H) | Weight (kg) | Noise dB(A) | Amount (L) | Outlet Size |
|---|---|---|---|---|---|---|---|
| MN-5A-IG 4 kW | 0.6 | 0.8 | 1550 x 660 x 1490 | 230 | 58 +/-2 | 4 | G3/4" |
| MN-7A-IG 5.5 kW | 0.9 | 0.8 | 1550 x 660 x 1490 | 235 | 59 +/-2 | 4 | G3/4" |
| MN-10A-IG 7.5 kW | 1.1 | 0.8 | 1760 x 670 x 1490 | 240 | 60 +/-2 | 6 | G3/4" |
| MN-15A-IG 11 kW | 1.6 | 0.8 | 1550 x 660 x 1490 | 380 | 62 +/-2 | 10 | G3/4" |
| MN-20A-IG 15 kW | 2.3 | 0.8 | 1550 x 660 x 1650 | 400 | 62 +/-2 | 12 | G1" |
| MN-30A-IG 22 kW | 3.6 | 0.8 | 1200 x 880 x 1200 | 470 | 62 +/-2 | 18 | G1" |
Source note: The supplied sheet does not specify a unit for "Treatment Capacity" and describes the litre column only as "The Amount of (L)." Values and dimensions are reproduced as supplied. Confirm capacity units, the meaning of the litre value, free air delivery, package scope, electrical supply and dimensions for the selected model in the final technical quotation.
Accessories
Standard Accessories / Machine Parts

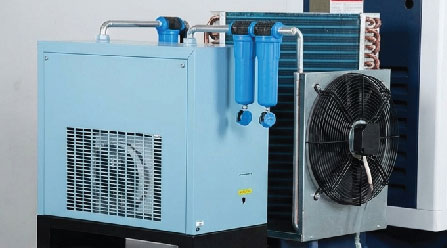

Screw Compressor Machine Spare Part Image 1

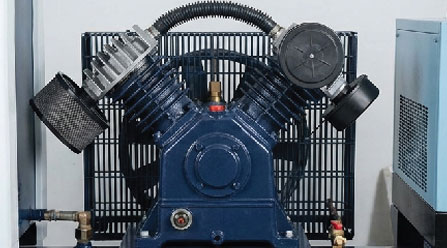

Screw Compressor Machine Spare Part Image 2

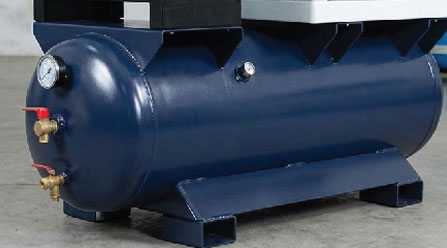

Screw Compressor Machine Spare Part Image 3

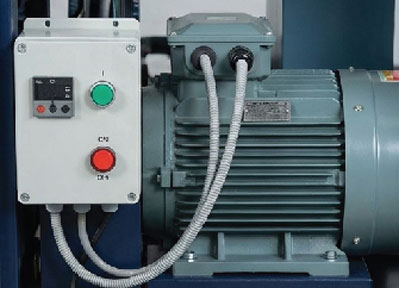

Screw Compressor Machine Spare Part Image 4
FAQs
Frequently Asked Questions
What is a screw compressor machine?
It uses meshing rotary screws to compress air and is commonly selected for smooth, continuous compressed-air supply in workshop and industrial applications.
What power range is available?
The supplied model range covers rated power from 4 to 22 kW.
What operating pressure is listed?
All six configurations in the supplied sheet list a pressure of 0.8 MPa.
What outlet connections are provided?
Models up to MN-15A-IG list a G3/4-inch outlet, while MN-20A-IG and MN-30A-IG list a G1-inch outlet.
How noisy are the listed machines?
The supplied sound-pressure values range from 58 +/-2 to 62 +/-2 dB(A), depending on model and stated test conditions.
How should the correct screw compressor be selected?
Select using confirmed free air delivery at the required pressure, demand variations, operating hours, air quality, future capacity, electrical supply and site ventilation.
What air-treatment equipment may be required?
The application may require a receiver, filters, dryer, condensate separator and drains. Required treatment depends on the desired pressure dew point, oil content and particulate quality.
What information should be provided with an enquiry?
Provide required pressure and free air delivery, operating hours, demand profile, required air quality, ambient conditions, receiver and dryer needs, outlet preference and available voltage, phase and frequency.
