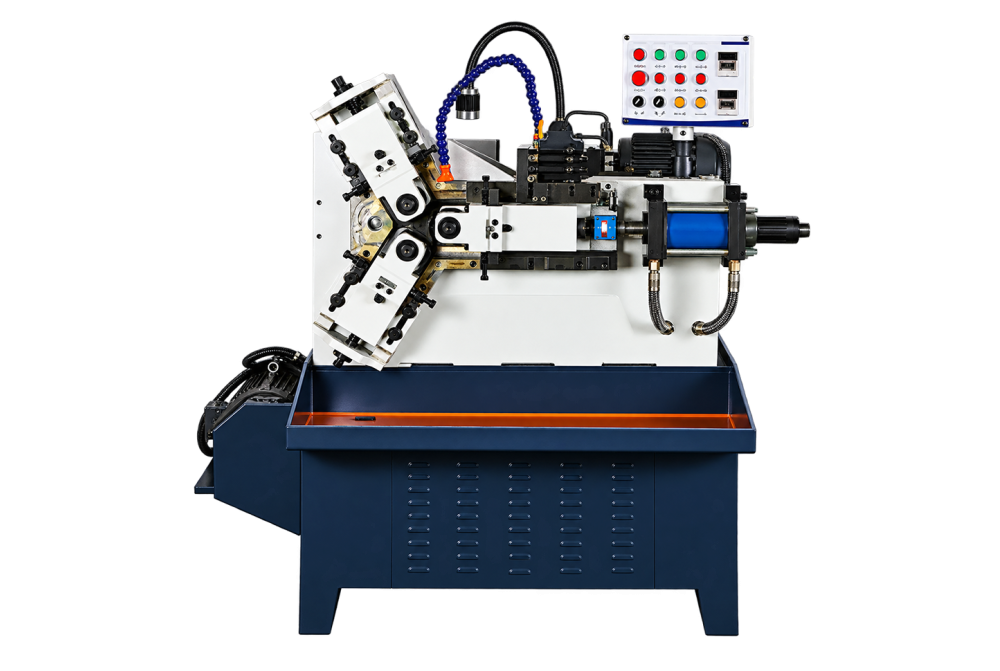

Round Die Three Roll Threading Machine
Built around producing external threads on rods, pipes, or components, the Round Die Three Roll Threading Machine provides a dedicated working arrangement. It feeds dies, rolls, or a cutter along supported work, with guided tooling for consistent thread formation.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Round Die Three Roll Threading Machine
Machine Purpose
Used for producing external threads on rods, pipes, or components, the Round Die Three Roll Threading Machine addresses a distinct stage of industrial work. It accommodates bars, fasteners, pipes, and construction rods and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Natural settings include fastener production, pipe shops, scaffolding plants, and maintenance. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
A typical cycle begins with locating the job correctly, after which the machine feeds dies, rolls, or a cutter along supported work. Its guided tooling for consistent thread formation supports repeat work without replacing the need for trained operation.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Round Die Three Roll Threading Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| THREE ROLL TYPE | RD3R-25 | RD3R-50 | RD3R-75 | ||||
|
Work Range
|
Outside Diameter | 10-25 Mm | 3/8''-1'' | 15-50 Mm | 5/8''-2'' | 25-75Mm | 1''-3'' |
| Thread Length in Feed | 38 Mm | 11/2'' | 50 Mm | 2'' | 75Mm | 3'' | |
| Thread Length Through Feed |
Indefinite | Indefinite | Indefinite | Indefinite | Indefinite | Indefinite | |
| Max.Thread Pitch |
0.7-2 Mm
|
32-12 TPl | 0.8-3 Mm | 32-8 TPl | 0.8 -6 Mm | 32 - 4 TPl | |
|
Roll Dies
|
Max in Side Dia | 80 | 140 | 160 | |||
| Max Out Side Dia | 28 | 40 | 54 | ||||
| Max. Width | 38 | 50 | 80 | ||||
| Motor 3 Phase AC | For Roll Spindle | 2 H.P. | 5 H.P. | 10 H.P. | |||
| For Hydraulic System | 2 H.P. | 3 H.P. | 5 H.P. | ||||
Applications
Applications
Round Die Three Roll Threading Machine Application 1
Round Die Three Roll Threading Machine Application 2
Round Die Three Roll Threading Machine Application 3
FAQs
Frequently Asked Questions
Which operation is the Round Die Three Roll Threading Machine designed to perform?
The Round Die Three Roll Threading Machine is intended for producing external threads on rods, pipes, or components. It is arranged around bars, fasteners, pipes, and construction rods, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Round Die Three Roll Threading Machine work?
The machine feeds dies, rolls, or a cutter along supported work. Its guided tooling for consistent thread formation supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Round Die Three Roll Threading Machine?
It is primarily associated with bars, fasteners, pipes, and construction rods. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Round Die Three Roll Threading Machine?
Typical users include fastener production, pipe shops, scaffolding plants, and maintenance. In these settings, the Round Die Three Roll Threading Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Round Die Three Roll Threading Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Round Die Three Roll Threading Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Round Die Three Roll Threading Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Round Die Three Roll Threading Machine.
