Threading Machines

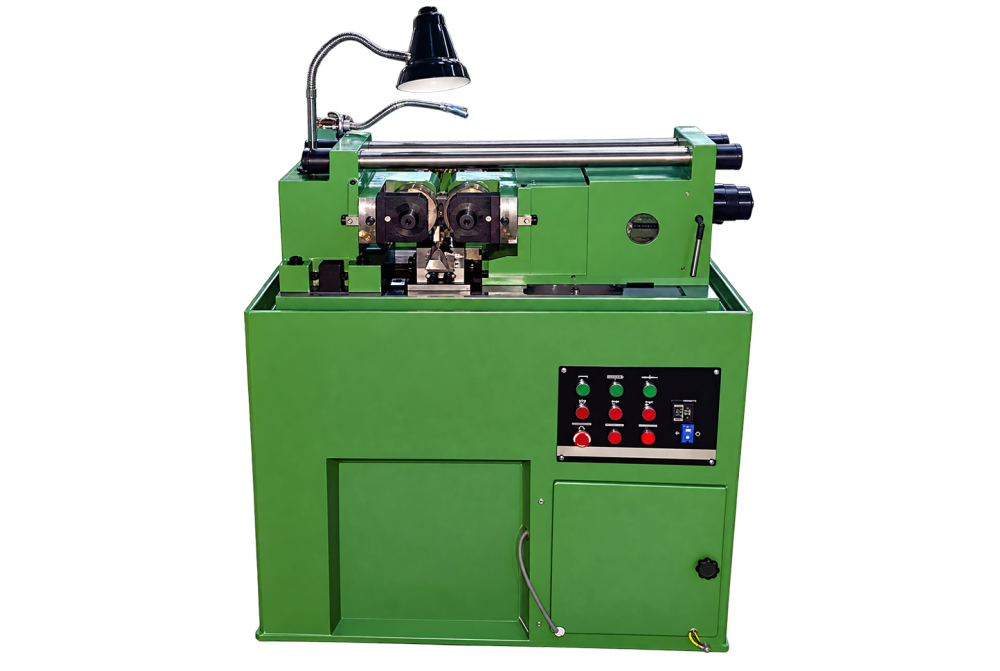

Round Die Roll Threading Machine 25 mm
For work involving bars, fasteners, pipes, and construction rods, the Round Die Roll Threading Machine 25 mm offers a process-specific solution. It feeds dies, rolls, or a cutter along supported work, with guided tooling for consistent thread formation.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Round Die Roll Threading Machine 25 mm
Machine Purpose
For facilities needing producing external threads on rods, pipes, or components, the Round Die Roll Threading Machine 25 mm offers a process-specific workstation. Its arrangement supports bars, fasteners, pipes, and construction rods while keeping the important operating area accessible.
Industrial Applications
The machine is applicable to fastener production, pipe shops, scaffolding plants, and maintenance. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
Its cycle is based on the way it feeds dies, rolls, or a cutter along supported work. The design therefore prioritises guided tooling for consistent thread formation; actual output still depends on the chosen model, tool, workpiece, and operating method.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Round Die Roll Threading Machine 25 mm.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| TWO ROLL TYPE | RTD - 25 | RTD - 40 | RTD - 50 | RTD - 80 | RTD - 100 | RTD - 120 |
| Max.Pitch Can Be Rolled (In Mm) | 2.5 | 3.5 | 4 | 5 | 5.5 | |
| Max.Dia Can Be Rolled in Feed (In Mm) | 25 | 40 | 50 | 80 | 100 | 120 |
| Max.Dia Can Be Through Feed (In Mm) | 18 | 28 | 35 | 40 | 50 | 70 |
| Max. Rolling Length In Feed (In Mm) | 80 | 100 | 150 | 150 | 150 | 150 |
| Max.Rolling Length Through Feed | indefinite | indefinite | indefinite | indefinite | indefinite | indefinite |
| Max.Outer Dia Thread Rolls (In Mm) | 120 | 180 | 180 | 180 | 200 | 220 |
| Spindle Dia (Bore Dia) (In Mm) | 40 | 54 | 54 | 69.85 | 76.20 | 76.20 |
| Max.Width Thread Rolls (In Mm) | 80 | 100 | 140 | 150 | 150 | 150 |
| Max.Rolling Force | 8 Tons | 12Tons | 15Tons | 24Tons | 30Tons | 40Tons |
| Power For Roll Spindles | 3 H.P. 1440 RPM | 5 H.P. 1440 RPM | 7.5 H.P. 1440 RPM | 10 H.P. 1440 RPM | 12.5 H.P. 1440 RPM | 20 H.P. 1440 RPM |
| Power For Hydraulic Pump | 2 H.P./3H.P. 960/1440 RPM | 2 H.P./3H.P.960/1440 RPM | 5 H.P. 960/1440 RPM | 5 H.P./7.5H.P 960/1440 RPM | 5 H.P./7.5H.P 960/1440 RPM | 7.5 H.P.960/1440 RPM |
Videos
Product Videos
Applications
Applications
Threading Machine Application Image 1
Threading Machine Application Image 2
Threading Machine Application Image 3
FAQs
Frequently Asked Questions
What does a Round Die Roll Threading Machine 25 mm do?
The Round Die Roll Threading Machine 25 mm is intended for producing external threads on rods, pipes, or components. It is arranged around bars, fasteners, pipes, and construction rods, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Round Die Roll Threading Machine 25 mm complete its working cycle?
The machine feeds dies, rolls, or a cutter along supported work. Its guided tooling for consistent thread formation supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Round Die Roll Threading Machine 25 mm?
It is primarily associated with bars, fasteners, pipes, and construction rods. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Round Die Roll Threading Machine 25 mm?
Typical users include fastener production, pipe shops, scaffolding plants, and maintenance. In these settings, the Round Die Roll Threading Machine 25 mm may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Round Die Roll Threading Machine 25 mm?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Round Die Roll Threading Machine 25 mm need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Round Die Roll Threading Machine 25 mm?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Round Die Roll Threading Machine 25 mm.
