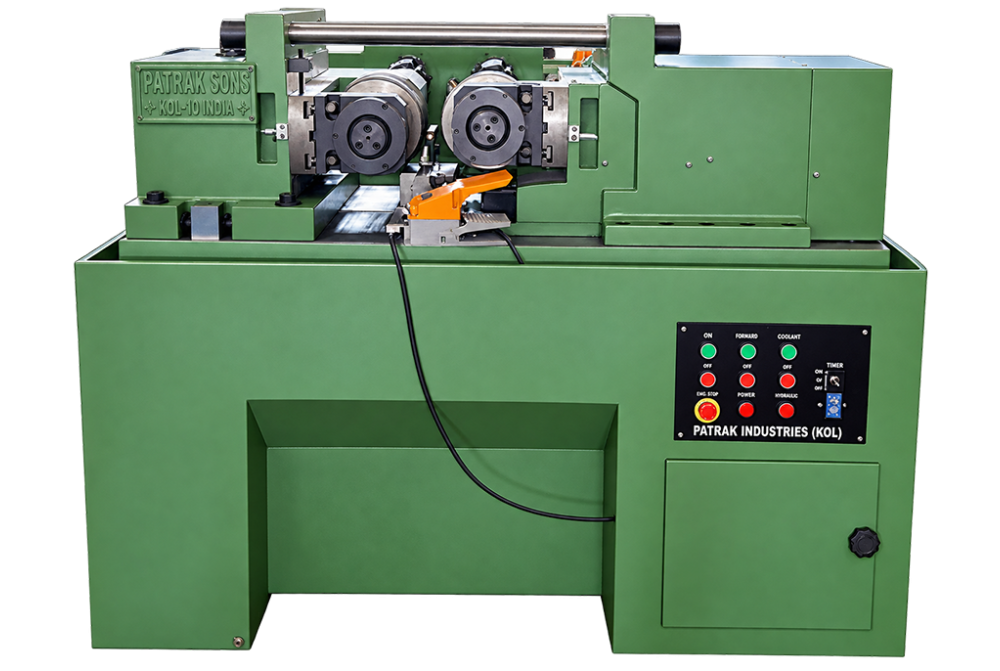

Round Die Roll Threading Machine 100 mm
The Round Die Roll Threading Machine 100 mm handles bars, fasteners, pipes, and construction rods through a layout intended for producing external threads on rods, pipes, or components. Typical users include fastener production, pipe shops, scaffolding plants, and maintenance, where guided tooling for consistent thread formation is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Round Die Roll Threading Machine 100 mm
Machine Purpose
The Round Die Roll Threading Machine 100 mm provides a dedicated method of producing external threads on rods, pipes, or components. Rather than acting as unrelated general equipment, it brings the working elements together around bars, fasteners, pipes, and construction rods.
How It Works
In operation, it feeds dies, rolls, or a cutter along supported work. The practical focus is guided tooling for consistent thread formation. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Industrial Applications
Natural settings include fastener production, pipe shops, scaffolding plants, and maintenance. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Machines within threading machines can differ in arrangement and capability. The required Round Die Roll Threading Machine 100 mm should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| TWO ROLL TYPE | RTD - 25 | RTD - 40 | RTD - 50 | RTD - 80 | RTD - 100 | RTD - 120 |
| Max.Pitch Can Be Rolled (In Mm) | 2.5 | 3.5 | 4 | 5 | 5.5 | |
| Max.Dia Can Be Rolled in Feed (In Mm) | 25 | 40 | 50 | 80 | 100 | 120 |
| Max.Dia Can Be Through Feed (In Mm) | 18 | 28 | 35 | 40 | 50 | 70 |
| Max. Rolling Length In Feed (In Mm) | 80 | 100 | 150 | 150 | 150 | 150 |
| Max.Rolling Length Through Feed | indefinite | indefinite | indefinite | indefinite | indefinite | indefinite |
| Max.Outer Dia Thread Rolls (In Mm) | 120 | 180 | 180 | 180 | 200 | 220 |
| Spindle Dia (Bore Dia) (In Mm) | 40 | 54 | 54 | 69.85 | 76.20 | 76.20 |
| Max.Width Thread Rolls (In Mm) | 80 | 100 | 140 | 150 | 150 | 150 |
| Max.Rolling Force | 8 Tons | 12Tons | 15Tons | 24Tons | 30Tons | 40Tons |
| Power For Roll Spindles | 3 H.P. 1440 RPM | 5 H.P. 1440 RPM | 7.5 H.P. 1440 RPM | 10 H.P. 1440 RPM | 12.5 H.P. 1440 RPM | 20 H.P. 1440 RPM |
| Power For Hydraulic Pump | 2 H.P./3H.P. 960/1440 RPM | 2 H.P./3H.P.960/1440 RPM | 5 H.P. 960/1440 RPM | 5 H.P./7.5H.P 960/1440 RPM | 5 H.P./7.5H.P 960/1440 RPM | 7.5 H.P.960/1440 RPM |
