Construction Machinery

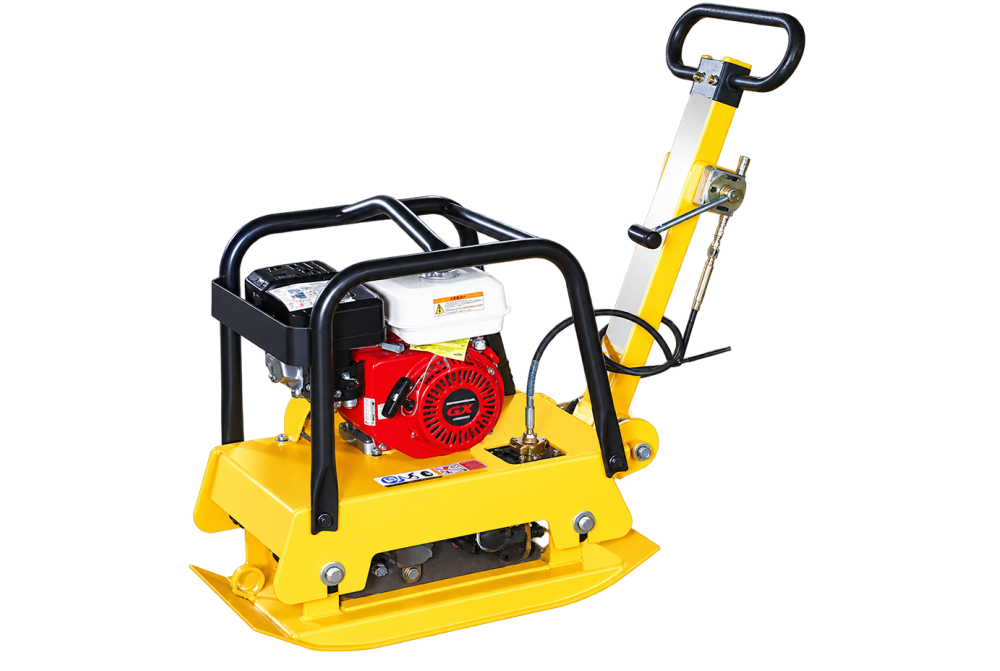

Reversible Plate Compactor
The primary role of the Reversible Plate Compactor is compacting soil and granular base material. Its concentrated vibration in a site-ready format suits trenches, paths, road repair, and foundations.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Reversible Plate Compactor
Machine Purpose
For facilities needing compacting soil and granular base material, the Reversible Plate Compactor offers a process-specific workstation. Its arrangement supports sand, gravel, sub-base, and paving preparation while keeping the important operating area accessible.
Industrial Applications
Natural settings include trenches, paths, road repair, and foundations. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
Its cycle is based on the way it transmits repeated vibration through a plate into the ground. The design therefore prioritises concentrated vibration in a site-ready format; actual output still depends on the chosen model, tool, workpiece, and operating method.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Reversible Plate Compactor.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PRPC |
|---|---|
| Weight (kg) | 160 |
| Dimension (mm) | L800xW500xHIOOO |
| Compacting Plate Size | L700xW370 |
| Centrifugal Force | 30 KN |
| Engine | Air-cooled, 4-cycle, Gasoline/ Diesel |
| Electrical Power | 7.5 Kw |
| Engine Type | Honda GX160 / Greaves Engine |
| Electrical | |
| Max. output kw(hp) | 5.5 hp / 6.5 hp |
| Max. speed (rpm) | 3600 rpm |
| Fuel Tank Capacity | 3-5 Ltr |
| Vibration Frequency | 50 Hz |
| Depth Effect | 16 in. (Depends on soil type) |
| Area of Compaction | 20,000 Sqft/hr |
| Walking Speed & Model | 0—4 Kmph & Forward/Backward |
Applications
Applications
Reversible Plate Compactor Application / Uses Image 1
Reversible Plate Compactor Application / Uses Image 2
Reversible Plate Compactor Application / Uses Image 3
Reversible Plate Compactor Application / Uses Image 4
Reversible Plate Compactor Application / Uses Image 5
FAQs
Frequently Asked Questions
What does a Reversible Plate Compactor do?
The Reversible Plate Compactor is intended for compacting soil and granular base material. It is arranged around sand, gravel, sub-base, and paving preparation, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Reversible Plate Compactor complete its working cycle?
The machine transmits repeated vibration through a plate into the ground. Its concentrated vibration in a site-ready format supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Reversible Plate Compactor?
It is primarily associated with sand, gravel, sub-base, and paving preparation. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Reversible Plate Compactor?
Typical users include trenches, paths, road repair, and foundations. In these settings, the Reversible Plate Compactor may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Reversible Plate Compactor?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Reversible Plate Compactor need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Reversible Plate Compactor?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Reversible Plate Compactor.
