Milling Machines
Ram Turret Milling Machine
The Ram Turret Milling Machine is designed for machining faces, slots, keyways, and contoured features. The operating method supports tool rooms, maintenance departments, and component factories and centres on controlled table travel and rigid cutter support.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

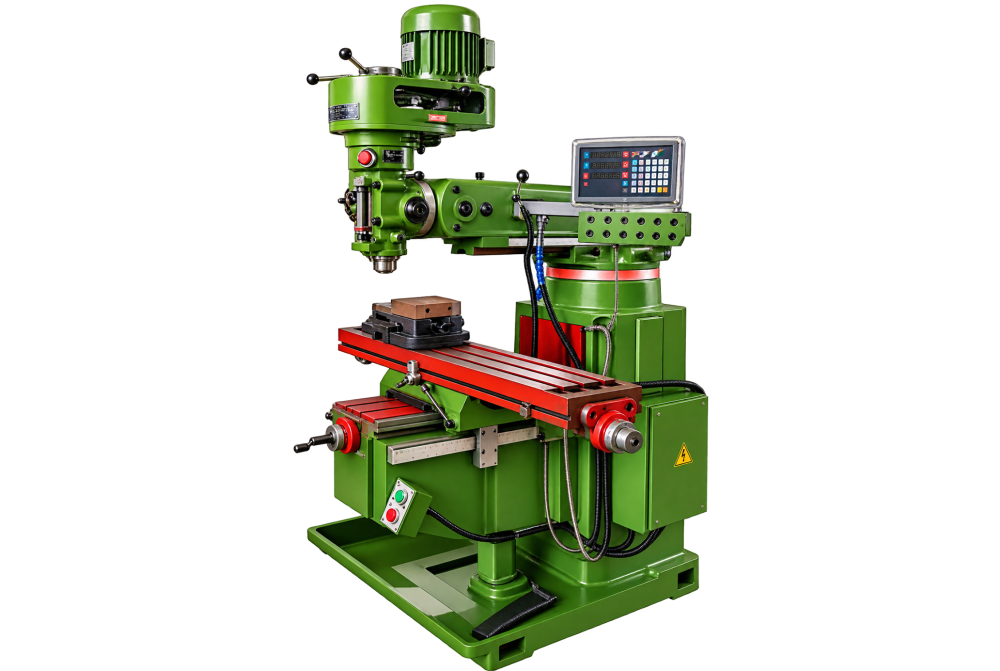

Ram Turret Milling Machine
Machine Purpose
For facilities needing machining faces, slots, keyways, and contoured features, the Ram Turret Milling Machine offers a process-specific workstation. Its arrangement supports machine parts, dies, fixtures, and repair components while keeping the important operating area accessible.
Industrial Applications
Likely users are found in tool rooms, maintenance departments, and component factories. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
In operation, it feeds supported work against a rotating multi-edge cutter. The practical focus is controlled table travel and rigid cutter support. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Ram Turret Milling Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | RTM 3 | RTM 4 | RTM 4A | RTM 4B | RTM 5 |
| Table size | 1270mm x254mm | 1370mm x 254mm | 1370mm x 254mm | 1370mm x 254mm | 1370mm x 305mm |
| T- Slot | 3 x16mm | 3 x16mm | 3 x 16mm | 3 x 16mm | 3 x 16mm |
| X- Axis | 760mm | 860mm | 860mm | 860mm | 900mm |
| Travel Y- Axis | 400mm | 400mm | 400mm | 400mm | 445mm |
| Z- Axis | 405mm | 405mm | 405mm | 405mm | 485mm |
| X- Axis | ? | ? | ? | ? | ? |
| Guide Way Y-Axis | ? | ? | ? | ? | ? |
| Z-Axis | ? | ? | ? | ? | ? |
| Ram Travel | 510mm | 580mm | 580mm | 580mm | 580mm |
| Spindle Taper | R8(NT30-Optional) | R8(NT30-Optional) | R8(NT30-Optional) | R8(NT30-Optional) | NT40 |
| Quill Travel | 127 | 127 | 127 | 127 | 127 |
| Spindle Nose to Table | 0-440mm | 0-440mm | 0-440mm | 0-440mm | 0-440mm |
| Head Tilt | 90 Deg Forward & backjeft & right | ||||
| Speed Step Number | 16 | 16 | 16 | 16 | 16 |
| Spindle Speed | 70-4620RPM | 70-4620RPM | 70-4620RPM | 70-4620RPM | 70-4620RPM |
| Quill Feed | 0.04,0.08,0.15 | 0.04,0.08,0.15 | 0.04,0.08,0.15 | 0.04,0.08,0.15 | 0.04,0.08,0.15 |
| Power | 3HP | 3HP | 3HP | 3HP | 3HP |
Accessories
Standard Accessories / Machine Parts
Horizontal Milling Hilt
Milling Chuck
Machine Vice
Spanner
Accessories
Optional Accessories
BS Universal Diving Head
Clamping Kit
DRO
Boring Head
Rotary Table
Slotting Head
Universal Dividing Head
V/H Rotary Table

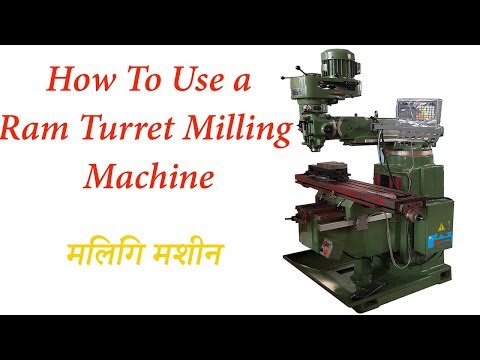

Videos
Product Videos
Applications
Applications
Tool Rooms
Workshops
Fasteners Industries
Fabrication Workshops
Die & Mould Manufacturers
Slotting and keyway cutting
Drilling metal
Drilling wood
Drilling plastic
FAQs
Frequently Asked Questions
What does a Ram Turret Milling Machine do?
The Ram Turret Milling Machine is intended for machining faces, slots, keyways, and contoured features. It is arranged around machine parts, dies, fixtures, and repair components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Ram Turret Milling Machine complete its working cycle?
The machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Ram Turret Milling Machine?
It is primarily associated with machine parts, dies, fixtures, and repair components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Ram Turret Milling Machine?
Typical users include tool rooms, maintenance departments, and component factories. In these settings, the Ram Turret Milling Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Ram Turret Milling Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Ram Turret Milling Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Ram Turret Milling Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Ram Turret Milling Machine.
