Drilling Machines

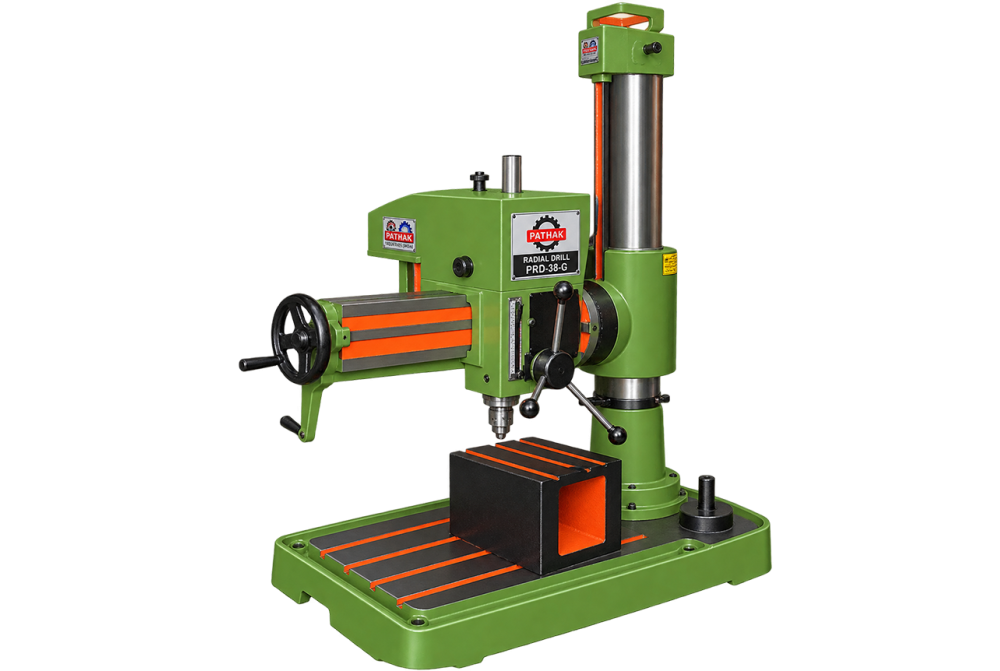

Radial Drill Machine PRD 38 G
The primary role of the Radial Drill Machine PRD 38 G is drilling varied positions on large or awkward workpieces. Its extended spindle reach without repeatedly moving the job suits heavy fabrication, maintenance, and machine building.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Radial Drill Machine PRD 38 G
Machine Purpose
For facilities needing drilling varied positions on large or awkward workpieces, the Radial Drill Machine PRD 38 G offers a process-specific workstation. Its arrangement supports castings, plates, and fabricated assemblies while keeping the important operating area accessible.
Industrial Applications
Natural settings include heavy fabrication, maintenance, and machine building. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
A typical cycle begins with locating the job correctly, after which the machine moves the drill head along a radial arm to reach the hole location. Its extended spindle reach without repeatedly moving the job supports repeat work without replacing the need for trained operation.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Radial Drill Machine PRD 38 G.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PRD-38G |
| Drilling Capacity (in steel) | 1.1/2 |
| Max.Dist.From spindle center to column | 30 |
| Min.Dist. From spindle center to column | 11 |
| Vertical travel of arm | 36 |
| Spindle travel | 7 |
| Range of spindle speeds | 88-2600 |
| Power Required (R.P.M) for simple drive | 2 H.P.(1440) |
| Power Required (R.P.M) for Elevating Arm | 1 H.P.(1440) |
| Spindle Bore | M.T.NO-4 |
| Pillar Diameter | 6.5 |
| Spindle Diameter | 2.5 |
| Work Table | 14*12*12 |
| Working Surface of base | 32*24 |
| Floor Space Required | 51*30 |
| Approximate Weight | 850kgs. |
Short Videos
YouTube Short Videos
Applications
Applications
Ship Building
Tool Rooms
Workshops
Fasteners Industries
Fabrication Workshops
Automotive
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
FAQs
Frequently Asked Questions
Which operation is the Radial Drill Machine PRD 38 G designed to perform?
The Radial Drill Machine PRD 38 G is intended for drilling varied positions on large or awkward workpieces. It is arranged around castings, plates, and fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Radial Drill Machine PRD 38 G work?
The machine moves the drill head along a radial arm to reach the hole location. Its extended spindle reach without repeatedly moving the job supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Radial Drill Machine PRD 38 G?
It is primarily associated with castings, plates, and fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Radial Drill Machine PRD 38 G?
Typical users include heavy fabrication, maintenance, and machine building. In these settings, the Radial Drill Machine PRD 38 G may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Radial Drill Machine PRD 38 G models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Radial Drill Machine PRD 38 G require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Radial Drill Machine PRD 38 G vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Radial Drill Machine PRD 38 G.
