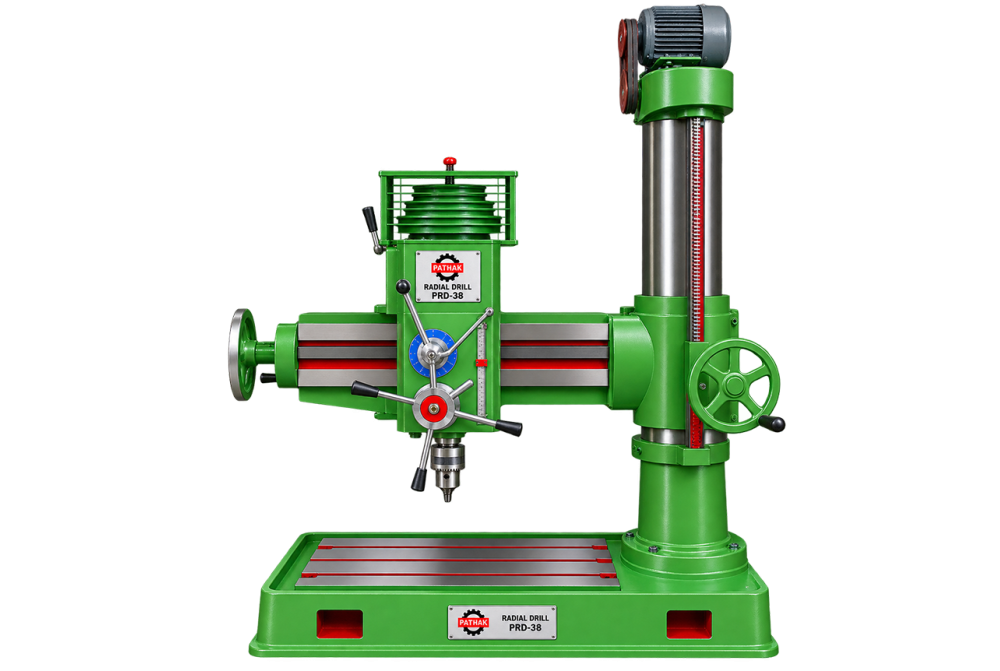

Radial Drill Machine PM 38
For work involving castings, plates, and fabricated assemblies, the Radial Drill Machine PM 38 offers a process-specific solution. Its extended spindle reach without repeatedly moving the job suits heavy fabrication, maintenance, and machine building.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Radial Drill Machine PM 38
Machine Purpose
The Radial Drill Machine PM 38 is a purpose-built unit for drilling varied positions on large or awkward workpieces. Its layout is organised around castings, plates, and fabricated assemblies, making it relevant when this operation must be completed in a controlled sequence.
How It Works
In operation, it moves the drill head along a radial arm to reach the hole location. The practical focus is extended spindle reach without repeatedly moving the job. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Industrial Applications
Natural settings include heavy fabrication, maintenance, and machine building. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Radial Drill Machine PM 38.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PRD-38 |
| Drilling Capacity (in steel) | 1.1/2 |
| Max.Dist.From spindle center to column | 36 |
| Min.Dist. From spindle center to column | 12 |
| Vertical travel of arm | 36 |
| Spindle travel | 7 |
| Range of spindle speeds | 190-520 |
| Power Required (R.P.M) for simple drive | 3H.P.(960) |
| Power Required (R.P.M) for Elevating Arm | - |
| Spindle Bore | M.T.NO-4 |
| Pillar Diameter | 8.3/4 |
| Spindle Diameter | 2.3/4 |
| Work Table | 15*15*12 |
| Working Surface of base | 31*21 |
| Floor Space Required | 54*27 |
| Approximate Weight | 1600kgs. |
