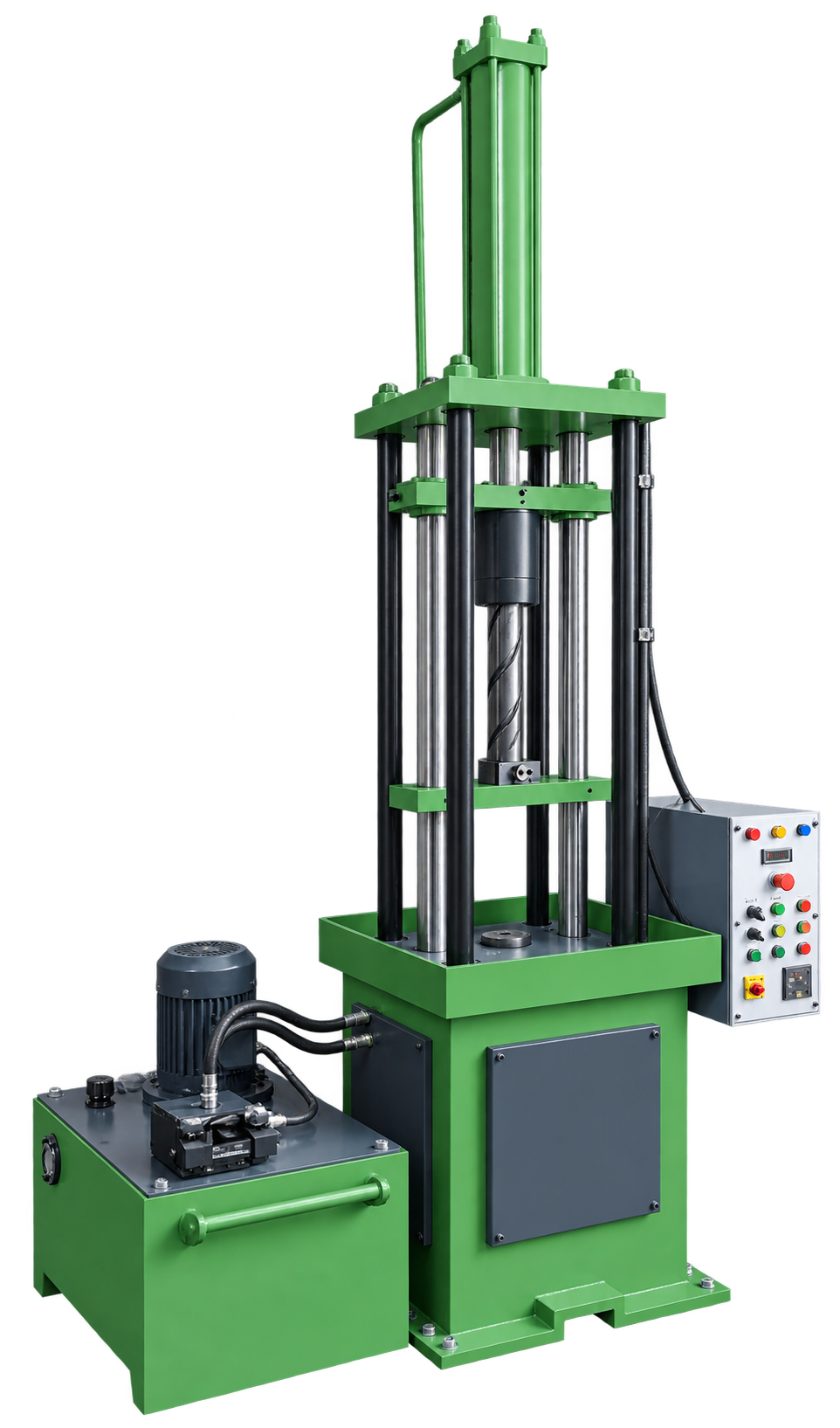

Push Type Broaching Machine For Helical Broaching
A hydraulic push-type broaching machine engineered for suitable helical internal profiles. Available configurations cover a listed 5-20 ton capacity, 100-500 mm stroke and 50-100 mm table-bore range.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
The Push Type Broaching Machine for Helical Broaching is a hydraulic vertical machine designed to push suitable helical broaching tooling through a securely supported workpiece. Its guided construction supports controlled axial travel for manufacturing compatible internal helical forms.
Available configurations cover a listed capacity range from 5 to 20 tons and strokes from 100 to 500 mm. Table-bore diameters range from 50 to 100 mm, allowing the machine and fixture arrangement to be selected for different component and tooling requirements.
The main motor power is listed from 3 to 10 H.P., depending on the selected capacity. Helical broaching requires the tool, workpiece or guiding system to accommodate the required lead and controlled rotation, so the complete tooling and fixture arrangement must be engineered for the specified profile.
Typical applications include suitable internal helical splines, grooves and related profiles. Final selection should be based on the component drawing, work material, helix direction and lead, profile geometry, tolerance, broach design, required force and stroke, fixture support, production volume and desired surface finish.
Specifications
Technical Specifications
| Parameter | Range / Value |
|---|---|
| Stroke | 100 to 500 mm |
| Capacity | 5 to 20 tons |
| Diameter of Bore in Table | 50 to 100 mm |
| Power of Main Motor | 3 H.P. to 10 H.P. |
Specifications represent the configuration ranges shown in the supplied sheet. Confirm the required capacity, stroke, table bore, motor, helical lead, tool-guiding arrangement and electrical supply in the final technical quotation.
Applications
Applications
Vertical Broaching Machine Pull Type Application / Uses Image 1
Vertical Broaching Machine Pull Type Application / Uses Image 10
Vertical Broaching Machine Pull Type Application / Uses Image 11
Vertical Broaching Machine Pull Type Application / Uses Image 12
Vertical Broaching Machine Pull Type Application / Uses Image 2
Vertical Broaching Machine Pull Type Application / Uses Image 3
Vertical Broaching Machine Pull Type Application / Uses Image 4
Vertical Broaching Machine Pull Type Application / Uses Image 5
Vertical Broaching Machine Pull Type Application / Uses Image 6
Vertical Broaching Machine Pull Type Application / Uses Image 7
Vertical Broaching Machine Pull Type Application / Uses Image 8
Vertical Broaching Machine Pull Type Application / Uses Image 9
FAQs
Frequently Asked Questions
What is a push-type helical broaching machine used for?
It pushes purpose-designed broaching tooling through a supported workpiece to produce suitable internal helical splines, grooves or related profiles.
What capacity range is available?
The supplied specification lists configurations from 5 to 20 tons. Required capacity depends on material, profile, stock removal and broach design.
What stroke range is listed?
The available stroke range shown in the supplied specification is 100 to 500 mm.
What table-bore sizes are available?
The table-bore diameter range is listed from 50 to 100 mm, depending on the selected configuration.
What main motor power is specified?
The supplied specification lists main motor power from 3 to 10 H.P., depending on machine capacity.
How is the helical profile produced during broaching?
The tool, workpiece or guide arrangement must permit controlled rotation corresponding to the required helix lead while axial broaching motion takes place. The exact system depends on the tooling design.
Are the helical broach and fixture included?
Tooling scope should be confirmed with the order. Helical broaches, guides and fixtures normally must be engineered for the component profile, material, lead, tolerance and production requirement.
What information is required for a quotation?
Provide the component drawing, material, bore and profile dimensions, helix direction and lead, tolerance, stock allowance, broach details, production quantity and available electrical supply.
