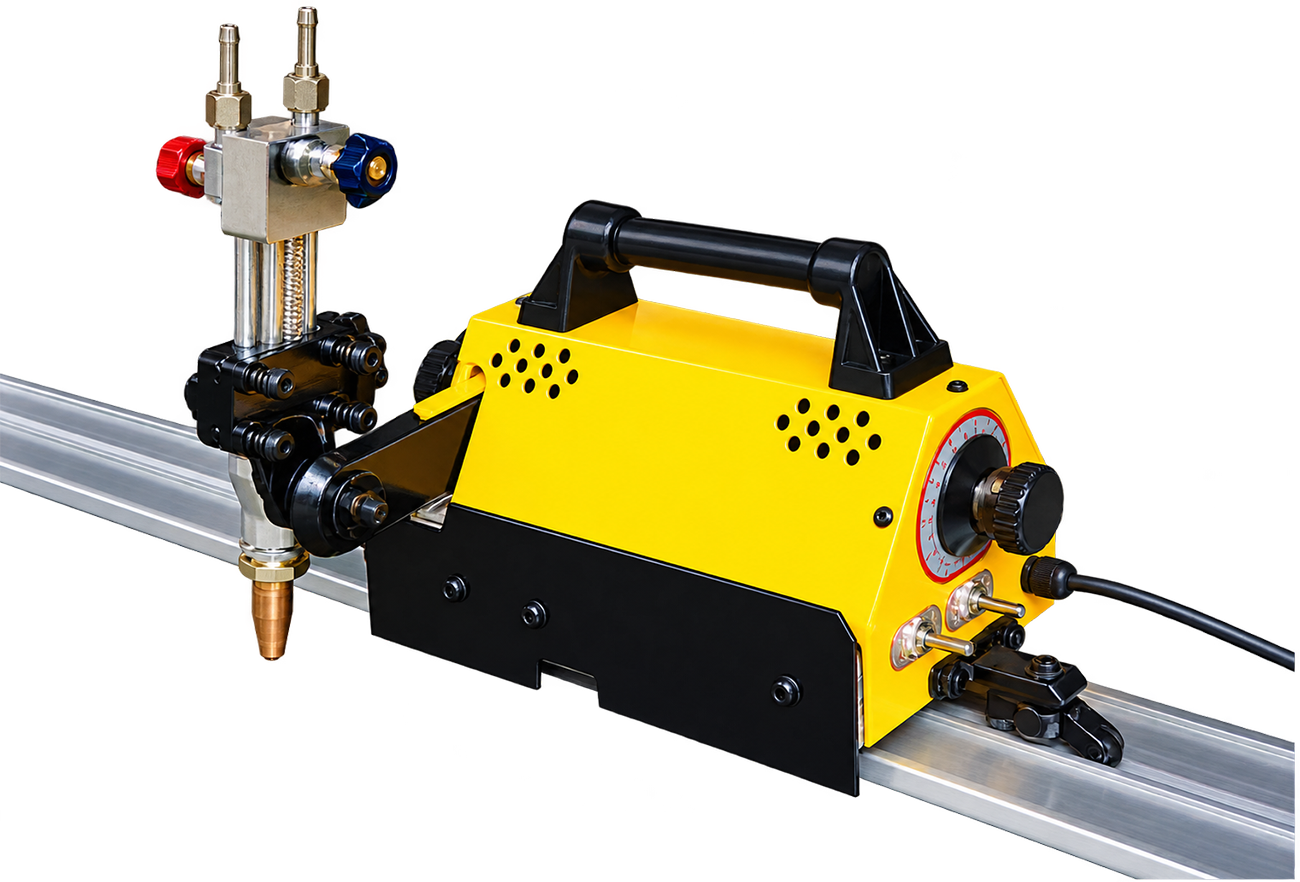

Pug Cutter Machine
A portable rail-guided gas cutting machine for consistent straight, circular and bevel cutting. Model TLPPC offers cutting capacity up to 110 mm, adjustable travel speed and compact workshop portability.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
The Pug Cutter Machine is a compact, rail-guided gas cutting system designed to produce controlled straight cuts, circular cuts and bevels on suitable metal plate. Its powered carriage moves the cutting torch at an adjustable, consistent speed to support cleaner cut edges and repeatable workshop results.
Model TLPPC operates from a 230 +/-15% V single-phase, 50/60 Hz supply. The supplied specification lists cutting capacity up to 110 mm, a cutting-speed range of 100 to 980 mm/min and straight travel of 1.8 metres, extendable in multiples by adding rails.
The torch assembly provides 80 mm horizontal and 60 mm vertical adjustment. It can produce circles from 75 to 1200 mm diameter and bevel cuts up to 45 degrees, giving fabricators flexibility for plate preparation, profiling and weld-edge preparation.
Typical applications include fabrication shops, structural work, maintenance facilities, plate processing and general welding workshops. Actual cutting capacity and quality depend on the material, plate thickness, selected fuel gas and nozzle, oxygen purity and pressure, torch setup, travel speed and operator practice.
Specifications
Technical Specifications
| Parameter | TLPPC |
|---|---|
| Input Voltage | 230 +/-15% V |
| Phase | Single |
| Frequency | 50/60 Hz |
| Cutting Capacity | Up to 110 mm |
| Straight Cut | 1.8 m length or multiples by adding rails |
| Circle Cut | 75-1200 mm diameter |
| Bevel Cutting | Up to 45 degrees |
| Cutting Speed | 100-980 mm/min |
| Horizontal Adjustment of Cutting Torch | 80 mm |
| Vertical Adjustment of Cutting Torch | 60 mm |
| Speed Control | Wire wound potentiometer |
| Inlet Gas Hose Connections for Gas Torch | 1/4" BSP RH & LH |
| Nozzle | NM |
| Dimensions (L x W x H) | 430 x 250 x 240 mm |
| Weight (Approx.) | 10.5 kg |
Accessories
Standard Accessories / Machine Parts

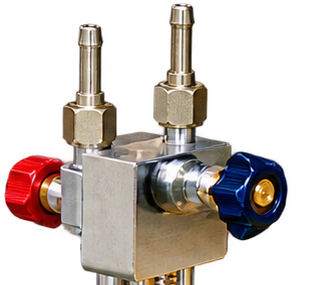

Pug Cutter Machine Img 1

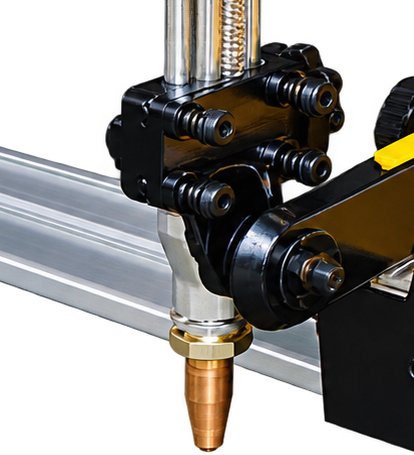

Pug Cutter Machine Img 2

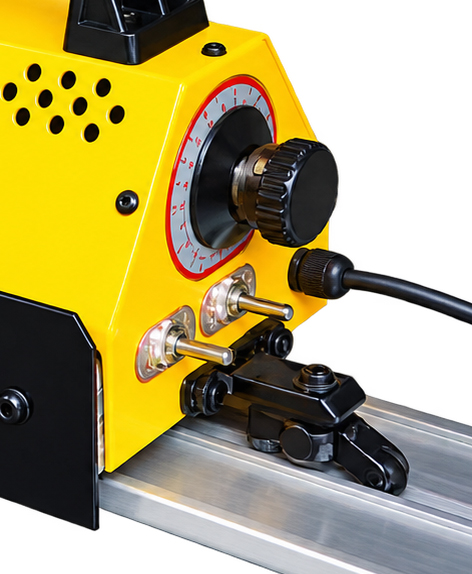

Pug Cutter Machine Img 3
Pug Cutter Machine Img 4
FAQs
Frequently Asked Questions
What is a Pug Cutter Machine used for?
It is a portable, rail-guided gas cutting machine used for controlled straight cutting, circle cutting and bevel preparation on suitable metal plate.
What is the cutting capacity of model TLPPC?
The supplied specification lists cutting capacity up to 110 mm. Actual capacity depends on the material, gas and nozzle selection, oxygen supply, edge condition and required cut quality.
How long a straight cut can the machine make?
The standard listed straight-cut length is 1.8 metres. Longer travel can be obtained in multiples by adding and correctly aligning compatible rails.
Can the Pug Cutter Machine make circular cuts?
Yes. The TLPPC specification lists a circle-cutting range from 75 to 1200 mm in diameter when configured with the appropriate circle-cutting arrangement.
Can it prepare bevelled edges?
Yes. The supplied specification lists bevel cutting up to 45 degrees, subject to correct torch adjustment, plate condition and cutting parameters.
What power supply does the TLPPC require?
It is listed for a 230 V supply with +/-15% tolerance, single phase, at 50/60 Hz. Site electrical compatibility should be confirmed before installation.
What is the machine cutting-speed range?
The listed cutting-speed range is 100 to 980 mm/min, controlled by a wire wound potentiometer.
What should be provided when requesting a quotation?
Provide the material and thickness range, required straight, circular or bevel cuts, fuel gas, available oxygen and electrical supplies, rail length, nozzle preference and expected production volume.
