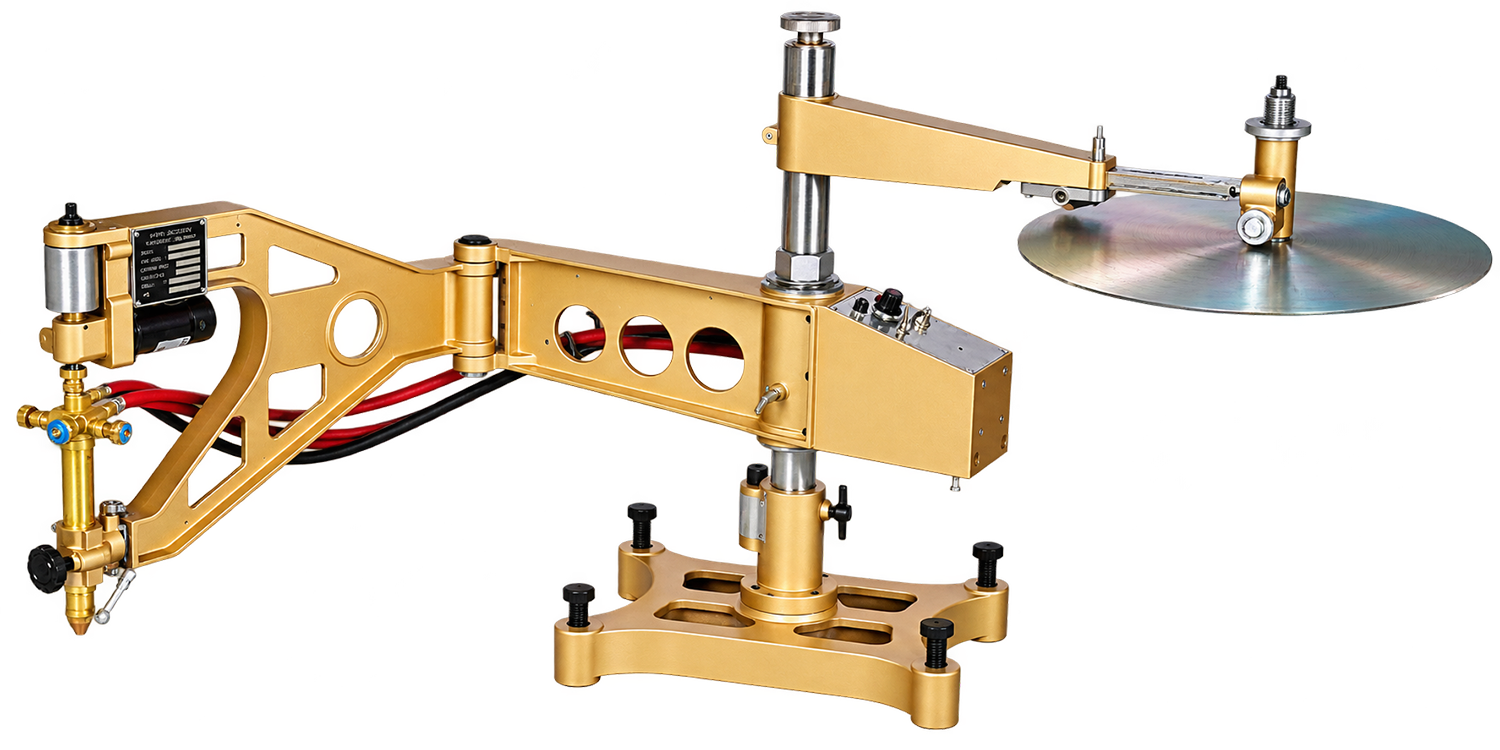

Profile Gas Cutter Machine
A portable gas profile cutting machine for producing repeatable circles, squares, rectangles and other profiles in 5-100 mm steel plate. Model TLP PGC combines adjustable powered travel with a compact pantograph-style mechanism.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
The Profile Gas Cutter Machine is a portable, mechanically guided gas cutting system for producing repeatable profiles in suitable steel plate. Its articulated pantograph-style mechanism follows a template or circular guide while the cutting torch reproduces the required path on the workpiece.
Model TLP PGC is specified for steel plate from 5 to 100 mm thick. The supplied data lists a maximum square profile of 500 x 500 mm, rectangle capacities of 400 x 900 mm or 450 x 750 mm, a cutting length of 1200 mm and a maximum circumferential diameter of 600 mm.
The machine supports profile cutting without the programming requirements of CNC equipment, making it suitable for repetitive fabrication work, repair shops and small- to medium-batch plate processing. Its compact arrangement can be positioned near the job while the stable base supports controlled template-following movement.
Actual capacity, edge quality and productivity depend on steel grade and thickness, template accuracy, fuel gas, oxygen purity and pressure, nozzle selection, torch setup, travel speed and operator practice. Appropriate ventilation, flashback protection, personal protective equipment and fire controls are required during operation.
Specifications
Technical Specifications
| Parameter | TLP PGC |
|---|---|
| Cutting Steel Plate Thickness | 5-100 mm |
| Cutting Speed (as listed in source) | 50-750/mm |
| Largest Square Cutting Size | 500 x 500 mm |
| Rectangle Cutting Size | 400 x 900 mm or 450 x 750 mm |
| Cutting Length | 1200 mm |
| Maximum Circumferential Diameter | 600 mm |
| Dimensions | 1390 x 335 x 800 mm |
Note: The supplied specification image prints the cutting-speed value as "50-750/mm" without a conventional time-based unit. Confirm the intended speed unit in the final technical quotation.
Accessories
Standard Accessories / Machine Parts

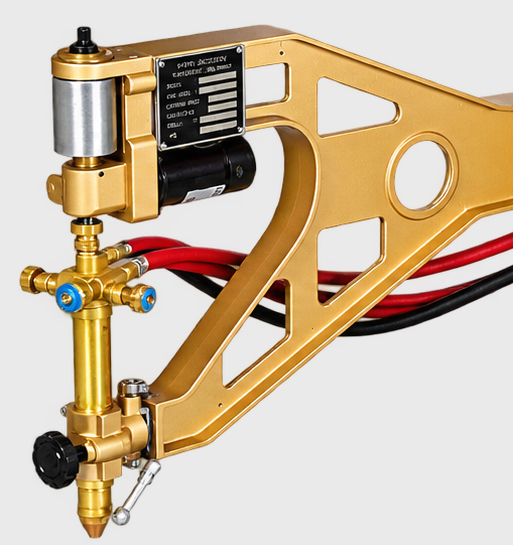

Profile Gas Cutter Img 1

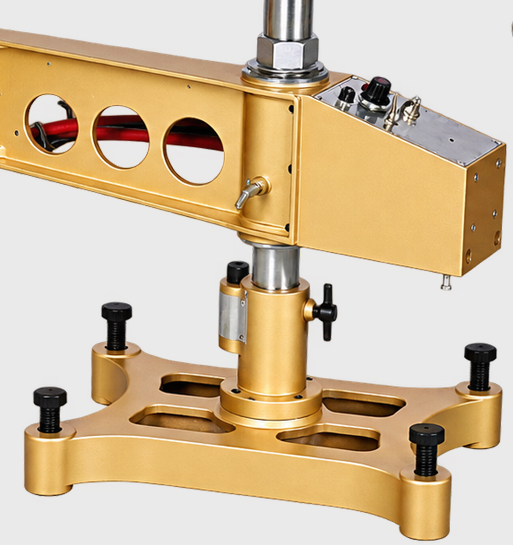

Profile Gas Cutter Img 2

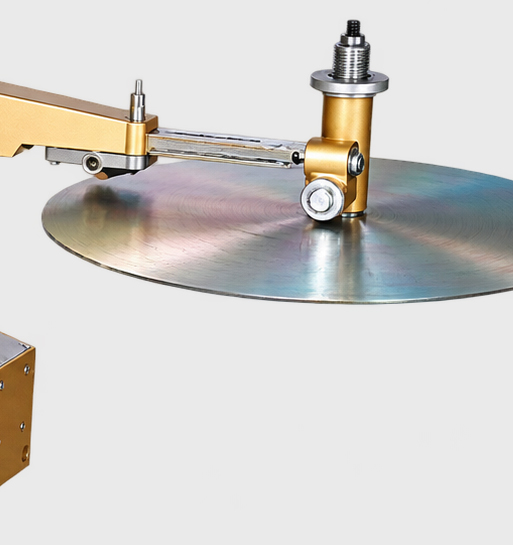

Profile Gas Cutter Img 3
FAQs
Frequently Asked Questions
What is a Profile Gas Cutter Machine used for?
It is used to reproduce circles, squares, rectangles and other suitable profiles in steel plate by guiding a gas cutting torch around a template or circular path.
What steel thickness can the TLP PGC cut?
The supplied specification lists a steel plate cutting range of 5 to 100 mm. Actual capacity depends on steel grade, gas supply, nozzle, torch settings and required edge quality.
What is the largest listed square profile?
The largest square cutting size shown in the supplied specification is 500 x 500 mm.
What rectangle sizes can it produce?
The listed rectangle sizes are 400 x 900 mm or 450 x 750 mm, subject to the selected setup, template and workpiece arrangement.
What is the maximum circumferential cutting diameter?
The source specification lists a maximum circumferential diameter of 600 mm.
Does this machine require CNC programming?
No CNC programming is normally required. The mechanism mechanically follows an appropriate template or guide, so template quality and correct setup directly affect the finished profile.
Which gases and nozzles should be used?
Gas and nozzle selection depends on the plate material, thickness, desired quality and site supply. Confirm the recommended fuel gas, oxygen pressure, flashback protection and nozzle series for the application.
What information should be included with an enquiry?
Provide the steel grade and thickness, required profile shapes and sizes, production quantity, template details, available fuel gas and oxygen supply, desired cut quality and workplace conditions.
