Press Machines
Power Hammer Economic Hercules Type
For work involving bars, billets, tools, and forged components, the Power Hammer Economic Hercules Type offers a process-specific solution. The operating method supports forge shops, tool production, and blacksmith workshops and centres on repetitive impact that reduces manual hammering.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

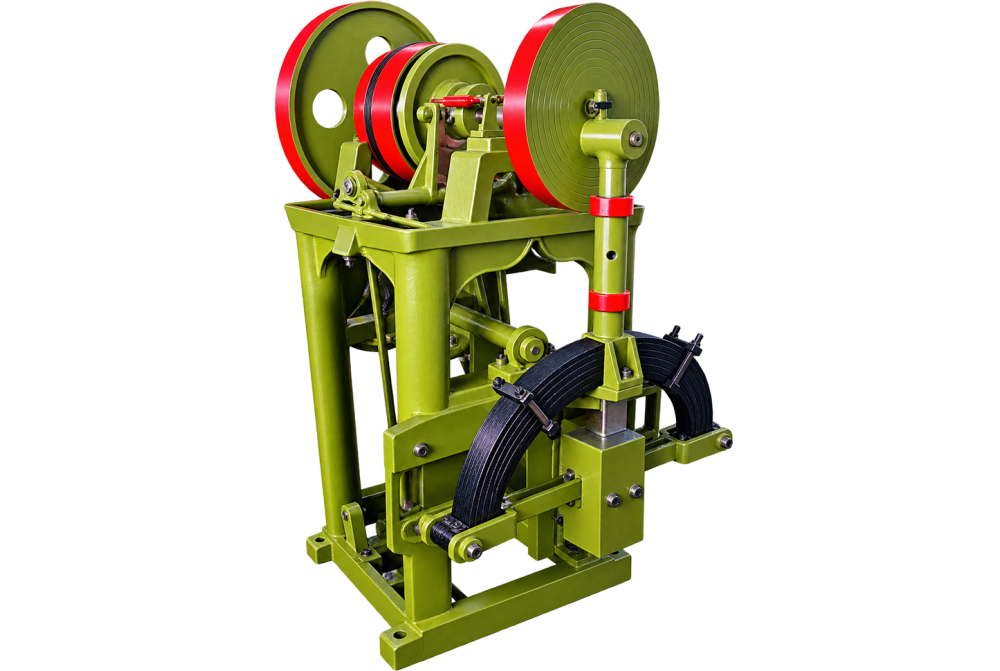

Power Hammer Economic Hercules Type
Machine Purpose
The Power Hammer Economic Hercules Type provides a dedicated method of forging and shaping heated metal. Rather than acting as unrelated general equipment, it brings the working elements together around bars, billets, tools, and forged components.
How It Works
A typical cycle begins with locating the job correctly, after which the machine delivers repeated powered blows between upper and lower tooling. Its repetitive impact that reduces manual hammering supports repeat work without replacing the need for trained operation.
Industrial Applications
The machine is applicable to forge shops, tool production, and blacksmith workshops. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within press machines can differ in arrangement and capability. The required Power Hammer Economic Hercules Type should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | PAH-15L | PAH-25L | PAH-40L | PAH-55L | PAH-75L | PAH-110L |
| Weight of falling parts(kg) | 15 | 25 | 40 | 55 | 75 | 110 |
| Hitting energy (kj) | 0.16 | 0.27 | 0.53 | 0.7 | 1 | 1.98 |
| Hitting frequency (min-1) | 300 | 250 | 245 | 230 | 210 | 180 |
| Height of working area (mm) | 160 | 240 | 245 | 270 | 297 | 355 |
| D-Depth of throat(mm) | 170 | 235 | 270 | 300 | 330 | 400 |
| Working Piece | 30 x 30 (Square) | 40 x 40 (Square) | 52 x 52 (Square) | 60x60 (Square) | 65x65 (Square) | 110x110 (Square) |
| 035 (Round mm) | 048 (Round mm | 068 (Round mm | 075 (Round mm | 085 (Round mm | 0120 (Round mm | |
| Power (kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 |
| Weight (Include Base) | 540 | 1100 | 1390 | 1700 | 2640 | 3300 |
Accessories
Standard Accessories / Machine Parts
Hercules Hammer Dies
Applications
Applications
Agricultural Tools
Tractor Hook Rings
Sledge Hammers
Chisel
Knives Swords
Axe Hand Tools
FAQs
Frequently Asked Questions
What is a Power Hammer Economic Hercules Type used for?
The Power Hammer Economic Hercules Type is intended for forging and shaping heated metal. It is arranged around bars, billets, tools, and forged components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Power Hammer Economic Hercules Type?
The machine delivers repeated powered blows between upper and lower tooling. Its repetitive impact that reduces manual hammering supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Power Hammer Economic Hercules Type?
It is primarily associated with bars, billets, tools, and forged components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Power Hammer Economic Hercules Type?
Typical users include forge shops, tool production, and blacksmith workshops. In these settings, the Power Hammer Economic Hercules Type may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Power Hammer Economic Hercules Type?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Power Hammer Economic Hercules Type be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Power Hammer Economic Hercules Type price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Power Hammer Economic Hercules Type.
