Wood Working Machines

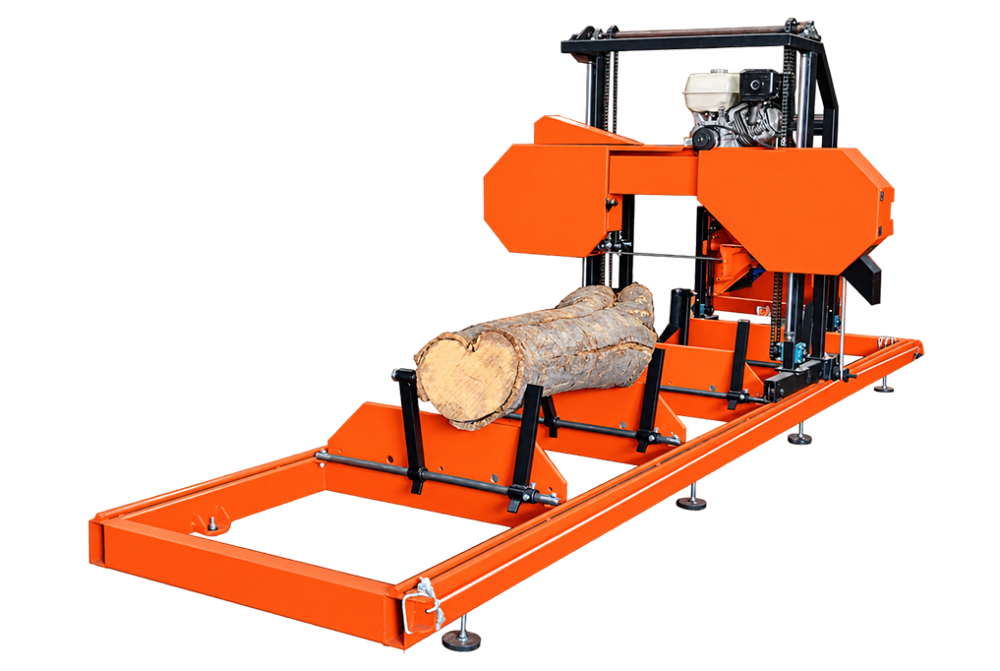

Portable Saw Mill Trolley Type Bandsaw
For work involving bars, tubes, profiles, timber, or title-specific stock, the Portable Saw Mill Trolley Type Bandsaw offers a process-specific solution. Typical users include material stores, fabrication shops, sawmills, and workshops, where continuous cutting with stable blade guidance is valuable. Its portable format takes the operation to the job or installed component.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Portable Saw Mill Trolley Type Bandsaw
Machine Purpose
Used for cutting stock with a continuous band blade, the Portable Saw Mill Trolley Type Bandsaw addresses a distinct stage of industrial work. It accommodates bars, tubes, profiles, timber, or title-specific stock and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Likely users are found in material stores, fabrication shops, sawmills, and workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
Its cycle is based on the way it guides a tensioned loop blade through supported material. The design therefore prioritises continuous cutting with stable blade guidance; actual output still depends on the chosen model, tool, workpiece, and operating method. Its portable format takes the operation to the job or installed component.
Selection Considerations
When comparing versions of the Portable Saw Mill Trolley Type Bandsaw, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Wheel (Diameter x Width) | Casting 18"x1.5" |
| Blade (Length x Width) | 13"x1.5" |
| Power Option | Petrol 10HP-3600 rpm (Honda GX390, Manual Start) 10HP 3 Phase Electric Motor |
| Bed Size | 5m x 1m (Custom Bed Length Available) |
| Max. Log Diameter Cutting Capacity | 24" |
| Max. Length of Cut | 14' (can be extended with bed extension) |
| Max. Width of Cut | 24" |
| Max. Depth of Cut | 10" |
| Band Saw Head Reverse Forward Up-Down | Manual Hand Crank |
| Blade Height Indication | Red pointer on a scale |
| Number of Side Supports for Log | 3 Nos |
| Number of Log Clamps | 3 Nos |
| Number of Bed Leveling Feet | 8 Nos |
| Blade Guide Arm | Fixed |
FAQs
Frequently Asked Questions
Why is a Portable Saw Mill Trolley Type Bandsaw used in industrial work?
The Portable Saw Mill Trolley Type Bandsaw is intended for cutting stock with a continuous band blade. It is arranged around bars, tubes, profiles, timber, or title-specific stock, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Portable Saw Mill Trolley Type Bandsaw?
The machine guides a tensioned loop blade through supported material. Its continuous cutting with stable blade guidance supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Portable Saw Mill Trolley Type Bandsaw handle?
It is primarily associated with bars, tubes, profiles, timber, or title-specific stock. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Portable Saw Mill Trolley Type Bandsaw typically installed?
Typical users include material stores, fabrication shops, sawmills, and workshops. In these settings, the Portable Saw Mill Trolley Type Bandsaw may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Portable Saw Mill Trolley Type Bandsaw?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Portable Saw Mill Trolley Type Bandsaw?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Portable Saw Mill Trolley Type Bandsaw?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Portable Saw Mill Trolley Type Bandsaw.
How does portable construction affect the Portable Saw Mill Trolley Type Bandsaw?
Its portable format takes the operation to the job or installed component. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
