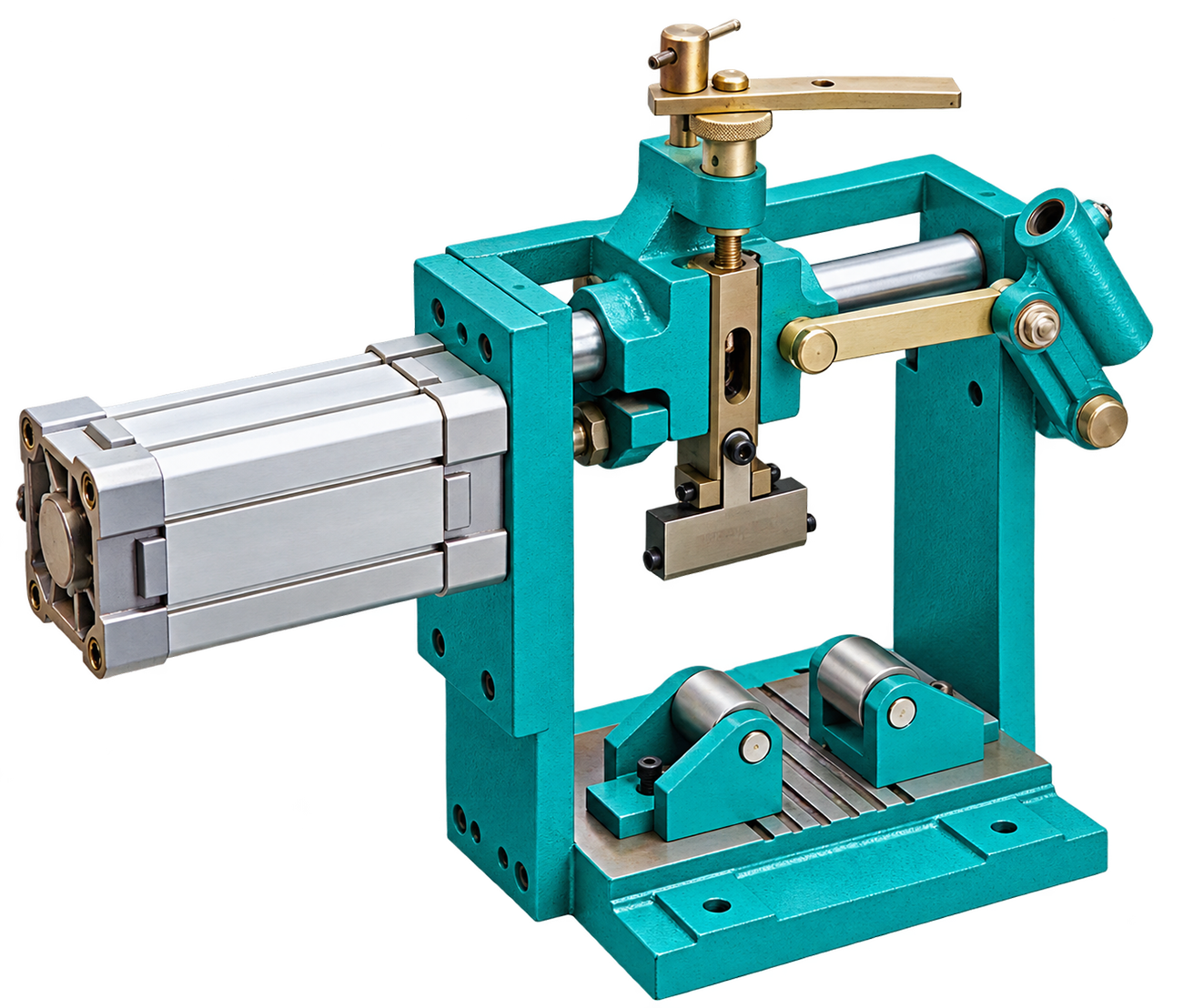

Pneumatic Roll Making Machine
A compact pneumatically actuated roll making machine designed for repeatable workshop production with interchangeable holders. The supplied TLPRM-1 compatibility chart covers selected T-series tooling and components.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
The Pneumatic Roll Making Machine is a compact workshop unit designed to use compressed-air actuation for controlled, repeatable roll-making work. Pneumatic operation can reduce repetitive manual effort while the rigid frame, adjustable work area and support rollers help maintain consistent setup.
The supplied technical sheet identifies model TLPRM-1 and lists interchangeable holder arrangements for selected T-series components. Holder codes include 8 R 20, 8 R 40, 8 R 60, 125 R 1000, 125 R 2000 and 250 R 1000.
The machine is suited to hose-related workshops, repair facilities and production environments that require repeated cycles with straightforward operator control. Its compact bench-mounting base supports stable installation, while the pneumatic actuator assists the working motion.
The appropriate holder, tooling, air preparation and machine adjustment must be confirmed for each application. Finished dimensions depend on component material and geometry, holder and tooling condition, air supply, setup and operator procedure; sample validation is recommended before production.
Specifications
Technical Specifications
| Holder Code | Compatible For (IST) |
|---|---|
| 8 R 20 | T-010 / T-020 / T-030 / T-040 |
| 8 R 40 | T-010 / T-020 / T-030 / T-040 / T-050 / T-060 |
| 8 R 60 | T-010 / T-020 / T-030 / T-040 / T-050 / T-060 |
| 125 R 1000 | T-062 |
| 125 R 2000 | T-062 |
| 250 R 1000 | T-093 / T-125 |
Source note: The supplied specification sheet identifies the model as TLPRM-1 and provides holder compatibility only. Required air pressure, air consumption, cycle rate and dimensions are not stated; confirm these values and the required holder in the final technical quotation.
Accessories
Standard Accessories / Machine Parts

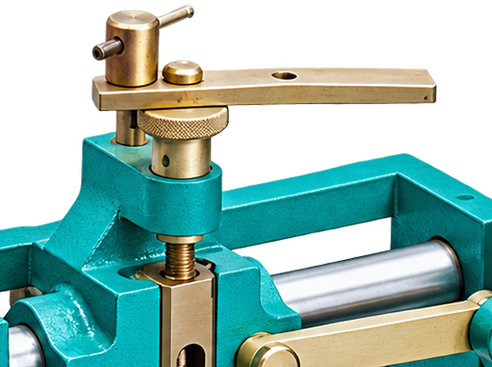

Pneumatic Roll Making Machine Img 1

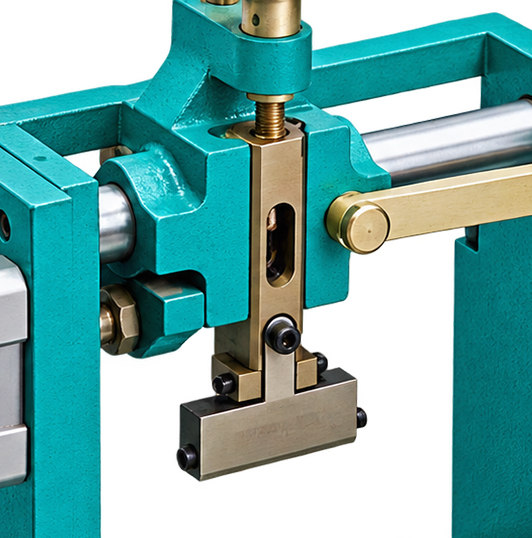

Pneumatic Roll Making Machine Img 2

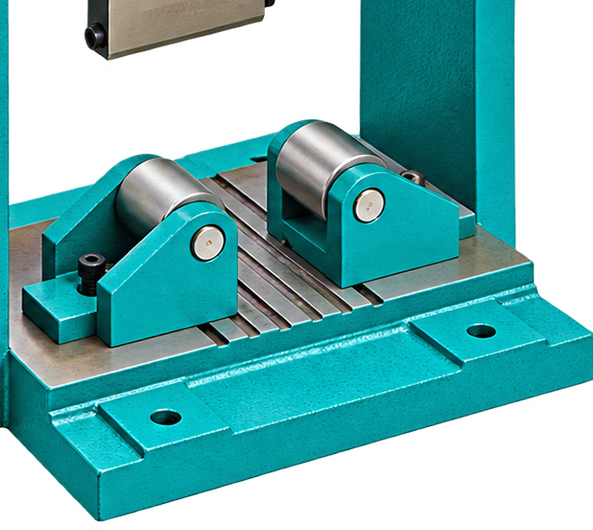

Pneumatic Roll Making Machine Img 3

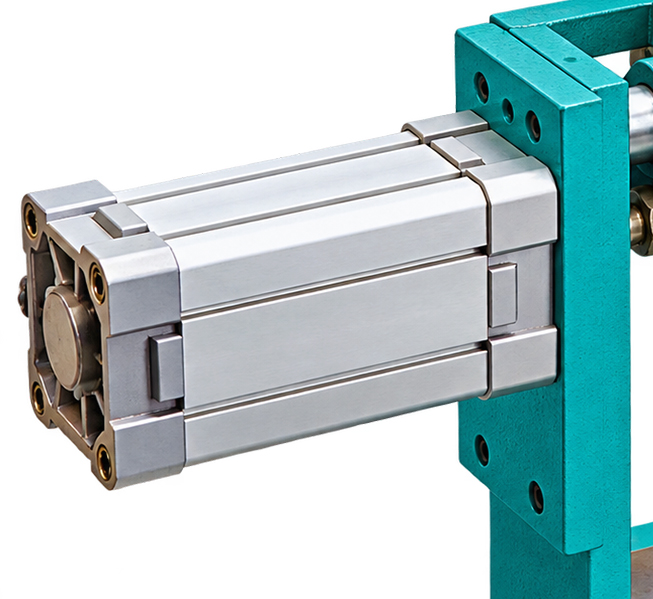

Pneumatic Roll Making Machine Img 4
Applications
Applications

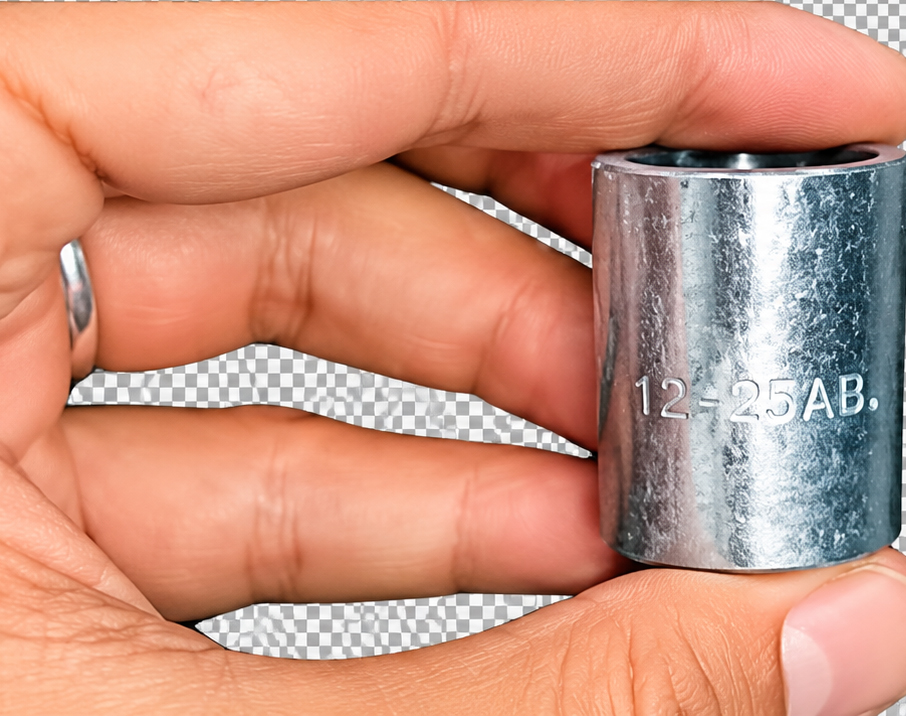

Roll Making Machine Application / Uses Image 1

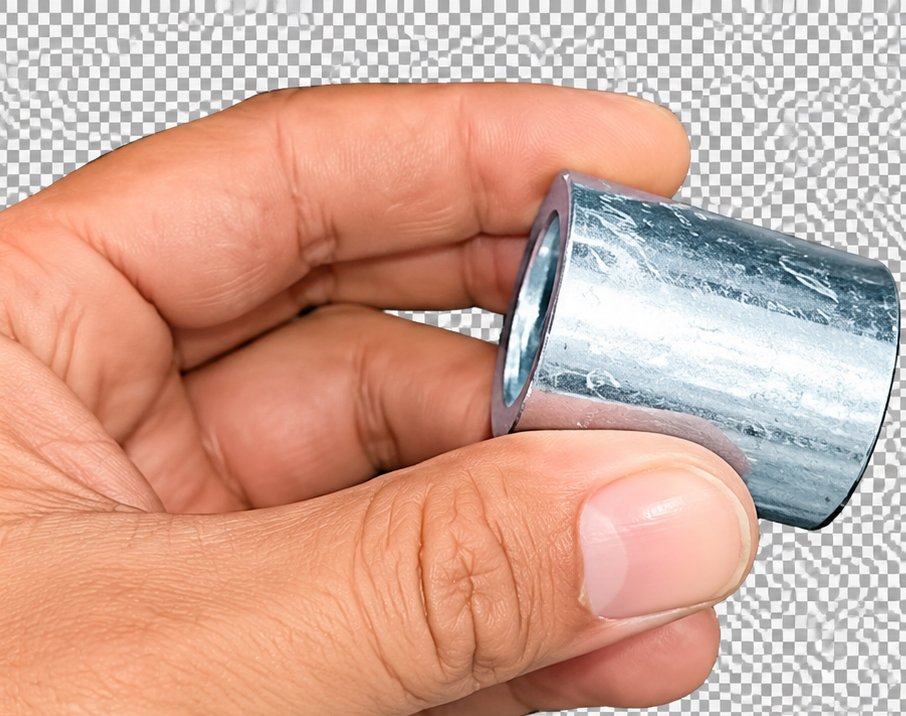

Roll Making Machine Application / Uses Image 2
FAQs
Frequently Asked Questions
What is the Pneumatic Roll Making Machine used for?
It is used for controlled roll-making work with compatible holders and tooling, using pneumatic actuation to assist repeatable workshop production.
What model is shown in the supplied specification?
The supplied compatibility sheet identifies the model as TLPRM-1. Confirm the exact pneumatic configuration in the final quotation.
What compressed-air supply is required?
The supplied sheet does not state pressure or air-consumption requirements. These must be confirmed for the offered pneumatic configuration before installation.
Which holder codes are listed?
The supplied chart lists 8 R 20, 8 R 40, 8 R 60, 125 R 1000, 125 R 2000 and 250 R 1000 holders.
Which holders are compatible with T-062?
The compatibility chart lists holder codes 125 R 1000 and 125 R 2000 for T-062.
Which holder is listed for T-093 and T-125?
Holder code 250 R 1000 is listed as compatible with T-093 and T-125.
What air preparation is recommended?
Use a clean, dry and regulated compressed-air supply appropriate to the confirmed actuator specification. Follow the machine instructions for filtration, lubrication and isolation requirements.
What information should be supplied with an enquiry?
Provide the component reference, material, finished profile, production volume, holder or tooling details, dimensional tolerances and available compressed-air pressure and capacity.
