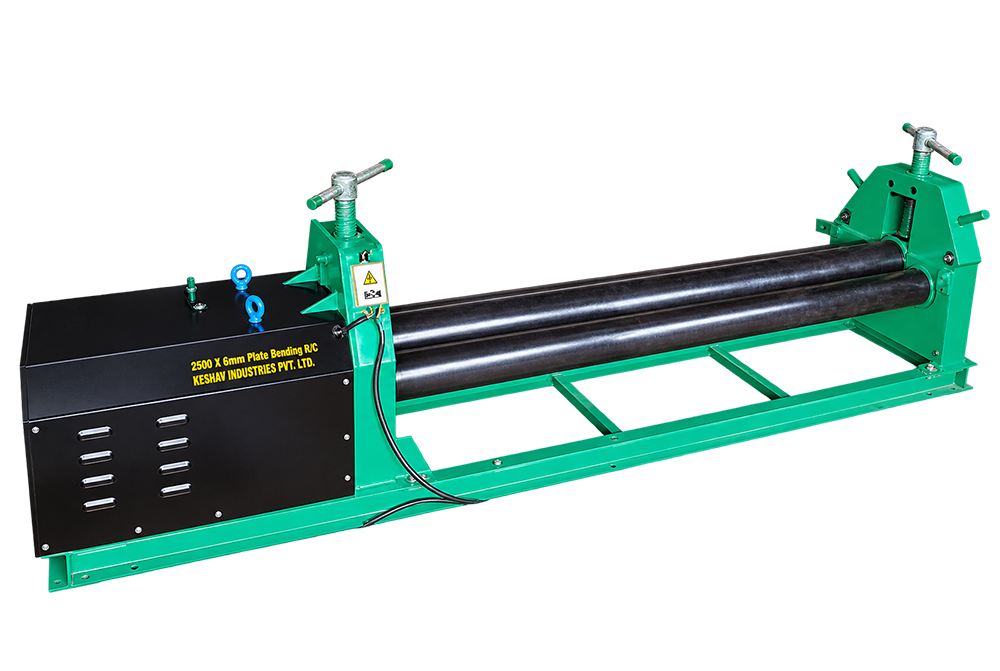

Plate Bending Rolling Machine PBG
Built around forming sheet, plate, pipe, bar, or sections into required shapes, the Plate Bending Rolling Machine PBG provides a dedicated working arrangement. Its dedicated tooling that supports material during forming suits structural fabrication, sheet-metal shops, and component production.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Plate Bending Rolling Machine PBG
Machine Purpose
The Plate Bending Rolling Machine PBG provides a dedicated method of forming sheet, plate, pipe, bar, or sections into required shapes. Rather than acting as unrelated general equipment, it brings the working elements together around the metal stock identified by the machine title.
How It Works
A typical cycle begins with locating the job correctly, after which the machine draws, presses, or rolls supported material around suitable tooling. Its dedicated tooling that supports material during forming supports repeat work without replacing the need for trained operation.
Industrial Applications
Likely users are found in structural fabrication, sheet-metal shops, and component production. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Plate Bending Rolling Machine PBG.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
|
MODEL
|
CAPACITY |
DIA. OF TOP ROLL (MM)
|
DIA. OF BOTTOM ROLL (MM)
|
MAIN MOTOR (MM)
|
| PBA3-12 | 1250 x 3 | 100 | 90 | 2 |
| PBA6-12 | 1250 x 6 | 125 | 105 | 3 |
| PBA10-12 | 1250 x 10 | 150 | 125 | 5 |
| PBA12-12 | 1250 x 12 | 175 | 140 | 7.5 |
| PBA16-12 | 1250 x 16 | 190 | 150 | 7.5 |
| PBA20-12 | 1250 x 20 | 200 | 160 | 10 |
| PBA25-12 | 1250 x 25 | 240 | 200 | 15 |
| PBA3-15 | 1500 x 3 | 115 | 100 | 3 |
| PBA6-15 | 1500 x 6 | 140 | 115 | 5 |
| PBA10-15 | 1500 x 10 | 160 | 135 | 5 |
| PBA12-15 | 1500 x 12 | 180 | 150 | 7.5 |
| PBA16-15 | 1500 x 16 | 200 | 160 | 10 |
| PBA20-15 | 1500 x 15 | 215 | 170 | 12.5 |
| PBA25-15 | 1500 x 25 | 250 | 215 | 20 |
| PBA3-20 | 2000 x 3 | 130 | 105 | 3 |
| PBA6-20 | 2000 x 6 | 160 | 135 | 5 |
| PBA10-20 | 2000 x 10 | 185 | 150 | 7.5 |
| PBA12-20 | 2000 x 12 | 205 | 165 | 10 |
| PBA16-20 | 2000 x 16 | 220 | 175 | 12.5 |
| PBA20-20 | 2000 x 20 | 230 | 190 | 15 |
| PBA25-20 | 2000 x 25 | 275 | 230 | 25 |
| PBA30-20 | 2000 x 30 | 310 | 260 | 30 |
| PBA3-25 | 2500 x 3 | 150 | 125 | 5 |
| PBA6-25 | 2500 x 6 | 170 | 150 | 7.5 |
| PBA10-25 | 2500 x 10 | 200 | 170 | 10 |
| PBA12-25 | 2500 x 12 | 230 | 180 | 15 |
| PBA16-25 | 2500 x 16 | 240 | 200 | 20 |
| PBA20-25 | 2500 x 20 | 260 | 215 | 20 |
| PBA25-25 | 2500 x 25 | 300 | 260 | 30 |
| PBA30-25 | 2500 x 30 | 330 | 280 | 40 |
| PBA36-25 | 2500 x 36 | 345 | 300 | 50 |
| PBA42-25 | 2500 x 42 | 400 | 350 | 50 |
| PBA50-25 | 2500 x 50 | 425 | 375 | 60 |
| PBA3-30 | 3000 x 3 | 175 | 150 | 7.5 |
| PBA6-30 | 3000 x 6 | 200 | 170 | 10 |
| PBA10-30 | 3000 x 10 | 240 | 200 | 15 |
| PBA12-30 | 3000 x 12 | 260 | 220 | 20 |
| PBA16-30 | 3000 x 16 | 275 | 225 | 20 |
| PBA20-30 | 3000 x 20 | 290 | 220 | 25 |
| PBA25-30 | 3000 x 25 | 330 | 280 | 40 |
| PBA30-30 | 3000 x 30 | 360 | 330 | 40 |
| PBA36-30 | 3000 x 36 | 385 | 340 | 50 |
| PBA42-30 | 3000 x 42 | 430 | 380 | 50 |
FAQs
Frequently Asked Questions
Why is a Plate Bending Rolling Machine PBG used in industrial work?
The Plate Bending Rolling Machine PBG is intended for forming sheet, plate, pipe, bar, or sections into required shapes. It is arranged around the metal stock identified by the machine title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Plate Bending Rolling Machine PBG?
The machine draws, presses, or rolls supported material around suitable tooling. Its dedicated tooling that supports material during forming supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Plate Bending Rolling Machine PBG handle?
It is primarily associated with the metal stock identified by the machine title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Plate Bending Rolling Machine PBG typically installed?
Typical users include structural fabrication, sheet-metal shops, and component production. In these settings, the Plate Bending Rolling Machine PBG may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Plate Bending Rolling Machine PBG?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Plate Bending Rolling Machine PBG?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Plate Bending Rolling Machine PBG?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Plate Bending Rolling Machine PBG.
