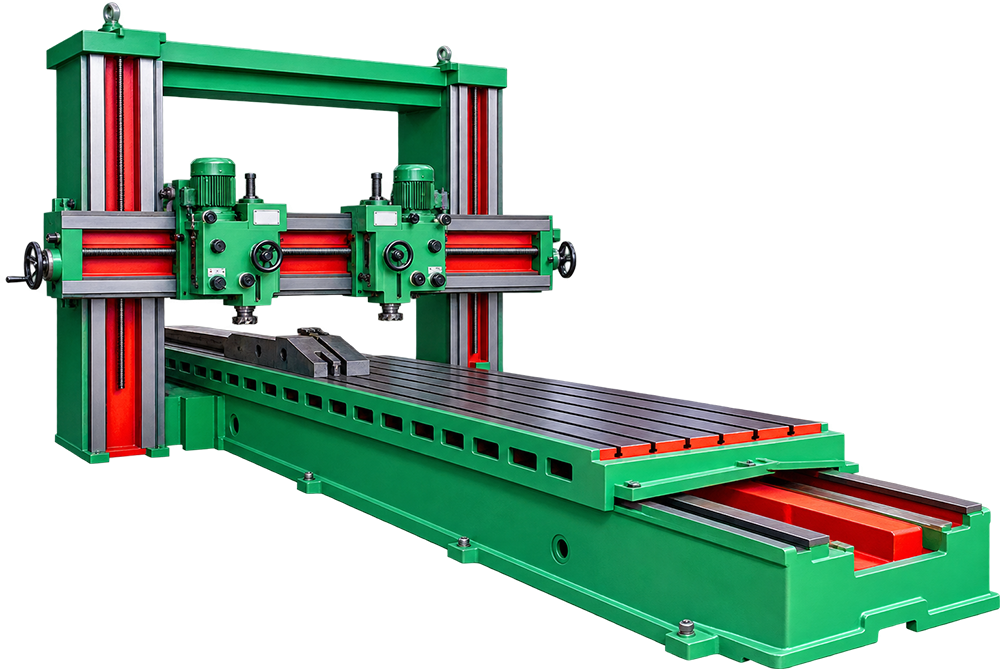

Plano Milling Machine
The Plano Milling Machine is designed for machining faces, slots, keyways, and contoured features. Its controlled table travel and rigid cutter support suits tool rooms, maintenance departments, and component factories.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Plano Milling Machine
Machine Purpose
Used for machining faces, slots, keyways, and contoured features, the Plano Milling Machine addresses a distinct stage of industrial work. It accommodates machine parts, dies, fixtures, and repair components and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
The machine is applicable to tool rooms, maintenance departments, and component factories. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
In operation, it feeds supported work against a rotating multi-edge cutter. The practical focus is controlled table travel and rigid cutter support. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Plano Milling Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | 1218/1225/1235 | 1625/1635/1645 | 2035/2045/2060 |
| Table Size (mm) | 800 x 2100/2800/3800 | 950 x 2800/3800/4800 | 1300 x 3800/4800/6300 |
| Table Stroke (mm) | 1800/2500/3500 | 2500/3500/4500 | 3500/4500/6000 |
| No. of T - Slots | 5 | 6 | 8 |
| Width of T - Slots (mm) | 20 | 20 | 20 |
| Distance Between T -Slots (mm) | 145 | 150 | 150 |
| Table Feed Stepless (mm/min) | 40-600 | 40-600 | 40-600 |
| Table Rapid Stepless (mm/min) | 3000 | 3000 | 3000 |
| Table Feed Motor (hp) | 2/3/3 | 3/5/5 | 5/7.5/7.5 |
| Width Between Column (mm) | 1200 | 1600 | 2000 |
|
Maximum Height under Spindle (mm) |
1000 | 1000 | 1000 |
| Vertical Traverse of cross Rail (mm) | 1030 | 1030 | 1030 |
| Vertical Feed of Cross Rail (mm/min) | 300 | 300 | 300 |
| Cross Rail Feed Motor (hp) | 3 | 3 | 3 |
| Horizontal Traverse of one Saddle (mm) | 1700 | 2100 | 2500 |
| Saddle Cross Feed Motor (hp) | 3 | 3 | 3 |
| Saddle Cross Feed Stepless (mm/min) | 40-600 | 40-600 | 40-600 |
| Saddle Cross Rapid Stepless (mm/min) | 2200 | 2200 | 2200 |
| Milling Head | |||
| RPM | 80-500 | 80-500 | 80-500 |
| Speeds | Variable (2 step) | Variable (2 step)/div> | Variable (2 step) |
| Motor (hp) | 5 | 5 | 5 |
| Spindle Nose | 150-50 | 150-50 | 150-50 |
| Quill Traverse (manual) (mm) | 100 | 100 | 100 |
| Maximum Cutter Die (mm) | 125/160 | 125/160 | 125/160 |
| Swivel (manual) | .45'' | .45'' | .45'' |
| Standard | - | (standard machine comes with one vertical head) | - |
| Optional | - | Up to four (Two on cross slide ) (Two , One each on Both Columns ) | - |
| Overall Size ( L x B x H) | 2700/3750/5250 x 3035 x 2900 | 3750/5250/6750 x 3435 x 2900 | 5250/6750/9000 x 3835 x 2900 |
Accessories
Standard Accessories / Machine Parts
Automatic lifting & lowering of cross rail
Fixed or swivel head up to 45
Forced lubrication for guideways & gearboxes
Preventing trouble due to faulty operation
Rapid operation to cross traverse of the milling head
Safety cluthes for electrical & mechanical interlocking is provided for
Speed range covers both carbide & H.S.S. tools
Step less table feeds & rapid system
Suitable for milling,Drilling,Facing Boring & Grinding
Accessories
Optional Accessories
Automatic Locking of the Cross Rail
Bellow covers to the guideways
Boring Head on Either of Side Columns
Digital Read Out
Extra Milling Head on Cross Rail
Extra milling head on either or both the columns
Grinding Head On Cross Rail
Optical read out
Right angle milling attachment
Videos
Product Videos
FAQs
Frequently Asked Questions
Which operation is the Plano Milling Machine designed to perform?
The Plano Milling Machine is intended for machining faces, slots, keyways, and contoured features. It is arranged around machine parts, dies, fixtures, and repair components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Plano Milling Machine work?
The machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Plano Milling Machine?
It is primarily associated with machine parts, dies, fixtures, and repair components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Plano Milling Machine?
Typical users include tool rooms, maintenance departments, and component factories. In these settings, the Plano Milling Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Plano Milling Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Plano Milling Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Plano Milling Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Plano Milling Machine.
