Pillar Type H Type Power Press
Sheet Metal Machines

Pillar Type H Type Power Press

The Pillar Type H Type Power Press handles components and materials named by the product title through a layout intended for applying controlled force for forming, fitting, punching, or compaction. It advances a guided working member against supported material, with rigid reaction support around the working zone.

Enquire Now Technical Specifications

Order By Phone

Shipping Information Usually dispatched With In business days

+91-91240-09247 +91-88959-29247
Overview

Product Overview

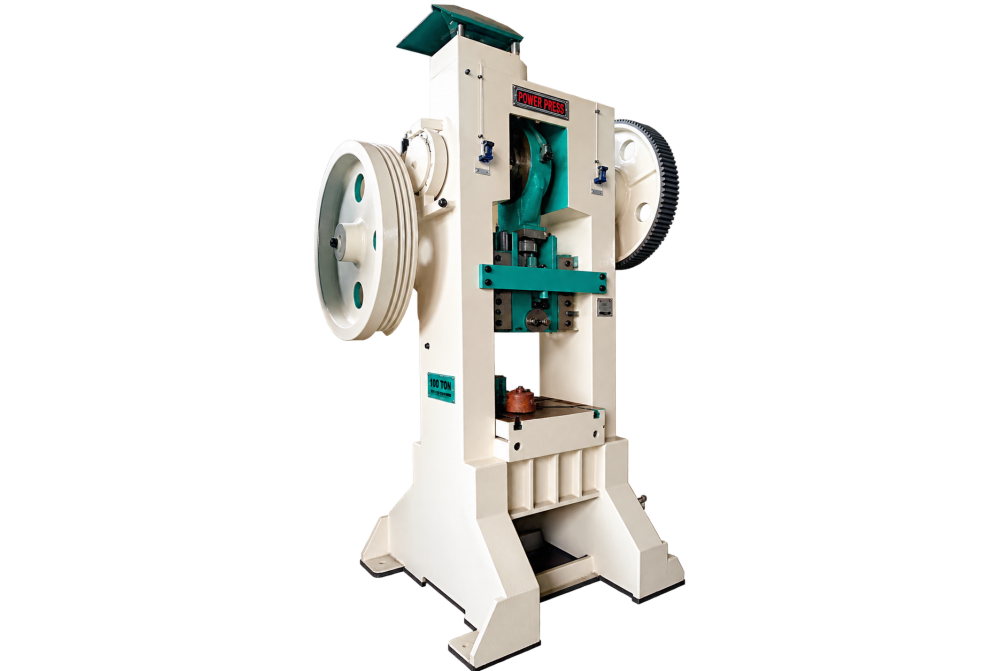

Pillar Type H Type Power Press

Machine Purpose

The Pillar Type H Type Power Press is a purpose-built unit for applying controlled force for forming, fitting, punching, or compaction. Its layout is organised around components and materials named by the product title, making it relevant when this operation must be completed in a controlled sequence.

How It Works

In operation, it advances a guided working member against supported material. The practical focus is rigid reaction support around the working zone. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.

Industrial Applications

Natural settings include fabrication, assembly, maintenance, and production workshops. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.

Selection Considerations

When comparing versions of the Pillar Type H Type Power Press, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.

Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.

Specifications

Technical Specifications

Model

   PP3
30 Tons 		PP5
50 Tons 		PP7
75 Tons 		PP10
100 Tons

PP15
150 Tons

PP20
200 Tons 		PP25
250 Tons
Dia of Crank Shaft mm 100 115 125 150 175 200 225
Adjustability of Stroke mm 76 100 100 125 150 150 150
Punch Bore in Ram mm 31 38 38 45 50 50 57
Width of Bed mm 450 500 600 700 750 800 900
Length of Bed mm 450 500 600 700 750 800 900
Gear Dia mm 600 650 890 960 1060 1125 1200
Fly Wheel Dia mm 700 800 900 1000 1125 1200 1275
Gap (Bed to Bottom ) mm 350 375 400 450 500 550 600
Stroke per Minute mm 60 45 40 40 35 35 35
H.P. Required (1440) mm 3 5 7.5 10 15 20 25
Bore in Bed mm 140 160 190 220 250 275 290
Weight in kgs (Approx) mm 1550 2050 3300 4600 6000 8400 10000
