Drilling Machines

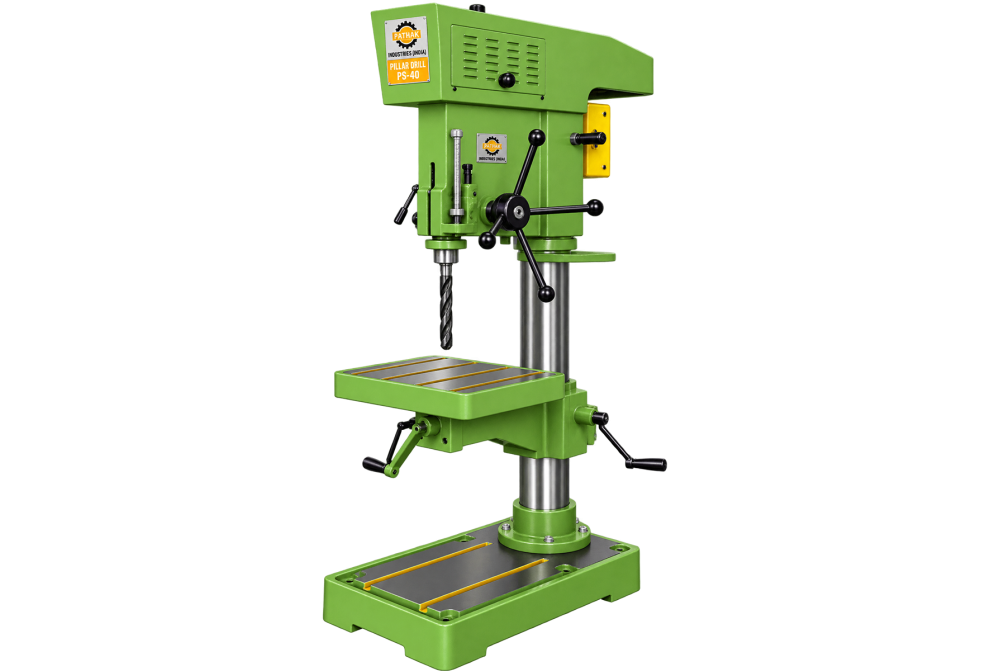

Pillar Drill Machine PM 40
The Pillar Drill Machine PM 40 is designed for creating positioned holes and related hole-finishing work. Typical users include engineering workshops, maintenance departments, and production floors, where stable spindle guidance and practical feed control is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Pillar Drill Machine PM 40
Machine Purpose
The Pillar Drill Machine PM 40 provides a dedicated method of creating positioned holes and related hole-finishing work. Rather than acting as unrelated general equipment, it brings the working elements together around metal parts, plates, castings, and fabricated assemblies.
How It Works
Its cycle is based on the way it feeds a rotating tool axially into the supported component. The design therefore prioritises stable spindle guidance and practical feed control; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Likely users are found in engineering workshops, maintenance departments, and production floors. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Machines within drilling machines can differ in arrangement and capability. The required Pillar Drill Machine PM 40 should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PS-40 |
| Titling working table | Fixed |
| Drilling capacity | 40 mm |
| Pilllar diameter | 121 mm |
| Spindle nose to table distance | 595 mm |
| Distance from spindle nose to base distance | 1050 mm |
| Distance from spindle centre to pillar surface (in mm) | 320 (max) |
| Table level | 480 mm |
| Taper in spindle | MT-4 |
| number of speed | 8 speed |
| Range of speed (RPM) | 70 to 2000 |
| Table size (in mm) | 410 x 410 |
| Base size (m/c area in mm) | 440 x 715 |
| Overall base size (in mm) | 445 x 720 |
| Spindle travel | 250 mm |
| Pillar length | 1450 mm |
| Overall height with pulley gurad | 1860 mm |
| V-belt section | B-59 |
| Weight (Approx) | 325 kgs |
| Motor 1440 RPM 3 Phase 440 Volts | 2 H.P |
| Shipping wooden case | 860x460 |
| Inner size LxWxH | 1580 mm |
Accessories
Standard Accessories / Machine Parts
Motor Pulley
Accessories
Optional Accessories
Coolant Pump With Tank
Electric Motor & Starter
Machine Lamp
Motor Pulley
Videos
Product Videos
Short Videos
YouTube Short Videos
Applications
Applications
Tool Rooms
Workshops
Educational Institutes
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
FAQs
Frequently Asked Questions
What is a Pillar Drill Machine PM 40 used for?
The Pillar Drill Machine PM 40 is intended for creating positioned holes and related hole-finishing work. It is arranged around metal parts, plates, castings, and fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Pillar Drill Machine PM 40?
The machine feeds a rotating tool axially into the supported component. Its stable spindle guidance and practical feed control supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Pillar Drill Machine PM 40?
It is primarily associated with metal parts, plates, castings, and fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Pillar Drill Machine PM 40?
Typical users include engineering workshops, maintenance departments, and production floors. In these settings, the Pillar Drill Machine PM 40 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Pillar Drill Machine PM 40?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Pillar Drill Machine PM 40 be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Pillar Drill Machine PM 40 price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Pillar Drill Machine PM 40.
