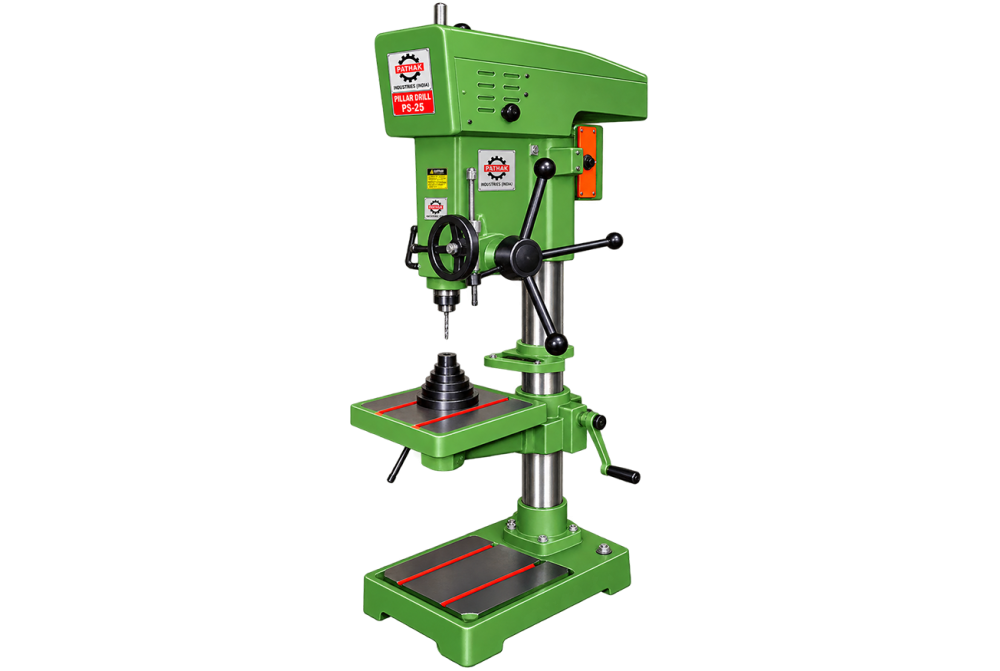

Pillar Drill Machine PM 25
The Pillar Drill Machine PM 25 handles metal parts, plates, castings, and fabricated assemblies through a layout intended for creating positioned holes and related hole-finishing work. Typical users include engineering workshops, maintenance departments, and production floors, where stable spindle guidance and practical feed control is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Pillar Drill Machine PM 25
Machine Purpose
The Pillar Drill Machine PM 25 provides a dedicated method of creating positioned holes and related hole-finishing work. Rather than acting as unrelated general equipment, it brings the working elements together around metal parts, plates, castings, and fabricated assemblies.
How It Works
In operation, it feeds a rotating tool axially into the supported component. The practical focus is stable spindle guidance and practical feed control. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Industrial Applications
Likely users are found in engineering workshops, maintenance departments, and production floors. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Pillar Drill Machine PM 25.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PS-25 |
| Titling working table | Fixed |
| Drilling capacity | 25 mm |
| Pilllar diameter | 92 mm |
| Spindle nose to table distance | 660 mm |
| Distance from spindle nose to base distance | 1050 mm |
| Distance from spindle centre to pillar surface (in mm) | 250 (max) |
| Table level | 480 mm |
| Taper in spindle | MT-3 |
| number of speed | 8 speed |
| Range of speed (RPM) | 130 to 2600 |
| Table size (in mm) | 330 x 330 |
| Base size (m/c area in mm) | 365 x 575 |
| Overall base size (in mm) | 370 x 580 |
| Spindle travel | 180 mm |
| Pillar length | 1410 mm |
| Overall height with pulley gurad | 1730 mm |
| V-belt section | B-52" |
| Weight (Approx) | 225 kgs |
| Motor 1440 RPM 3 Phase 440 Volts | 1 H.P |
| Shipping wooden case | 860x450 |
| Inner size LxWxH | 1770 mm |
Accessories
Standard Accessories / Machine Parts
Motor Pulley
Accessories
Optional Accessories
Coolant Pump With Tank
Electric Motor & Starter
Machine Lamp
Videos
Product Videos
Short Videos
YouTube Short Videos
Applications
Applications
Tool Rooms
Workshops
Educational Institutes
Fasteners Industries
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
FAQs
Frequently Asked Questions
What is a Pillar Drill Machine PM 25 used for?
The Pillar Drill Machine PM 25 is intended for creating positioned holes and related hole-finishing work. It is arranged around metal parts, plates, castings, and fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Pillar Drill Machine PM 25?
The machine feeds a rotating tool axially into the supported component. Its stable spindle guidance and practical feed control supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Pillar Drill Machine PM 25?
It is primarily associated with metal parts, plates, castings, and fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Pillar Drill Machine PM 25?
Typical users include engineering workshops, maintenance departments, and production floors. In these settings, the Pillar Drill Machine PM 25 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Pillar Drill Machine PM 25?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Pillar Drill Machine PM 25 be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Pillar Drill Machine PM 25 price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Pillar Drill Machine PM 25.
