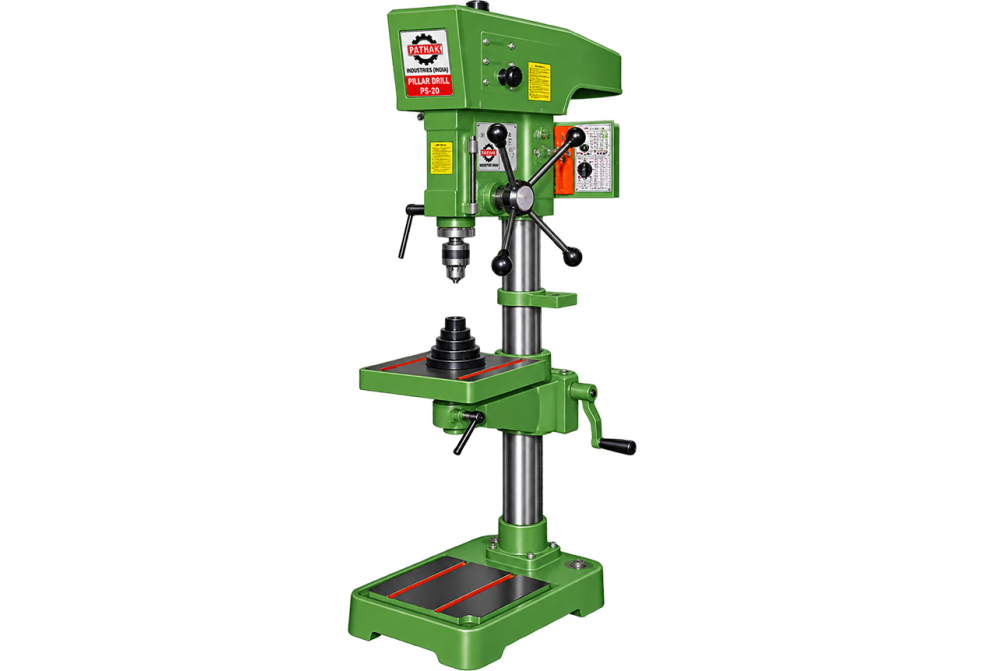

Pillar Drill Machine PM 20
The Pillar Drill Machine PM 20 is designed for creating positioned holes and related hole-finishing work. It feeds a rotating tool axially into the supported component, with stable spindle guidance and practical feed control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Pillar Drill Machine PM 20
Machine Purpose
The Pillar Drill Machine PM 20 is a purpose-built unit for creating positioned holes and related hole-finishing work. Its layout is organised around metal parts, plates, castings, and fabricated assemblies, making it relevant when this operation must be completed in a controlled sequence.
How It Works
A typical cycle begins with locating the job correctly, after which the machine feeds a rotating tool axially into the supported component. Its stable spindle guidance and practical feed control supports repeat work without replacing the need for trained operation.
Industrial Applications
The machine is applicable to engineering workshops, maintenance departments, and production floors. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Pillar Drill Machine PM 20.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PS-20 |
| Titling working table | Fixed |
| Drilling capacity | 20 mm |
| Pilllar diameter | 74.30 mm |
| Spindle nose to table distance | 660 mm |
| Distance from spindle nose to base distance | 900 mm |
| Distance from spindle centre to pillar surface (in mm) | 200 (max) |
| Table level | 200mm |
| Taper in spindle | MT-2 |
| number of speed | 8 speed |
| Range of speed (RPM) | 87 to 3324 |
| Table size (in mm) | 260 x 260 |
| Base size (m/c area in mm) | 480 x 300 |
| Overall base size (in mm) | 490 x 310 |
| Spindle travel | 130 mm |
| Pillar length | 1170 mm |
| Overall height with pulley gurad | 1420 mm |
| V-belt section | A-42 |
| Weight (Approx) | 100 kgs |
| Motor 1440 RPM 3 Phase 440 Volts | 1 H.P |
| Shipping wooden case | 660x380 |
| Inner size LxWxH | 1400 mm |
