Scrap Bailing Machines
Pet Bottle Vertical Press
For work involving components and materials named by the product title, the Pet Bottle Vertical Press offers a process-specific solution. The operating method supports fabrication, assembly, maintenance, and production workshops and centres on rigid reaction support around the working zone. The vertical arrangement affects loading, support, and access to the work.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

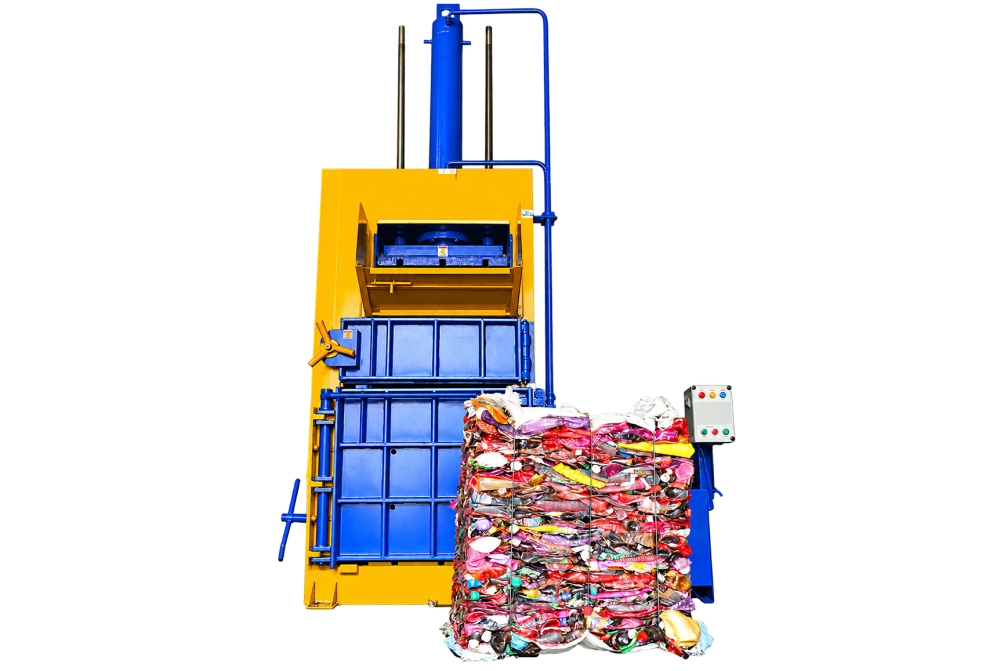

Pet Bottle Vertical Press
Machine Purpose
The Pet Bottle Vertical Press provides a dedicated method of applying controlled force for forming, fitting, punching, or compaction. Rather than acting as unrelated general equipment, it brings the working elements together around components and materials named by the product title.
How It Works
A typical cycle begins with locating the job correctly, after which the machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports repeat work without replacing the need for trained operation. The vertical arrangement affects loading, support, and access to the work.
Industrial Applications
The machine is applicable to fabrication, assembly, maintenance, and production workshops. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within scrap bailing machines can differ in arrangement and capability. The required Pet Bottle Vertical Press should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PETVB 30 | PETVB 40 | PETVB 50 | PETVB 75 |
| Capacity | 30 Ton Pressure Capacity.(O frame) Single Chamber Single Cylinder Baler Machine | 40 Ton Pressure Capacity.(O frame) Single Chamber Single Cylinder Baler Machine | 50 Ton Pressure Capacity.(O frame) Single Chamber Single Cylinder Baler Machine | 75 Ton Pressure Capacity.(O frame) Single Chamber Single Cylinder Baler Machine |
| Bale Size | 30(L)x20(W) in inch | 30(L)x20(W) in inch | 30(L)x20(W) in inch | 30(L)x20(W) in inch |
| Bale Weight | Plastic Bottle 50 to 80 kg | Plastic Bottle 50 to 100 kg | Plastic Bottle 100 to 150 kg | Plastic Bottle 150 to 200 kg |
| Chamber Size | 30(L)x20(W)x50(H) in inch | 30(L)x20(W)x56(H) in inch | 30(L)x20(W)x64(H) in inch | 30(L)x20(W)x70(H) in inch |
| No of Cylinder | 1 Nos. | 1 Nos. | 1 Nos. | 1 Main+1 Pusher (2 Nos.) |
| No. of Tie | 3 Nos. | 3 Nos. | 3 Nos. | 4 Nos. |
| No. of Door | 2 Nos. | 2 Nos. | 2 Nos. | 2 Nos. |
| Cylinder Size | 150 (Bore)x180 (OD)x100 (Ram)x1100 (Stroke) mm | 160 (Bore)x195 (OD)x105 (Ram)x1200 (Stroke) mm | 170 (Bore)x205 (OD)x110 (Ram)x1300 (Stroke) mm | 200 (Bore)x245 (OD)x135 (Ram)x1500 (Stroke) mm |
| Bale Eject | Swing Plat with Screw Systems | Swing Plat with Screw Systems | Swing Plat with Screw Systems | Cylinder Systems |
| Oil Tank Capacity | 150 lit. | 200 lit. | 200 lit. | 400 lit. |
| Production Rates | 20 to 25 minutes | 20 to 25 minutes | 20 to 25 minutes | 20 to 25 minutes |
| Hydraulic System | Gear Pump Systems | Vane Pump Systems | Double Pump Systems | Double Pump Systems |
| Day Light Gap | 50 inch | 56 inch | 64 inch | 70 inch |
| Operation | Hand Levers Operate Systems | Hand Levers Operate Systems | Hand Levers Operate Systems | Hand Levers Operate Systems |
| Electric Motor Make ISI | 7.5 HP Motor,3 Phase,1440 RPM,50 HZ | 10 HP Motor,3 Phase,1440 RPM,50 HZ | 10 HP Motor,3 Phase,1440 RPM,50 HZ | 15 HP Motor,3 Phase,1440 RPM,50 HZ |
| Overall Dimension | 84(L)x36(W)x120(H) in inch | 84(L)x36(W)x140(H) in inch | 84(L)x36(W)x150(H) in inch | 90(L)x70(W)x160(H) in inch |
| Body Plate | 8 mm,12 mm,30 mm | 8 mm,12 mm,30 mm | 8 mm,12 mm,30 mm | 8 mm,12 mm,30 mm |
FAQs
Frequently Asked Questions
Which operation is the Pet Bottle Vertical Press designed to perform?
The Pet Bottle Vertical Press is intended for applying controlled force for forming, fitting, punching, or compaction. It is arranged around components and materials named by the product title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Pet Bottle Vertical Press work?
The machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Pet Bottle Vertical Press?
It is primarily associated with components and materials named by the product title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Pet Bottle Vertical Press?
Typical users include fabrication, assembly, maintenance, and production workshops. In these settings, the Pet Bottle Vertical Press may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Pet Bottle Vertical Press models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Pet Bottle Vertical Press require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Pet Bottle Vertical Press vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Pet Bottle Vertical Press.
When is vertical arrangement useful on a Pet Bottle Vertical Press?
The vertical arrangement affects loading, support, and access to the work. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
