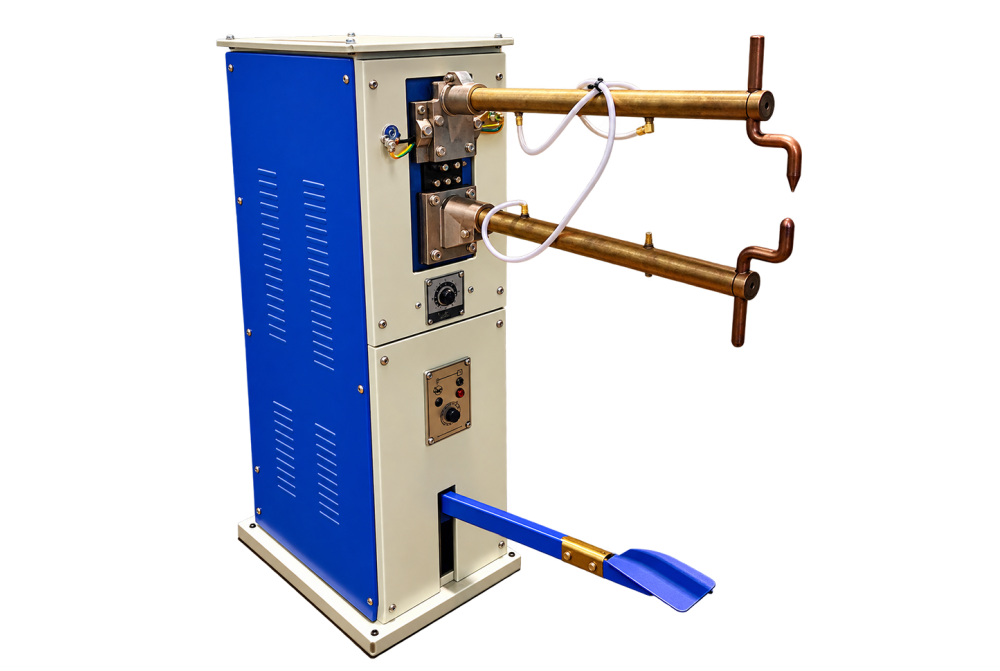

Pedal Opeated Spot Welding Machine
The Pedal Opeated Spot Welding Machine is designed for joining overlapping sheet parts at localised points. Its combined electrode pressure and resistance heating suits automotive bodies, cabinets, appliances, and battery work.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Pedal Opeated Spot Welding Machine
Machine Purpose
Used for joining overlapping sheet parts at localised points, the Pedal Opeated Spot Welding Machine addresses a distinct stage of industrial work. It accommodates sheet assemblies, wire products, and small components and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Likely users are found in automotive bodies, cabinets, appliances, and battery work. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
In operation, it clamps sheets between electrodes and passes current through the joint. The practical focus is combined electrode pressure and resistance heating. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
When comparing versions of the Pedal Opeated Spot Welding Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | PSW-8 | PSW- 10 | PSW-12 | PSW-15 | PSW20 |
| KVA Rating @50% duty Cycle (KVA) | 8 | 10 | 12 | 15 | 20 |
| Input Supply (Volts) | 230 / 440 | 230 / 440 | 230 / 440 | 380 / 440 | 380 / 440 |
| Phase | 1/2 | 1/2 | 1/2 | 2 | 2 |
|
Single Phase (2 Lines of 3 Phase Supply)
|
|||||
| Insulation Class | A (Cu.) | A (Cu.) | A (Cu.) | A (Cu.) | A(Cu.) |
| Nomination Throat Clearance (MM) | 230 | 230 | 230 | 230 | 230 |
| Throat Depth (MM) | 450 | 450 | 450 | 450 | 450 |
| Max.Electrode Stroke (MM) | 40 | 40 | 40 | 40 | 40 |
| Nominal Electrode Force (Approx kg.) | 100 | 100 | 100 | 100 | 100 |
| Max.Available short circuit current (k.Amps.) | 7.5 | 7.5 | 8 | 10 | 12 |
|
Welding Range
|
|||||
| Mild Steel Thickness (MM) | 2.0 0.3 | 2.5 0.3 | 3.0 0.4 | 3.0 0.5 | 3.5 0.6 |
| Brass Steel Thickness (MM) | 0.9 0.1 | 1.1 0.2 | 1.2 0.25 | 1.5 0.3 | 2.0 0.3 |
| Stainless Steel Thickness (MM) | 1.8 0.25 | 2.2 0. 28 | 2.4 0.32 | 2.4 0.35 | 3.0 0.4 |
| Cooling for Arms & Electrods | Water | Water | Water | Water | Water |
| Cooling |
Nataral Air
|
||||
| Approx Dimensions (HLW) MM | 1200 660 450 | 1200 660 450 | 1200 660 450 | 1200 660 450 | 1200 700 500 |
| Weight With arm Approx (KG) | 150 | 155 | 155 | 155 | 185 |
Videos

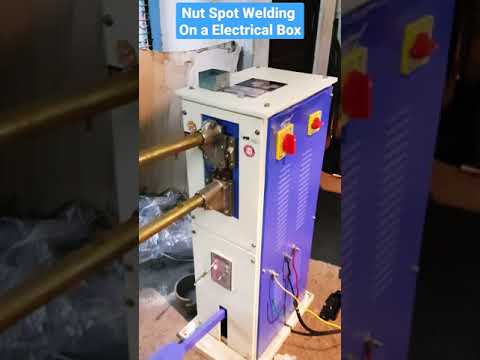

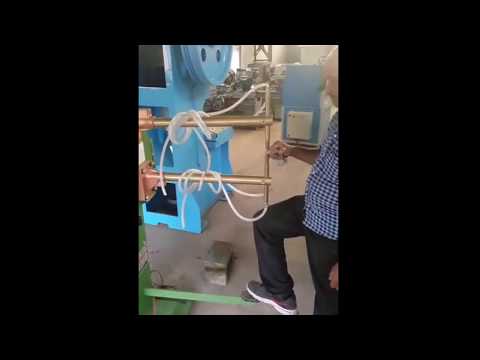

Product Videos
Short Videos
YouTube Short Videos
FAQs
Frequently Asked Questions
Why is a Pedal Opeated Spot Welding Machine used in industrial work?
The Pedal Opeated Spot Welding Machine is intended for joining overlapping sheet parts at localised points. It is arranged around sheet assemblies, wire products, and small components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Pedal Opeated Spot Welding Machine?
The machine clamps sheets between electrodes and passes current through the joint. Its combined electrode pressure and resistance heating supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Pedal Opeated Spot Welding Machine handle?
It is primarily associated with sheet assemblies, wire products, and small components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Pedal Opeated Spot Welding Machine typically installed?
Typical users include automotive bodies, cabinets, appliances, and battery work. In these settings, the Pedal Opeated Spot Welding Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Pedal Opeated Spot Welding Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Pedal Opeated Spot Welding Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Pedal Opeated Spot Welding Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Pedal Opeated Spot Welding Machine.
