Wood Working Machines

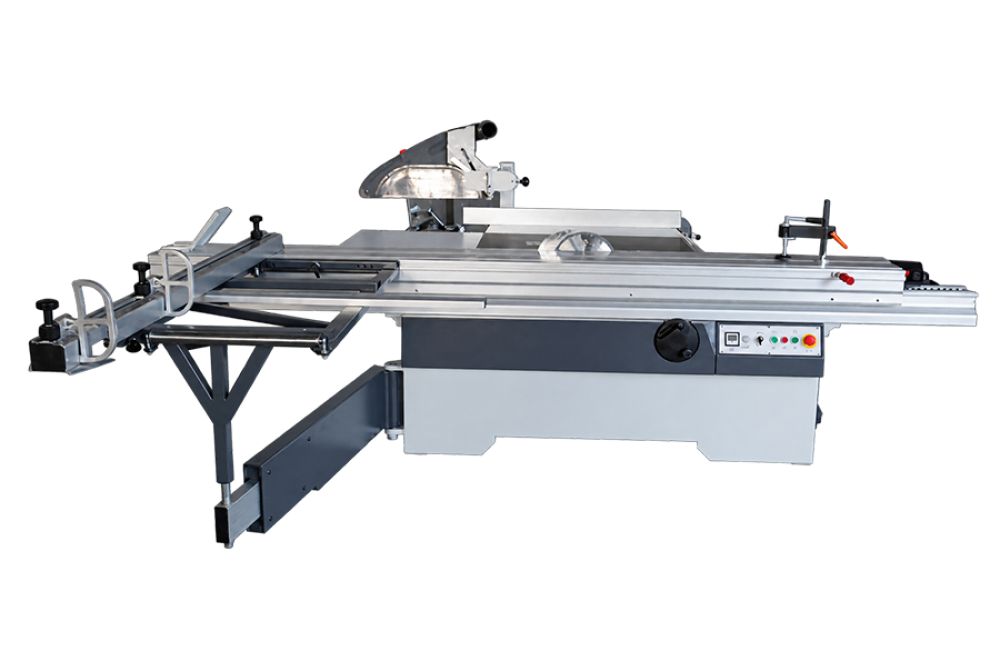

Panel Saw Machine
The Panel Saw Machine handles plywood, MDF, particle board, and laminated panels through a layout intended for sizing large board panels into rectangular components. Typical users include furniture factories, cabinet shops, and interior fit-out, where broad panel support with straight guided cutting is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Panel Saw Machine
Machine Purpose
The Panel Saw Machine provides a dedicated method of sizing large board panels into rectangular components. Rather than acting as unrelated general equipment, it brings the working elements together around plywood, MDF, particle board, and laminated panels.
How It Works
A typical cycle begins with locating the job correctly, after which the machine guides a circular saw through supported sheet material. Its broad panel support with straight guided cutting supports repeat work without replacing the need for trained operation.
Industrial Applications
The machine is applicable to furniture factories, cabinet shops, and interior fit-out. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Panel Saw Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| DESCRIPTION | PPS-300 | PPS-150 |
| Dimension of Sliding Table | 3000 x 375 mm | 1500x310mm |
| Rip Capacity | 1250 mm | 900mm |
| Height of Cut | 70 mm | 70mm |
| Main Saw Size | 300 x 30mm | 300 x 30mm |
| Speed of main Saw Blade | 4500/6000rpm | 6000rpm |
| Electric Motor For Main Saw | 4LW | 3KW |
| Scoring Saw Size | 120x20mm | 120x20mm |
| Speed of Scoring Saw | 8000rpm | 8000rpm |
| Electric Motor For Scoring Saw | 0.75kw | 0.75kw |
FAQs
Frequently Asked Questions
What is a Panel Saw Machine used for?
The Panel Saw Machine is intended for sizing large board panels into rectangular components. It is arranged around plywood, MDF, particle board, and laminated panels, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Panel Saw Machine?
The machine guides a circular saw through supported sheet material. Its broad panel support with straight guided cutting supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Panel Saw Machine?
It is primarily associated with plywood, MDF, particle board, and laminated panels. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Panel Saw Machine?
Typical users include furniture factories, cabinet shops, and interior fit-out. In these settings, the Panel Saw Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Panel Saw Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Panel Saw Machine be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Panel Saw Machine price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Panel Saw Machine.
